Part 3

A760F AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION UNIT: DISASSEMBLY - Continued

66. REMOVE FRONT PLANETARY GEAR ASSEMBLY





(a) Remove the 1-way clutch inner race and front planetary gear assembly from the case.

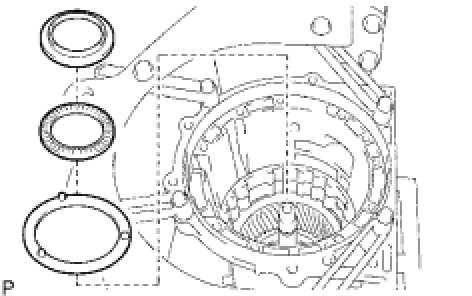

(b) Remove the thrust bearing race, thrust needle roller bearing and No. 2 planetary carrier thrust washer from the front planetary gear assembly.





67. INSPECT FRONT PLANETARY GEAR ASSEMBLY Transmission Unit

68. INSPECT 1-WAY CLUTCH ASSEMBLY Transmission Unit

69. REMOVE FRONT PLANETARY RING GEAR





(a) Remove the front planetary ring gear and thrust needle roller bearing from the transmission case.

70. REMOVE CENTER PLANETARY RING GEAR





(a) Using a screwdriver, remove the snap ring.

(b) Remove the center planetary ring gear and front planetary ring gear flange from the front planetary ring gear.





71. REMOVE NO. 1 BRAKE DISC SET

(a) Remove the flange, 4 discs and 4 plates from the case.

72. INSPECT NO. 1 BRAKE DISC Transmission Unit

73. REMOVE NO. 1 BRAKE PISTON RETURN SPRING SNAP RING





(a) Using a screwdriver, remove the No. 1 brake piston return spring snap ring from the case.

74. REMOVE NO. 1 BRAKE PISTON RETURN SPRING SUB-ASSEMBLY





(a) Remove the brake piston return spring and No. 1 brake piston with No. 1 brake cylinder from the case.

75. INSPECT BRAKE PISTON RETURN SPRING SUB-ASSEMBLY Transmission Unit

76. REMOVE NO. 1 BRAKE PISTON

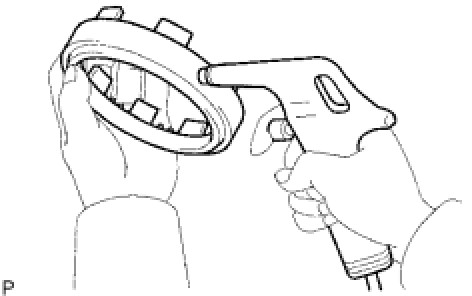

(a) Hold the No. 1 brake cylinder and apply compressed air (392 kPa (4.0 kgf/cm2, 57 psi)) to the No. 1 brake cylinder to remove the No. 1 brake piston.

HINT
If the piston does not pop out with compressed air, lift the piston out with needle-nose pliers.

(b) Remove the 2 O-rings from the No. 1 brake piston.

77. REMOVE NO. 2 BRAKE DISC SET





(a) Using a screwdriver, remove the snap ring from the case.

(b) Remove the flange, 4 discs, 4 plates and brake piston return spring from the case.

78. INSPECT NO. 2 BRAKE DISC Transmission Unit

79. INSPECT NO. 2 BRAKE PISTON RETURN SPRING SUB-ASSEMBLY Transmission Unit

80. REMOVE NO. 2 BRAKE PISTON

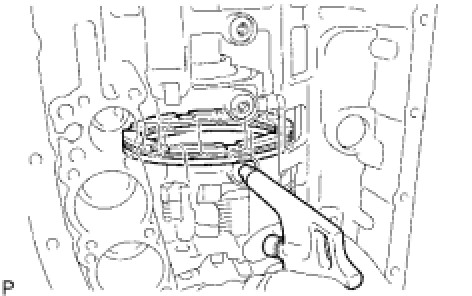

(a) Hold the No. 2 brake piston and apply compressed air (392 kPa, 4.0 kgf/cm2, 57 psi) to the transmission case to remove the No. 2 brake piston and No. 2 brake cylinder.

HINT
If the piston does not pop out with compressed air, lift the piston out with needle-nose pliers.

(b) Remove the 2 O-rings from the No. 2 brake piston.

81. REMOVE CENTER PLANETARY GEAR ASSEMBLY





(a) Remove the thrust bearing race, center planetary gear and planetary sun gear from the case.

82. INSPECT CENTER PLANETARY GEAR ASSEMBLY Transmission Unit

83. REMOVE INTERMEDIATE SHAFT

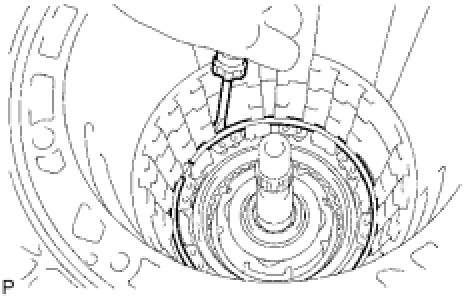

(a) Using a screwdriver, remove the snap ring from the case.

(b) Remove the intermediate shaft with No. 3 1-way clutch assembly from the case.





84. INSPECT NO. 3 1-WAY CLUTCH ASSEMBLY Transmission Unit

85. REMOVE NO. 3 1-WAY CLUTCH ASSEMBLY

(a) Remove the No. 3 1-way clutch assembly and 1-way clutch inner race from the intermediate shaft.





86. REMOVE REAR PLANETARY RING GEAR FLANGE SUB-ASSEMBLY





(a) Remove the planetary ring gear flange together with the rear planetary ring gear, thrust bearing race, thrust needle roller bearing and thrust bearing race from the intermediate shaft.

(b) Using a screwdriver, remove the snap ring.





(c) Remove the rear planetary ring gear flange from the rear planetary ring gear.

87. INSPECT REAR PLANETARY RING GEAR FLANGE SUB-ASSEMBLY Transmission Unit

88. INSPECT INTERMEDIATE SHAFT Transmission Unit

89. REMOVE BRAKE PLATE STOPPER SPRING





90. REMOVE NO. 4 BRAKE DISC SET

(a) Remove the 2 flanges, 8 discs and 7 plates from the case.

91. INSPECT NO. 4 BRAKE DISC Transmission Unit

92. REMOVE REAR PLANETARY GEAR ASSEMBLY





(a) Remove the rear planetary gear assembly from the case.

(b) Remove the thrust needle roller bearing from the rear planetary gear.





(c) Remove the thrust bearing race from the case.





93. INSPECT REAR PLANETARY GEAR ASSEMBLY Transmission Unit

94. REMOVE 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY

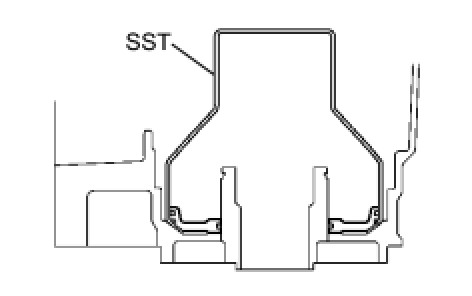

(a) Place SST on the spring retainer and compress the brake return spring.

SST : 09350-30020

09350-07050

(b) Using SST, remove the snap ring and brake return spring.

SST : 09350-30020

09350-07070

Text in Illustration





95. INSPECT 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY Transmission Unit

96. REMOVE 1ST AND REVERSE BRAKE PISTON

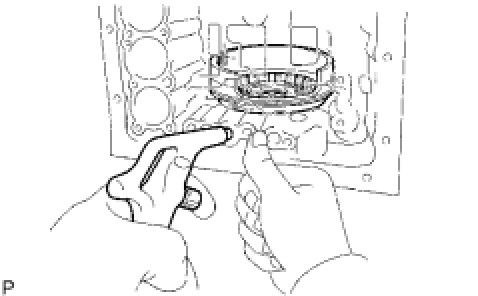

(a) Apply compressed air (392 kPa, 4.0 kgf/cm2, 57 psi) to the transmission case to remove the 1st and reverse brake piston.

HINT
If the piston does not pop out with compressed air, lift the piston out with needle-nose pliers.

(b) Remove the O-ring from the 1st and reverse brake piston.

97. REMOVE BRAKE REACTION SLEEVE





(a) Using SST, remove the reaction sleeve.

SST : 09350-30020

09350-07080

(b) Remove the 2 O-rings from the reaction sleeve.

98. REMOVE NO. 4 BRAKE PISTON





(a) Using SST, remove the brake piston.

SST : 09350-30020

09350-07090

(b) Remove the 2 O-rings from the brake piston.
