Canada - Instruments - Calibration of Compass
BulletinL-TCI-2986
Issue Date
August 31, 2011
Title:
INITIAL CALIBRATION OF COMPASS DURING PDS
Service Category
General
Section
Pre-Delivery Service
Market
Canada

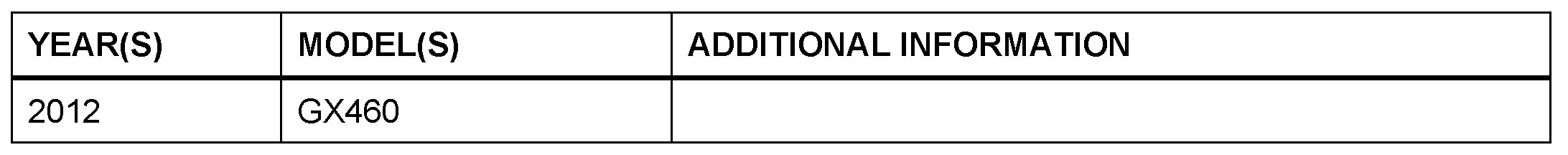

APPLICABILITY:
INTRODUCTION:
Some 2012 model GX460 vehicles are equipped with a compass in the rear view mirror. Use the following procedure to perform initial calibration during Pre-Delivery Service (PDS).

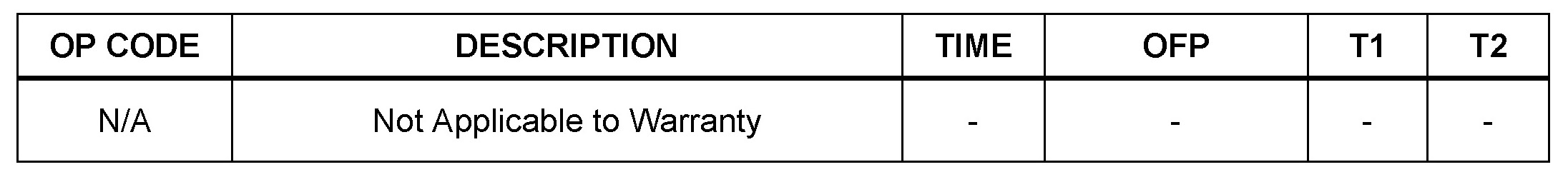

WARRANTY INFORMATION:
CALIBRATION PROCEDURE:

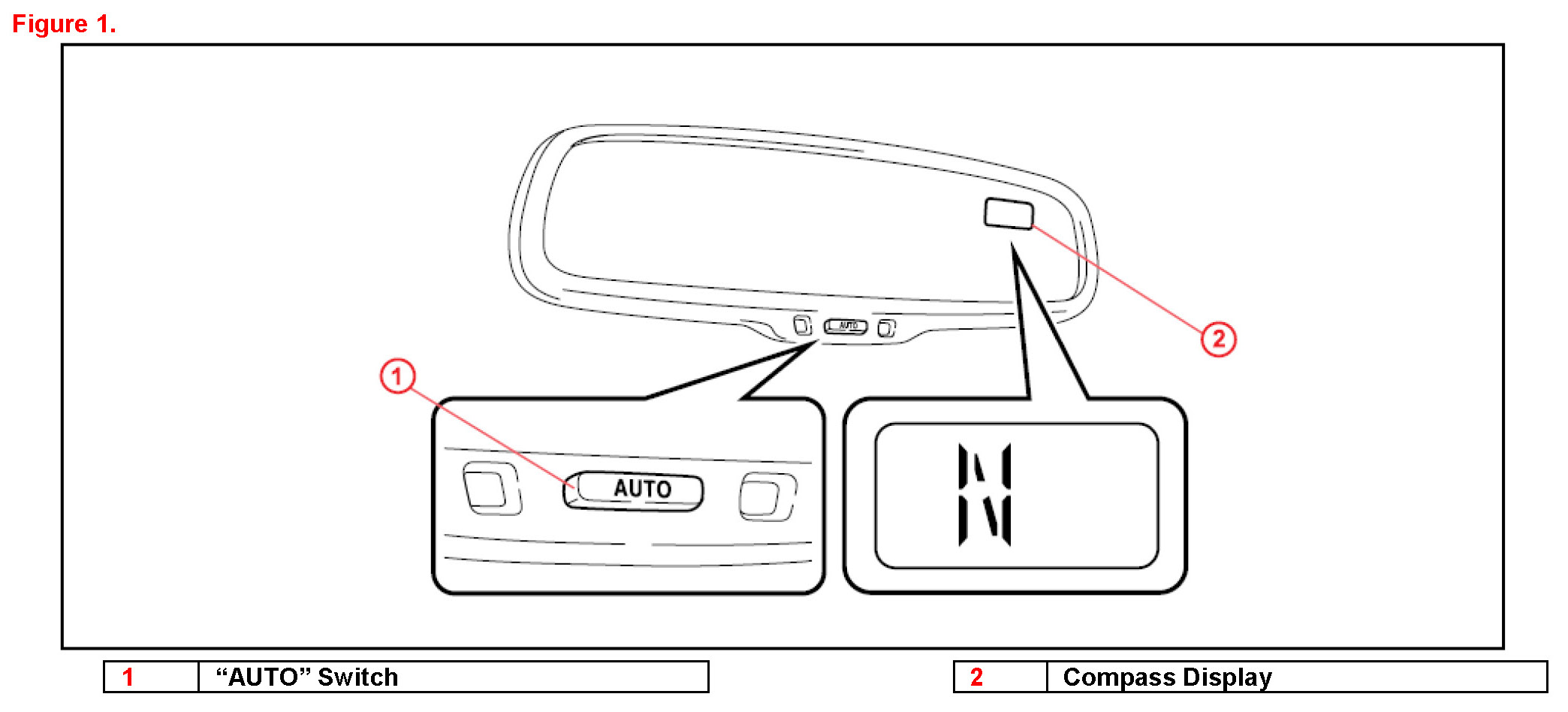

1. Cycle the ignition switch to the "IG-ON" position and hold the "AUTO" switch for 6 seconds until the zone number appears on the compass display.

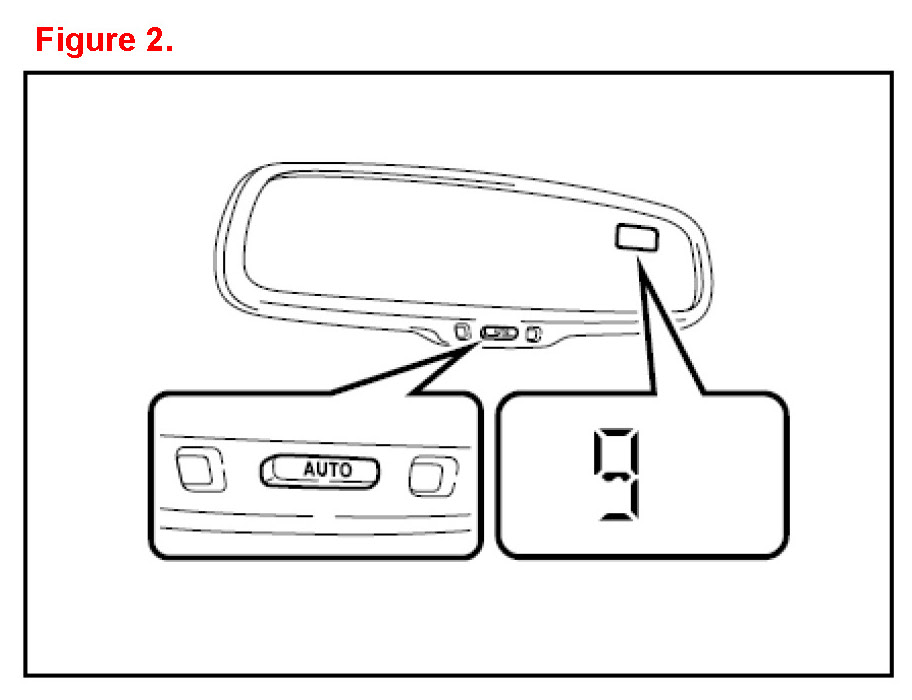

2. Push the "AUTO" switch to select the number of the zone where the vehicle is located.

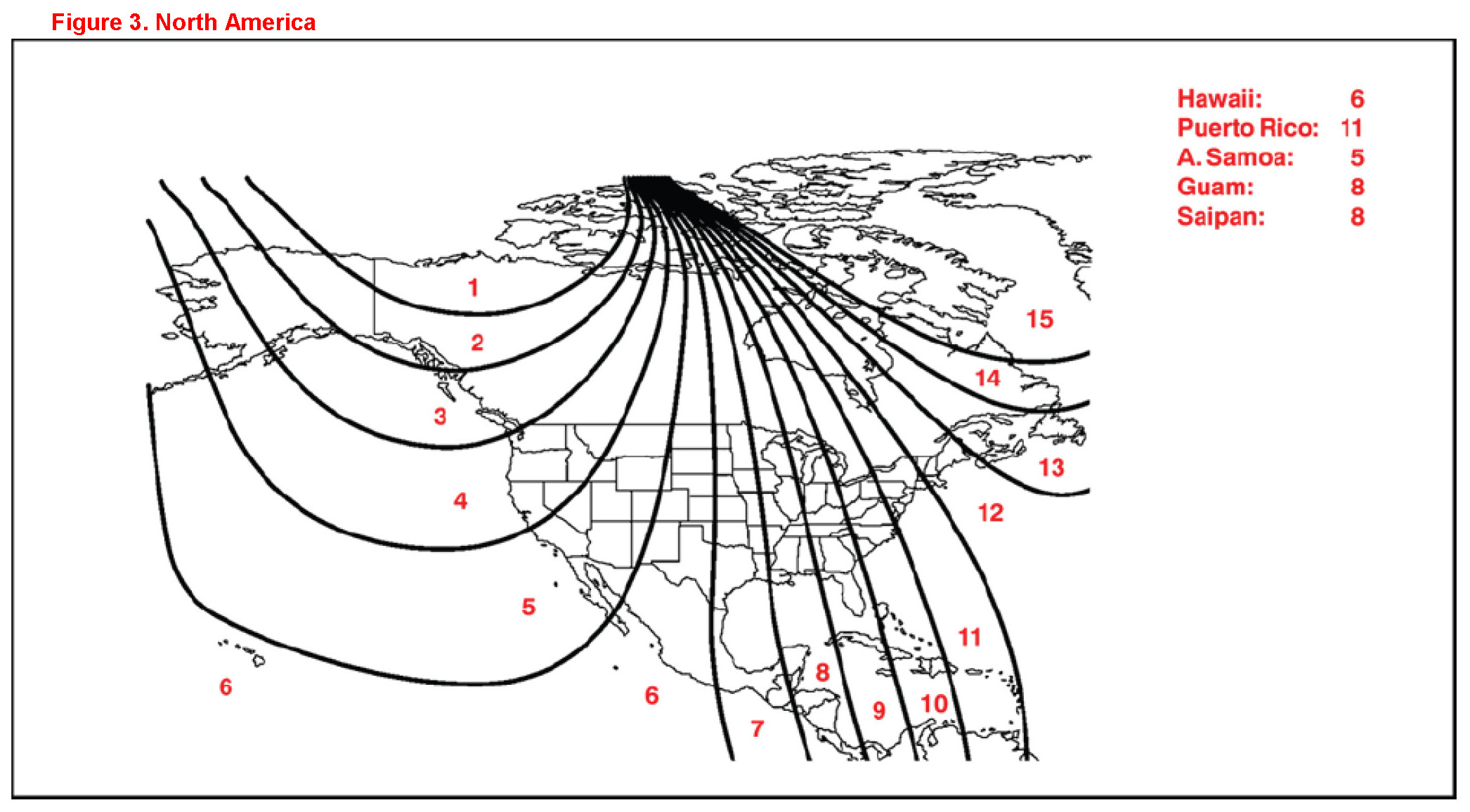

See the map in figure 3 for zone reference.

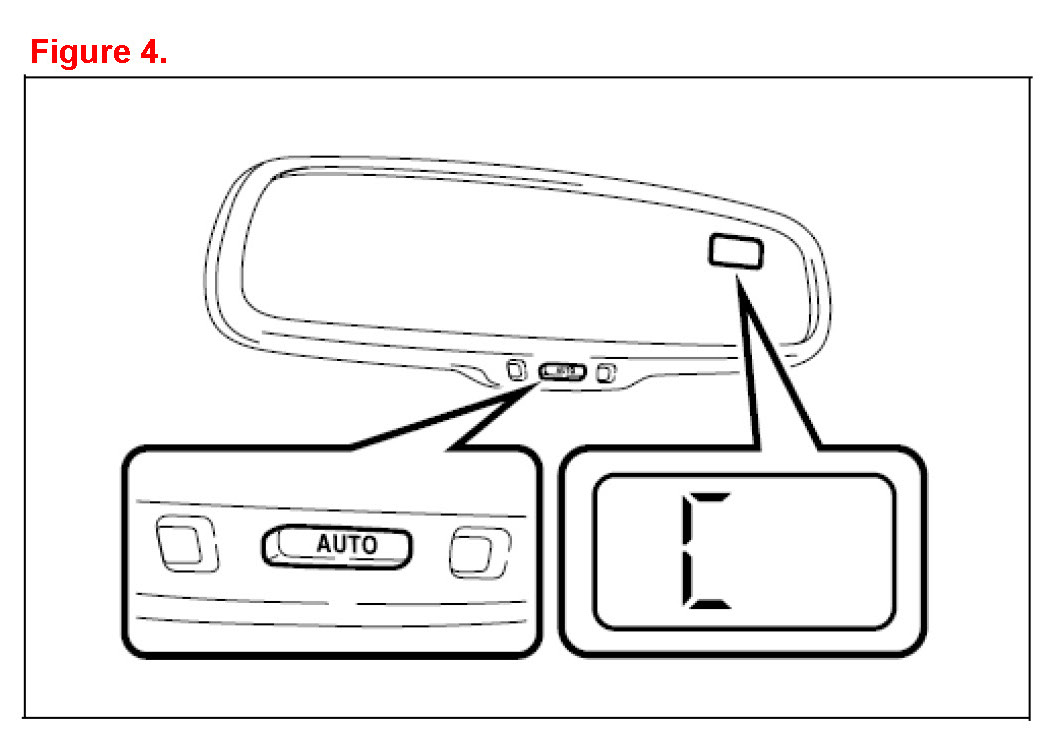

3. Start the engine and push the "AUTO" switch for about 9 seconds until "C" appears on the display.

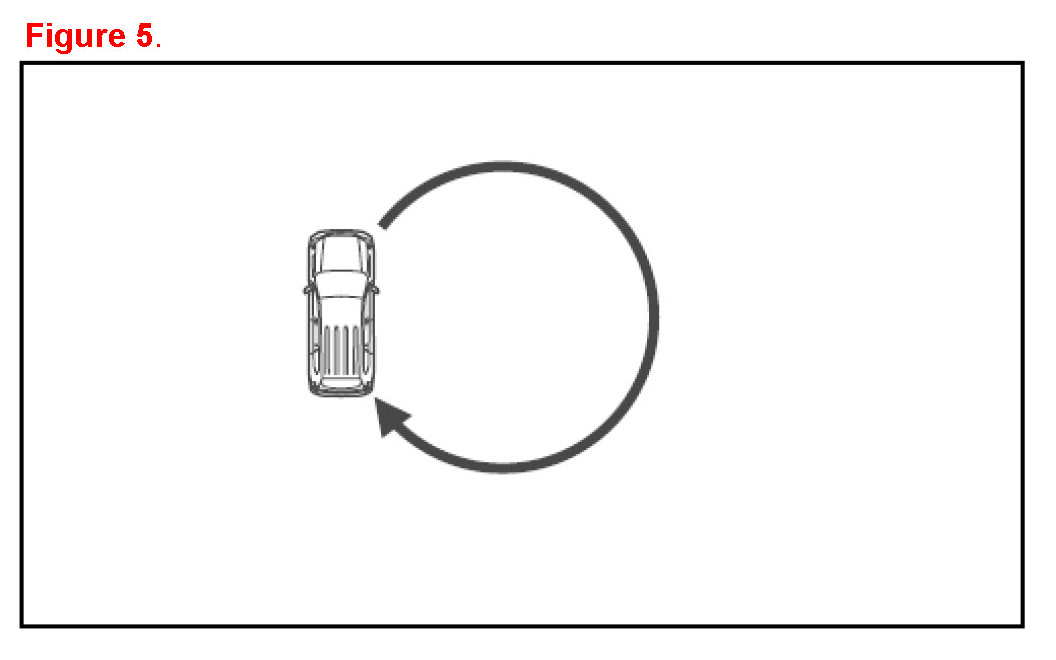

4. Drive the vehicle slowly at 8 km/h (5 mph), or less, in a circle until the direction is displayed. If there is NOT enough space to drive in a circle, drive around the block until the direction is displayed.
Once the direction is displayed, the calibration is complete.
NOTE
- Do NOT perform calibration of the compass in a place where the Earth's magnetic field is subject to interference by artificial magnetic fields (underground parking, under a steel tower, between buildings, roof parking, near a railroad crossing, near a large vehicle, etc.)
- During calibration, do NOT operate electric systems (moon roof, power windows, etc.) as they may interfere with the calibration.
