Home
>>
Lexus Truck
>>
2012
>>
GX 460 V8-4.6L (1UR-FE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Auxiliary Power Outlet
>>
Specifications
>>
Power Outlets (EXT)
>>
Service Data
Service Data
SPECIFICATIONS: POWER OUTLETS (EXT): SERVICE DATA

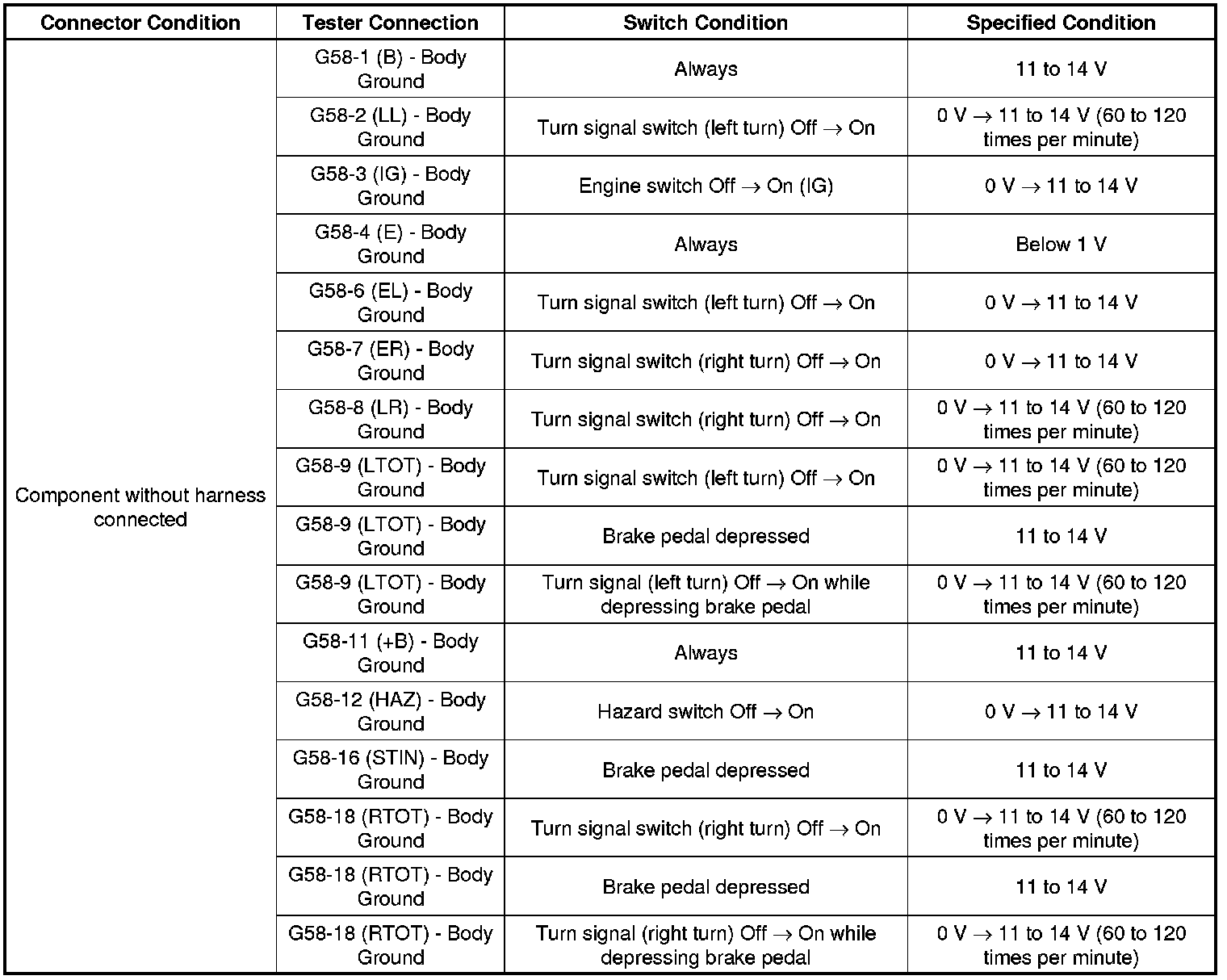

Turn Signal Flasher

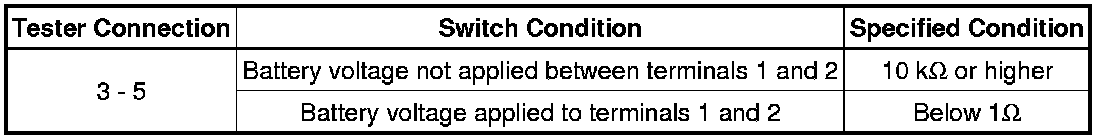

SUB BATTERY RELAY
TOWING TAIL RELAY
