Installation

SUPPLEMENTAL RESTRAINT SYSTEMS: SIDE AIRBAG SENSOR: INSTALLATION

HINT
* Use the same procedure for the RH side and LH side.
* The procedure listed below is for the LH side.

1. INSTALL SIDE AIRBAG SENSOR ASSEMBLY LH

(a) Turn the engine switch off.

(b) Disconnect the cable from the negative (-) battery terminal.

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:
* w/ Navigation System:
After the engine switch is turned off, the display and navigation module display (navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

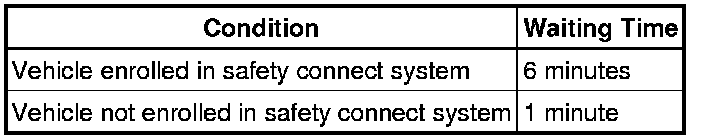

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal





* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

(c) Install the side airbag sensor with the bolt.

Torque : 9.0 Nm (92 kgf-cm, 80 in-lbf)

NOTICE:
* If the side airbag sensor has been dropped, or there are any cracks, dents or other defects in the case, bracket or connector, replace it with a new one.
* When installing the side airbag sensor, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.

(d) Check that the side airbag sensor is not loose.

(e) Connect the connector.

2. INSTALL FRONT DOOR INNER GLASS WEATHERSTRIP LH Reassembly

3. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH Reassembly

4. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY Installation

5. INSTALL FRONT ARMREST ASSEMBLY LH Reassembly

6. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG LH Reassembly

7. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH LH Reassembly

8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

9. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light Diagnosis System.
