Home >> Lexus Truck >> 2012 >> GX 460 V8-4.6L (1UR-FE) >> Repair and Diagnosis >> Powertrain Management >> Locations

Powertrain Management: Locations

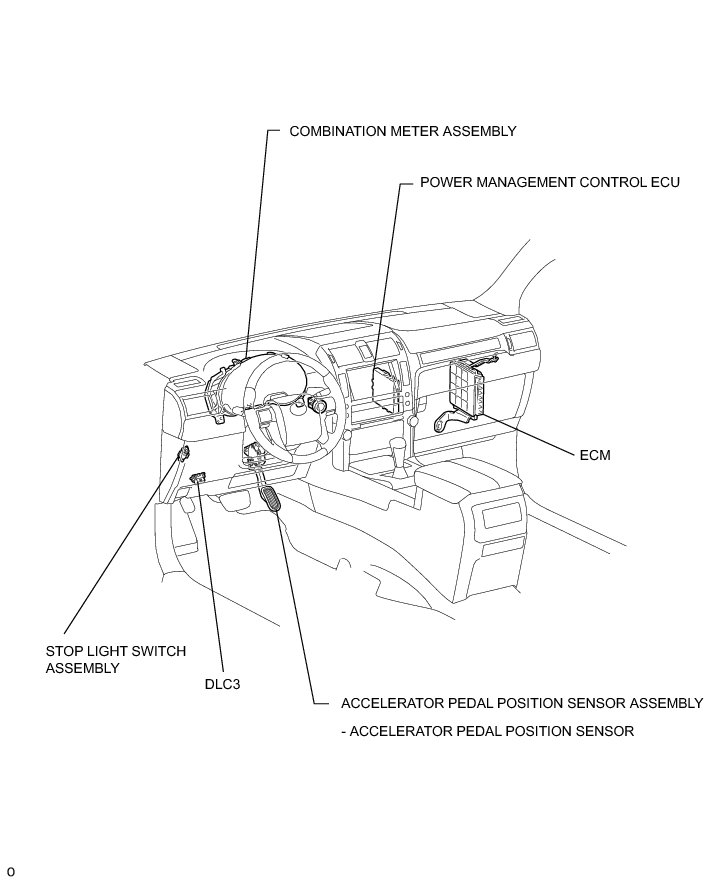

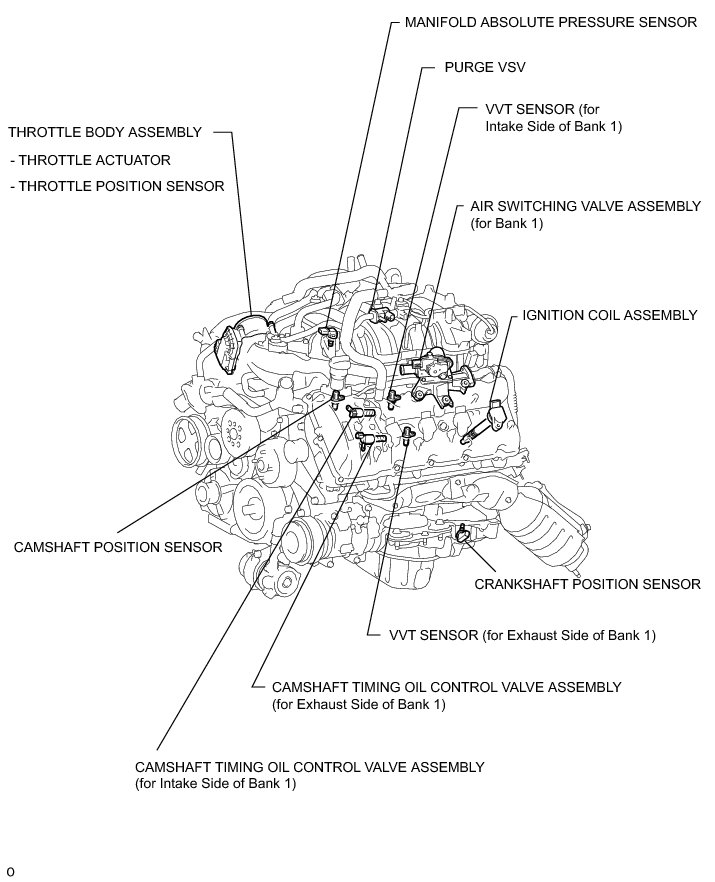

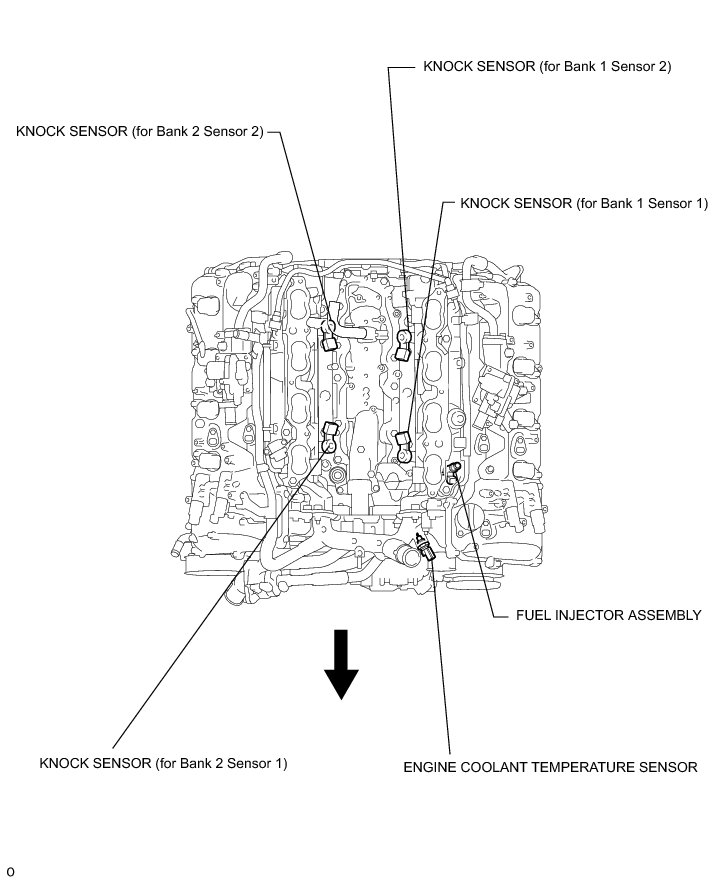

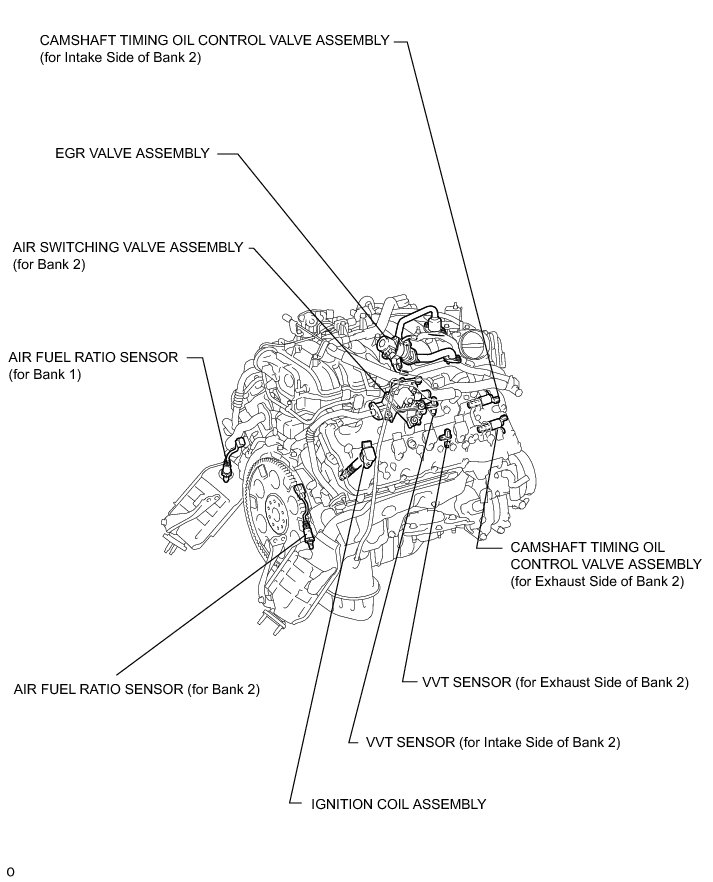

1UR-FE ENGINE CONTROL: SFI SYSTEM: PARTS LOCATION
