Disassembly

BRAKE (REAR): REAR BRAKE: DISASSEMBLY

1. REMOVE CYLINDER BOOT

(a) Using a screwdriver, remove the cylinder boot from the rear disc brake cylinder.





HINT
Tape the screwdriver tip before use.

Text in Illustration

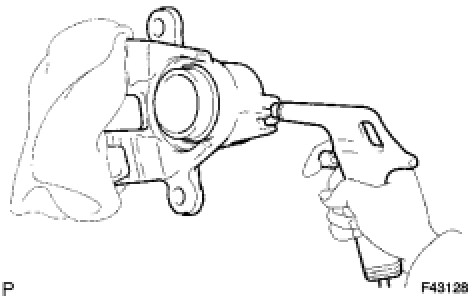

2. REMOVE REAR DISC BRAKE PISTON

(a) Place a cloth or equivalent between the rear disc brake piston and rear disc brake cylinder.





(b) Use compressed air to remove the rear disc brake piston from the rear disc brake cylinder.

CAUTION:
Do not place your fingers in front of the piston when using compressed air.

NOTICE:
Do not spatter the brake fluid.

3. REMOVE PISTON SEAL

(a) Using a screwdriver, remove the piston seal from the rear disc brake cylinder.





HINT
Tape the screwdriver tip before use.

Text in Illustration





NOTICE:
Do not damage the inner cylinder or cylinder groove.

4. REMOVE REAR DISC BRAKE BLEEDER PLUG

(a) Remove the rear disc brake bleeder plug cap and rear disc brake bleeder plug from the rear disc brake cylinder.
