Rear Power Seat Control System
>>
System Diagram
System Diagram

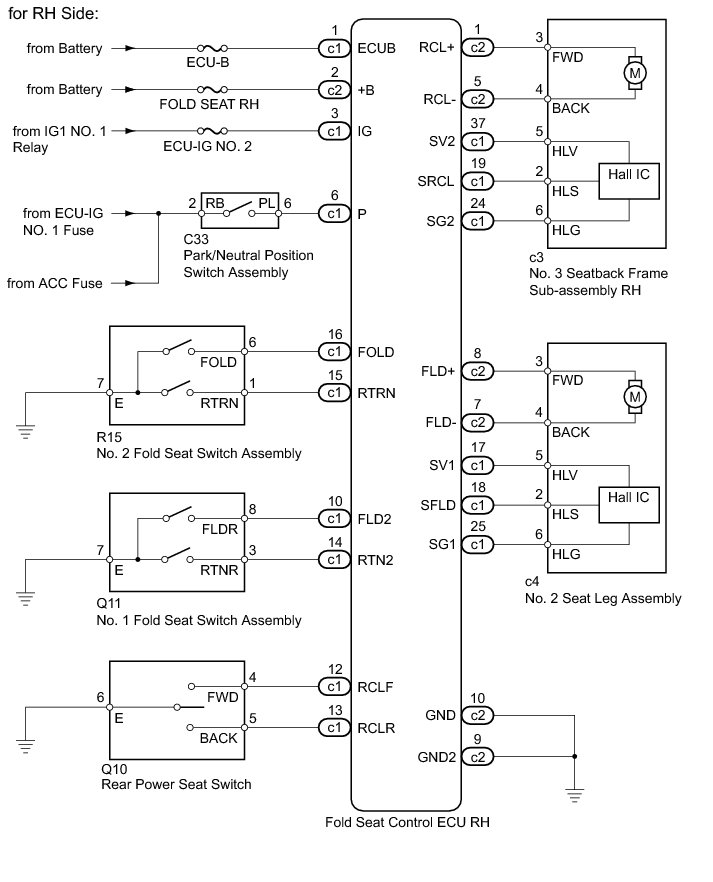

SEAT: REAR POWER SEAT CONTROL SYSTEM: SYSTEM DIAGRAM
