Disassembly

MIRROR (EXT): OUTER REAR VIEW MIRROR: DISASSEMBLY

HINT
* Use the same procedure for the RH and LH sides.
* The procedure listed below is for the LH side.

1. REMOVE OUTER MIRROR LH Removal

2. REMOVE OUTER MIRROR COVER LH





HINT
Be sure to detach the claws of the outer mirror cover in the order shown in the illustration.





(a) Using 2 screwdrivers, detach the 2 claws.

HINT
Tape the screwdriver tip before use.

Text in Illustration





(b) Insert a screwdriver into the slot as shown in the illustration and push on the outer mirror body to create a space between the outer mirror body and outer mirror cover.

NOTICE:
Be careful not to break the ribs.

HINT
Tape the screwdriver tip before use.





Text in Illustration









(c) Insert a moulding remover into the space made between the outer mirror body and outer mirror cover.

NOTICE:
Do not insert the moulding remover more than 4 mm (0.157 in.).

Text in Illustration









(d) Slide the moulding remover downwards as shown in the illustration to detach the 2 claws.

NOTICE:
* Do not insert the moulding remover more than 4 mm (0.157 in.).

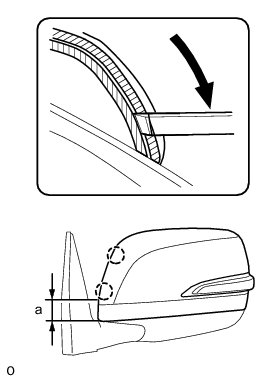

* Do not slide the moulding remover past the point approximately 40 mm (1.57 in.) from the bottom edge of the outer mirror cover as the outer mirror body will become damaged.

Standard:





(e) Remove the moulding remover.

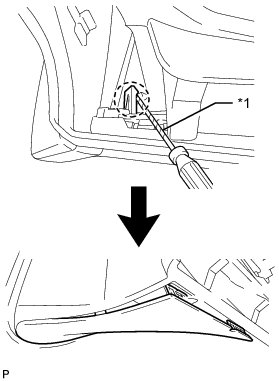

(f) Insert a moulding remover between the outer mirror cover and outer mirror body as shown in the illustration and detach the claw.

Text in Illustration









(g) Using a screwdriver, detach the claw.

HINT
Tape the screwdriver tip before use.

Text in Illustration









(h) Detach the 2 claws and remove the outer mirror cover.

NOTICE:
When removing the cover, be careful not to damage the side turn signal light assembly or cover.

3. REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY LH Removal

4. REMOVE SIDE TELEVISION CAMERA ASSEMBLY (w/ Side Monitor System)





(a) Remove the tape.

Text in Illustration









(b) Remove the screw, detach the 4 claws and remove the rubber base.

HINT
It is not necessary to completely remove the rubber base. Slightly move the rubber base so that the lower mirror cover can be removed in a later step.

(c) Remove the lower mirror cover.





(1) Put protective tape around the lower mirror cover.

Text in Illustration









(2) Using a screwdriver, detach the claw.

HINT
Tape the screwdriver tip before use.

Text in Illustration









(3) Using a screwdriver, detach the claw.

HINT
Tape the screwdriver tip before use.

Text in Illustration

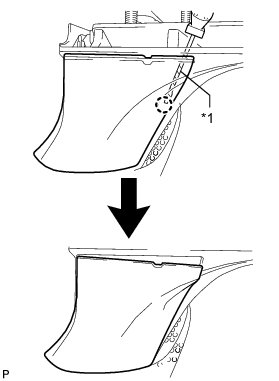

(4) Using a screwdriver, detach the claw to create a space between the lower mirror cover and mirror body as shown in the illustration.

HINT
Tape the screwdriver tip before use.

Text in Illustration









(5) Insert a screwdriver as shown in the illustration.

HINT
Tape the screwdriver tip before use.

Text in Illustration









(6) Detach the claw to create a space between the lower mirror cover and mirror body as shown in the illustration.

HINT
Tape the screwdriver tip before use.

Text in Illustration









(7) While moving the lower mirror cover back and forth in the directions of the arrows in the illustration, detach the 3 claws and remove the lower mirror cover.





(d) Using a T25 "TORX" socket wrench, remove the 3 screws.





(e) Remove the 5 screws.





(f) Using a moulding remover, open the mirror body as shown in the illustration.

(g) Using a moulding remover, detach the 2 claws.

NOTICE:
Be careful not to break the claw shown in the part of the illustration labeled A.

(h) Using a screwdriver, disconnect the connector.





NOTICE:
When disconnecting the connector, be careful not to damage it.

HINT
Tape the screwdriver tip before use.

Text in Illustration









(i) Remove the 3 screws and side television camera.
