Mechanical Specifications





SPECIFICATIONS: INTERIOR PANELS / TRIM: TORQUE SPECIFICATIONS

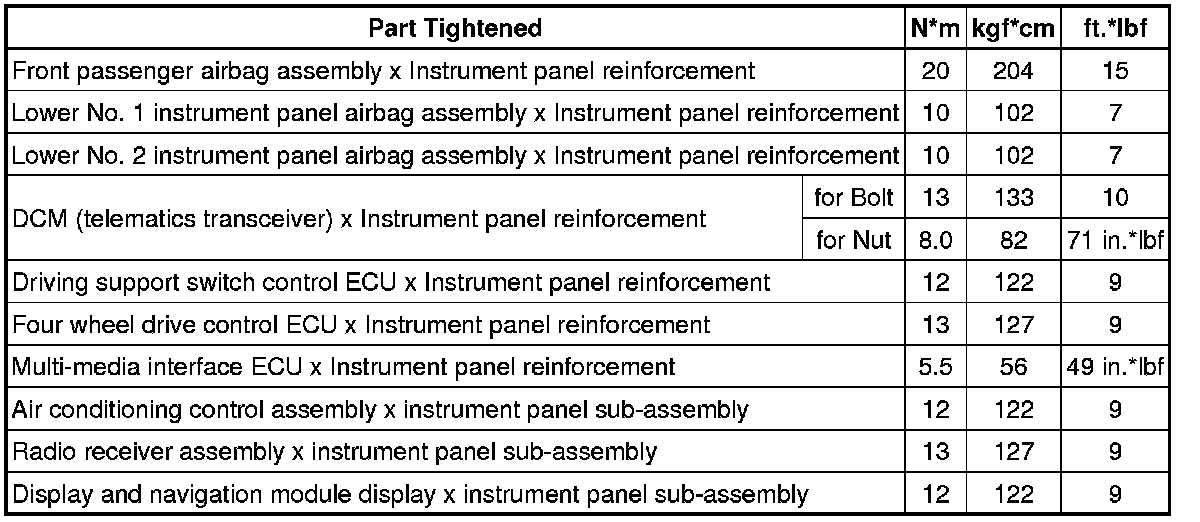

INSTRUMENT PANEL SAFETY PAD





FRONT CONSOLE BOX (w/ Refrigerated Cool Box)





ROOF HEADLINING
