Home >> Lexus Truck >> 2012 >> GX 460 V8-4.6L (1UR-FE) >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Console >> Service and Repair >> Removal and Replacement >> Front Console Box (w/ Refrigerated Cool Box) >> Components

Components

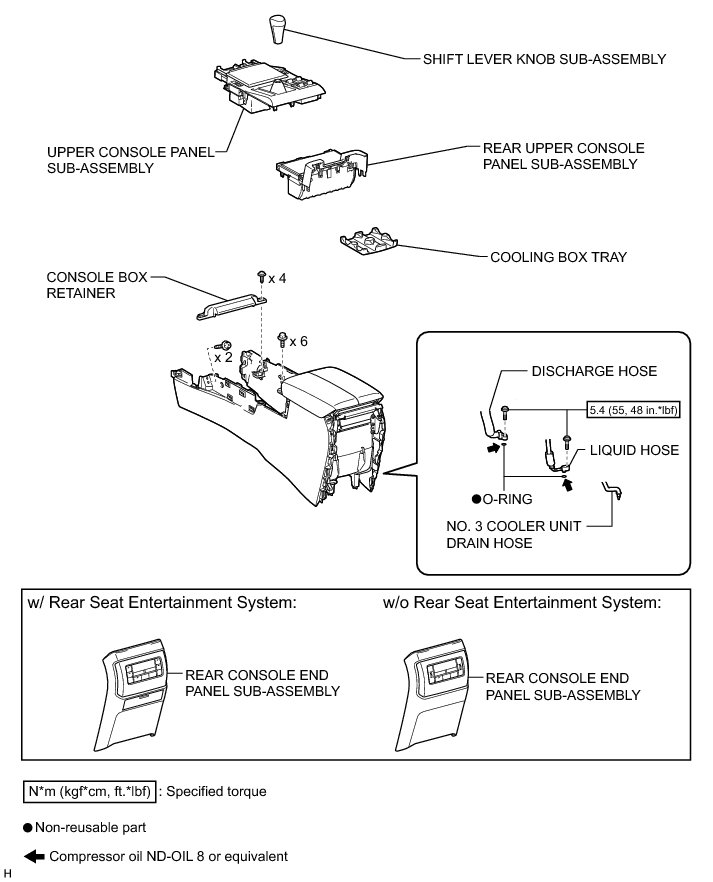

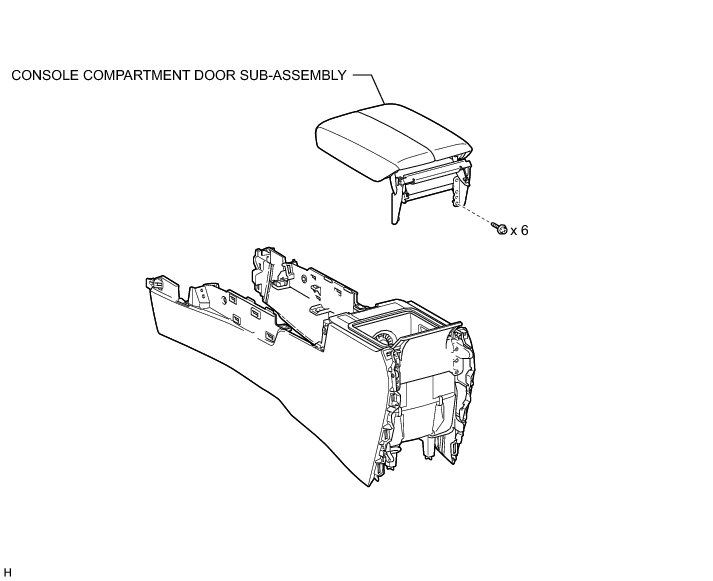

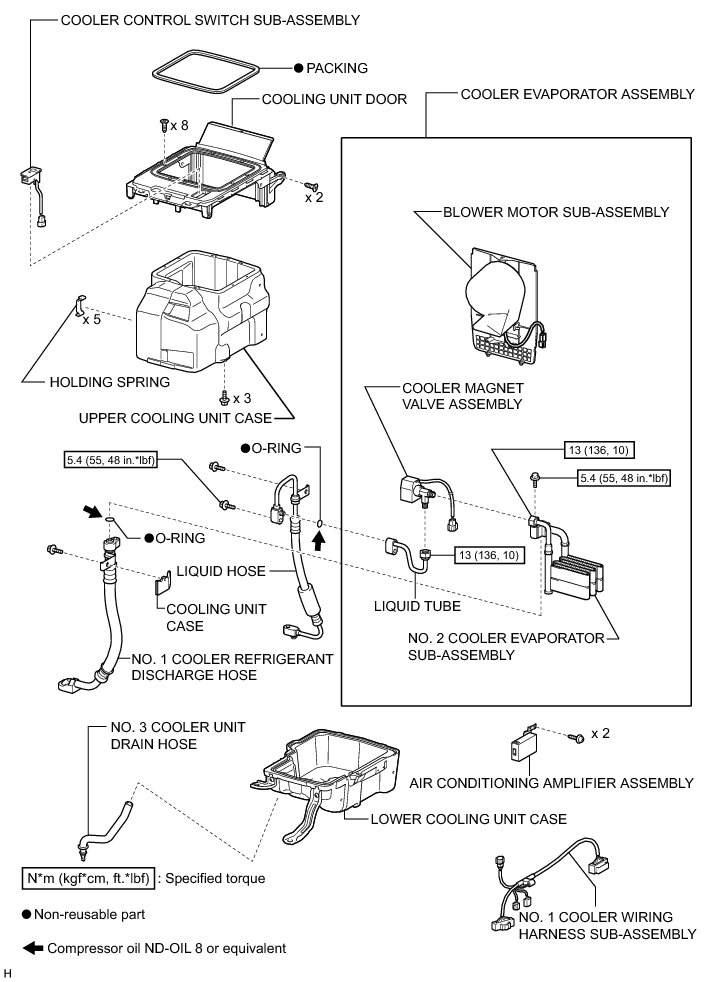

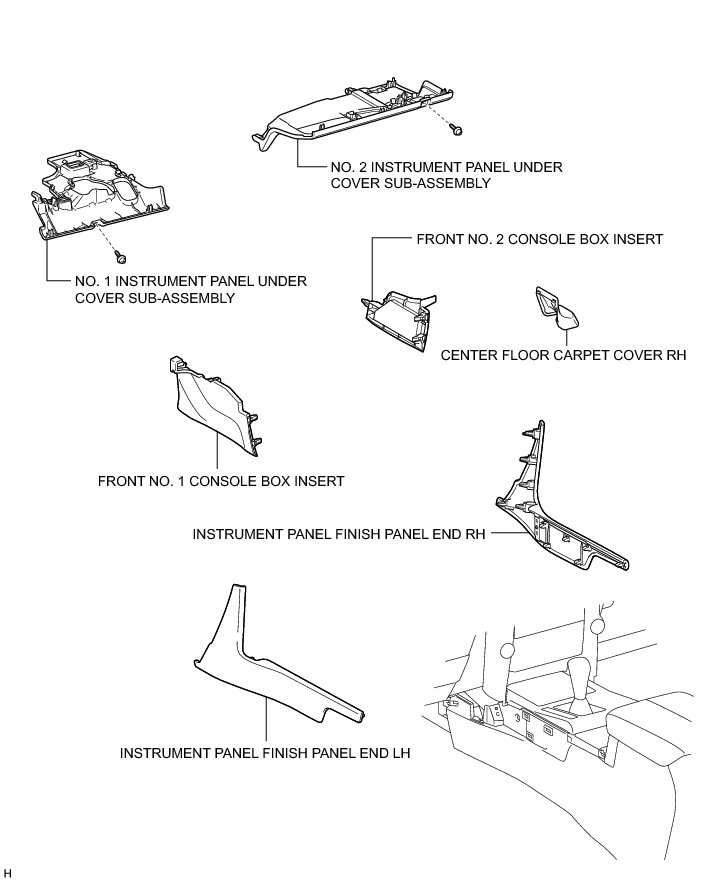

INTERIOR PANELS / TRIM: FRONT CONSOLE BOX (w/ Refrigerated Cool Box): COMPONENTS
