Disassembly

EXTERIOR PANELS / TRIM: FRONT BUMPER: DISASSEMBLY

1. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET





(a) Remove the 2 screws and front bumper extension mounting bracket.

2. REMOVE FRONT SPOILER LH





(a) Turn the retainers 90° and remove the 2 lower front bumper retainers and front spoiler.

3. REMOVE FRONT SPOILER RH

HINT
Use the same procedure described for the LH side.

4. REMOVE TYPE 1 HEADLIGHT WASHER NOZZLE SUB-ASSEMBLY LH (w/ Headlight Cleaner System) Removal

5. REMOVE TYPE 1 HEADLIGHT WASHER NOZZLE SUB-ASSEMBLY RH (w/ Headlight Cleaner System)

HINT
Use the same procedure described for the LH side.

6. REMOVE HEADLIGHT CLEANER HOSE (w/ Headlight Cleaner System) Removal

7. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH (w/ Headlight Cleaner System) Removal

8. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH (w/ Headlight Cleaner System)

HINT
Use the same procedure described for the LH side.

9. REMOVE NO. 2 ENGINE ROOM WIRE

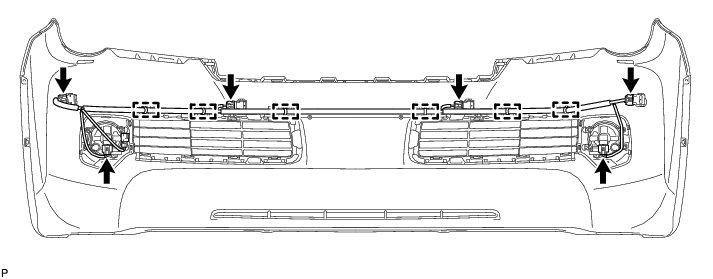

(a) w/ Intuitive Parking Assist System:

(1) Disconnect the 6 connectors.

(2) Detach the 6 clamps and remove the No. 2 engine room wire.

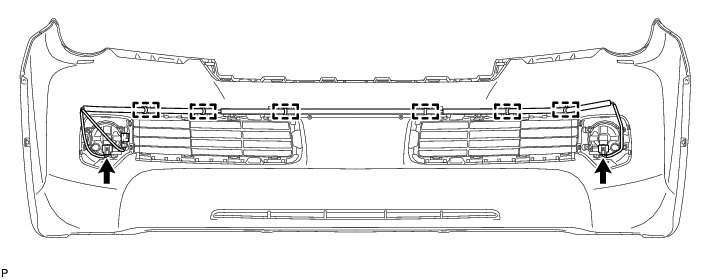

(b) w/o Intuitive Parking Assist System:

(1) Disconnect the 2 connectors.

(2) Detach the 6 clamps and remove the No. 2 engine room wire.





10. REMOVE NO. 1 ULTRASONIC SENSOR (w/ Intuitive Parking Assist System) Removal

11. REMOVE NO. 1 ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System) Removal

12. REMOVE FOG LIGHT ASSEMBLY LH Removal

13. REMOVE FOG LIGHT ASSEMBLY RH

HINT
Use the same procedure described for the LH side.

14. REMOVE FRONT BUMPER HOLE COVER ASSEMBLY LH





(a) Detach the 3 claws and 2 guides and remove the front bumper hole cover.

15. REMOVE FRONT BUMPER HOLE COVER ASSEMBLY RH

HINT
Use the same procedure described for the LH side.

16. REMOVE LOWER RADIATOR GRILLE LH





(a) Detach the 8 claws and remove the lower radiator grille.

17. REMOVE LOWER RADIATOR GRILLE RH

HINT
Use the same procedure described for the LH side.
