Driver / Vehicle Information Display Switch: Testing and Inspection

METER / GAUGE / DISPLAY: TRIP SWITCH: INSPECTION

1. INSPECT TRIP SWITCH

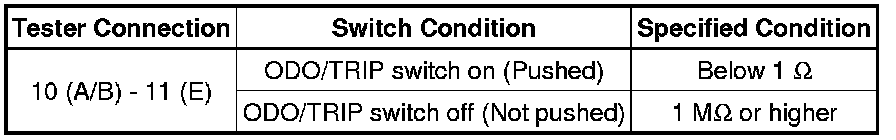

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





If the result is not as specified, replace the trip switch.

(b) Inspect the switch illumination.

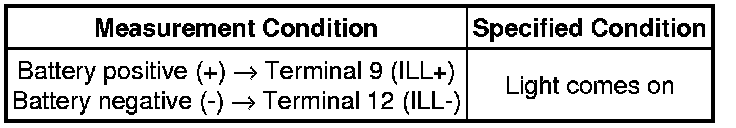

(1) Apply battery voltage between the terminals of the light and check the operation of the light.

OK:





If the result is not as specified, replace the trip switch.
