Heated Glass Element Switch: Testing and Inspection

WINDOW / GLASS: WINDSHIELD DEICER SWITCH: INSPECTION

1. INSPECT FRONT WIPER DEICER SWITCH

(a) Remove the front wiper deicer switch (See page

Removal).

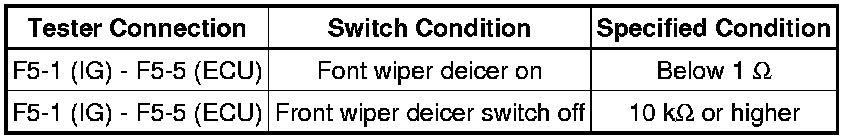

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration
