Home >> Lexus Truck >> 2011 >> RX 350 FWD V6-3.5L (2GR-FE) >> Repair and Diagnosis >> Diagrams >> Components >> Position of Parts In Body

Position of Parts In Body

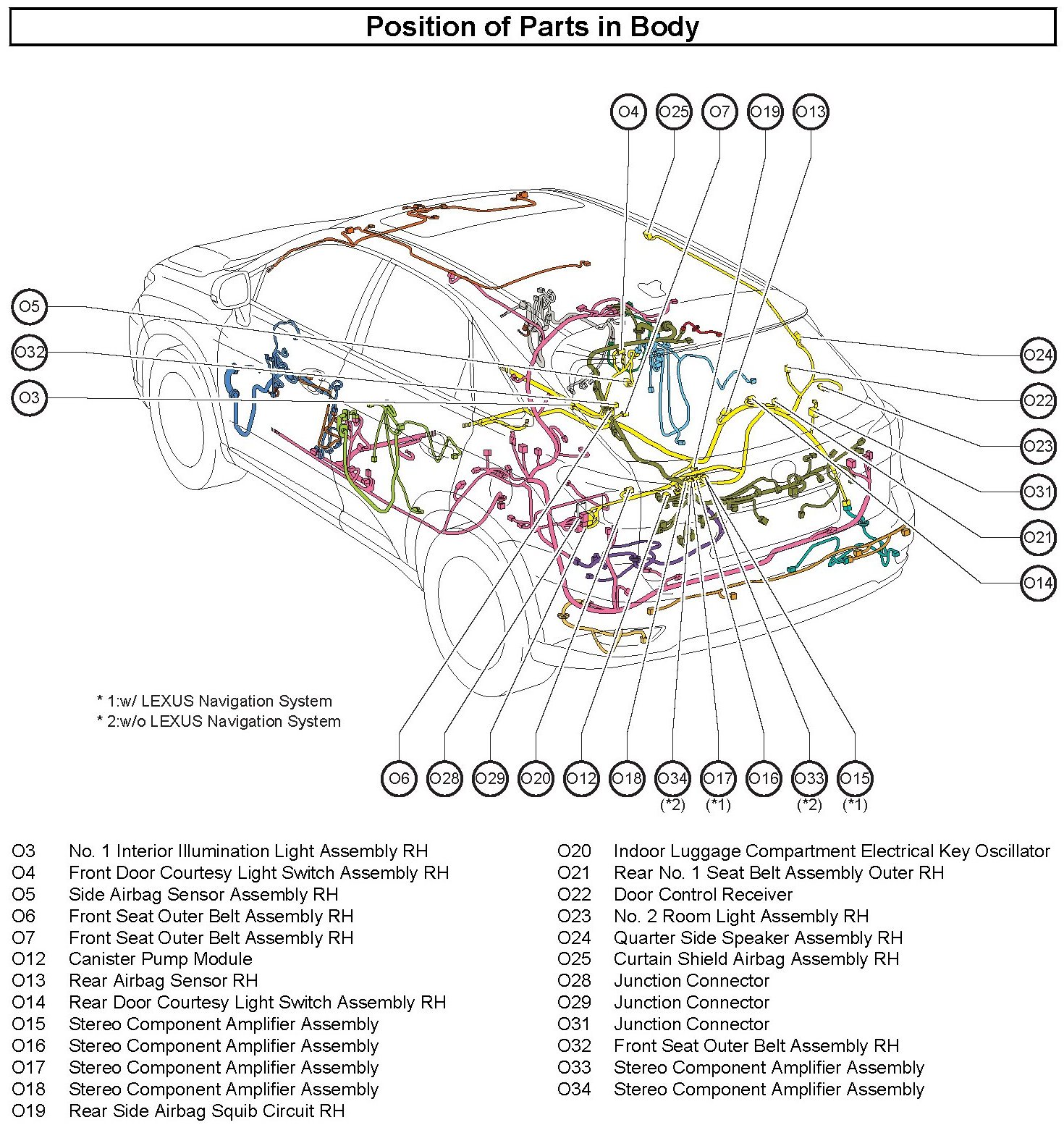

Positions Of Parts In Body:

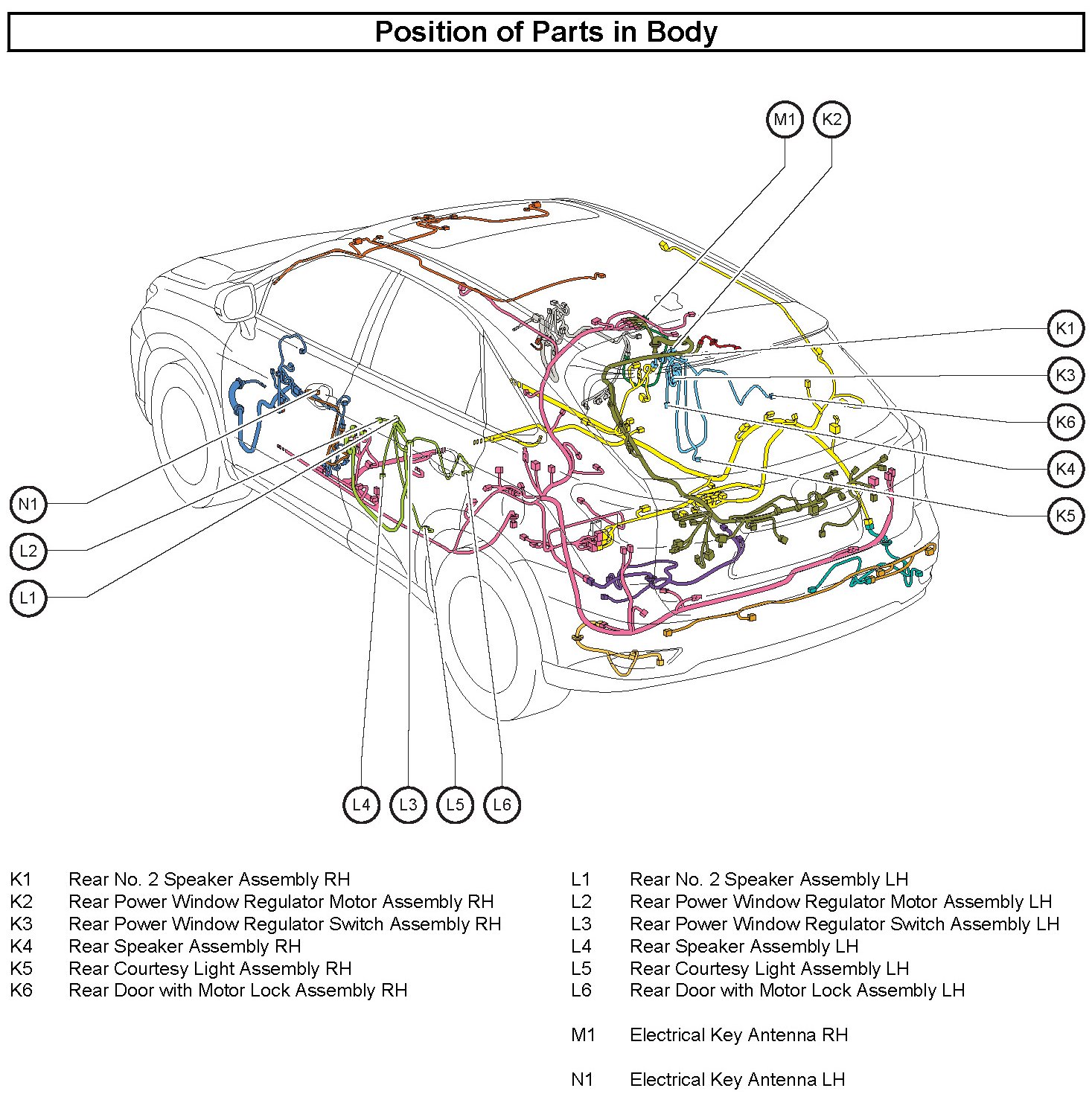

Positions Of Parts In Body:

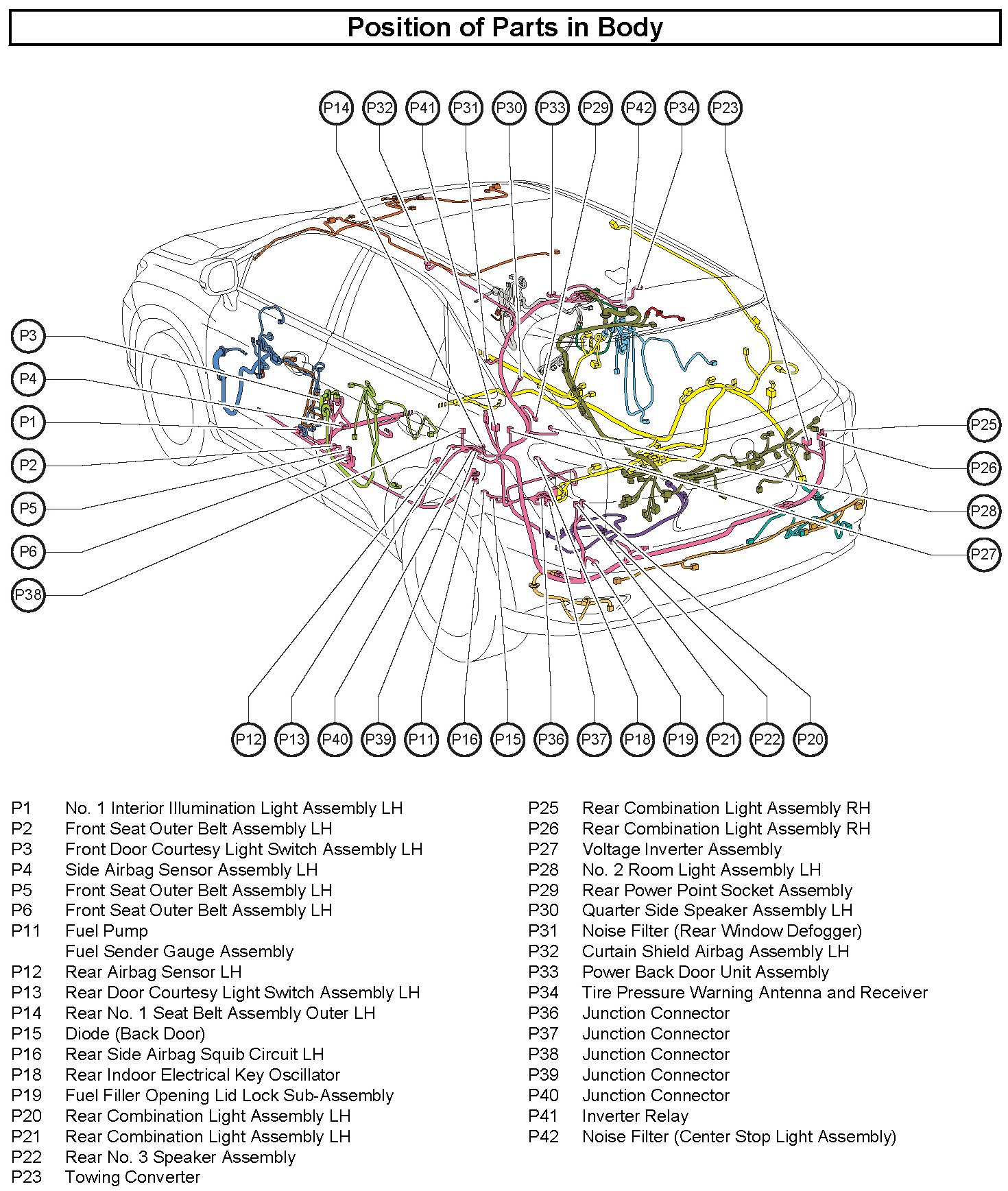

Positions Of Parts In Body:

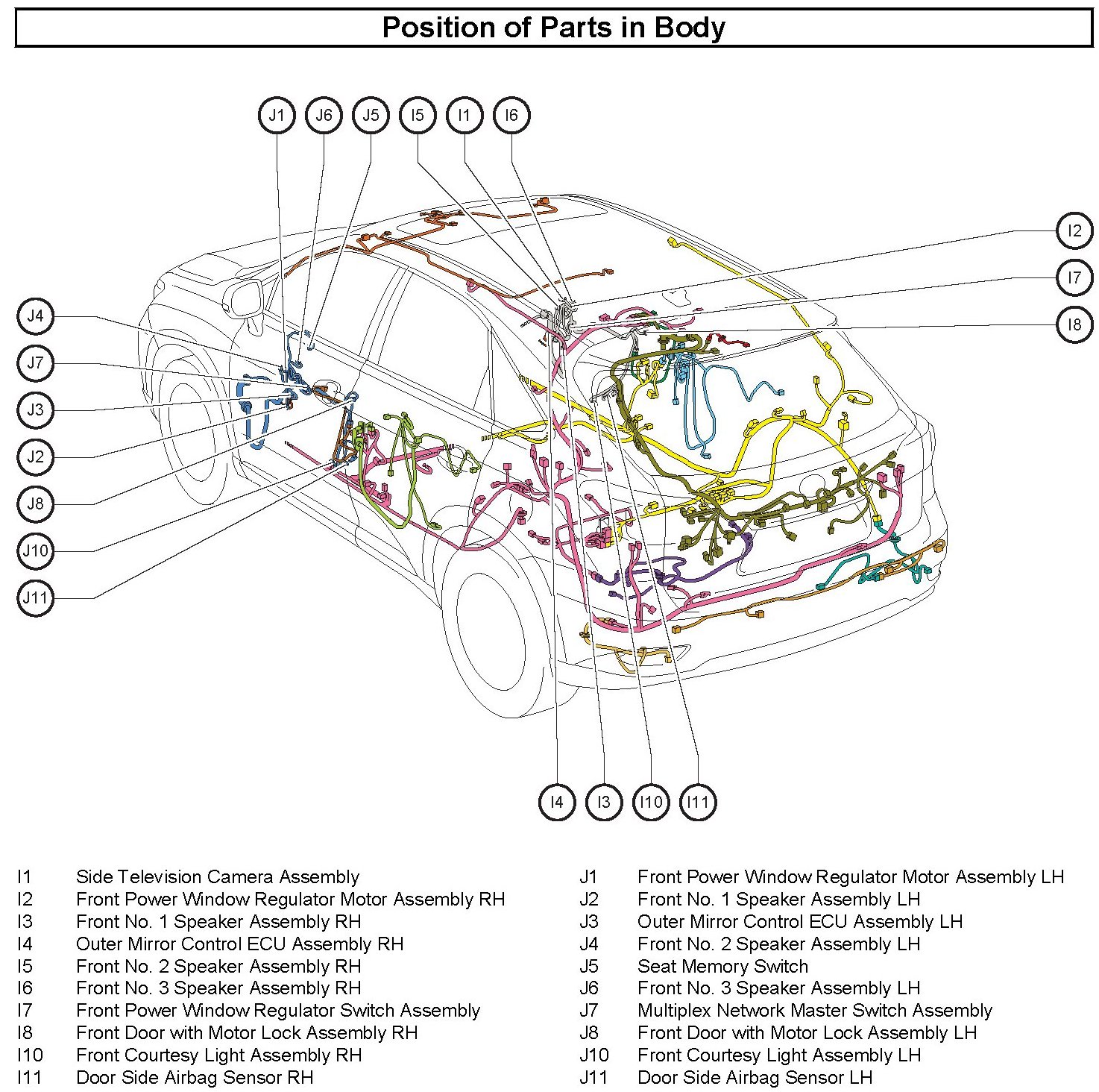

Positions Of Parts In Body:

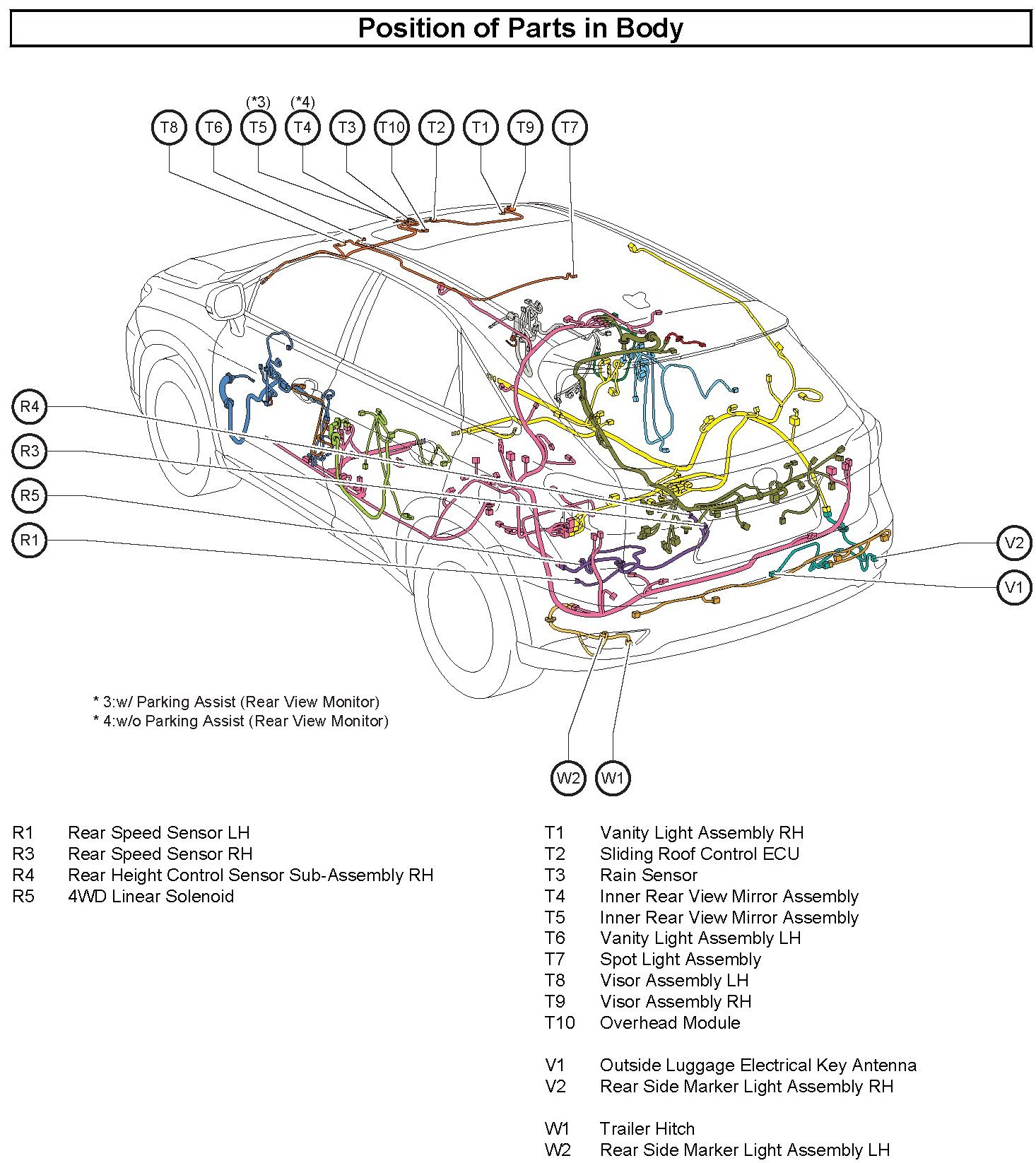

Positions Of Parts In Body:




Positions Of Parts In Body:
