Lexus Truck
>>
2009
>>
RX 350 FWD V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Valve Body
>>
Service and Repair
>>
U151F Automatic Transaxle
>>
Components
Components

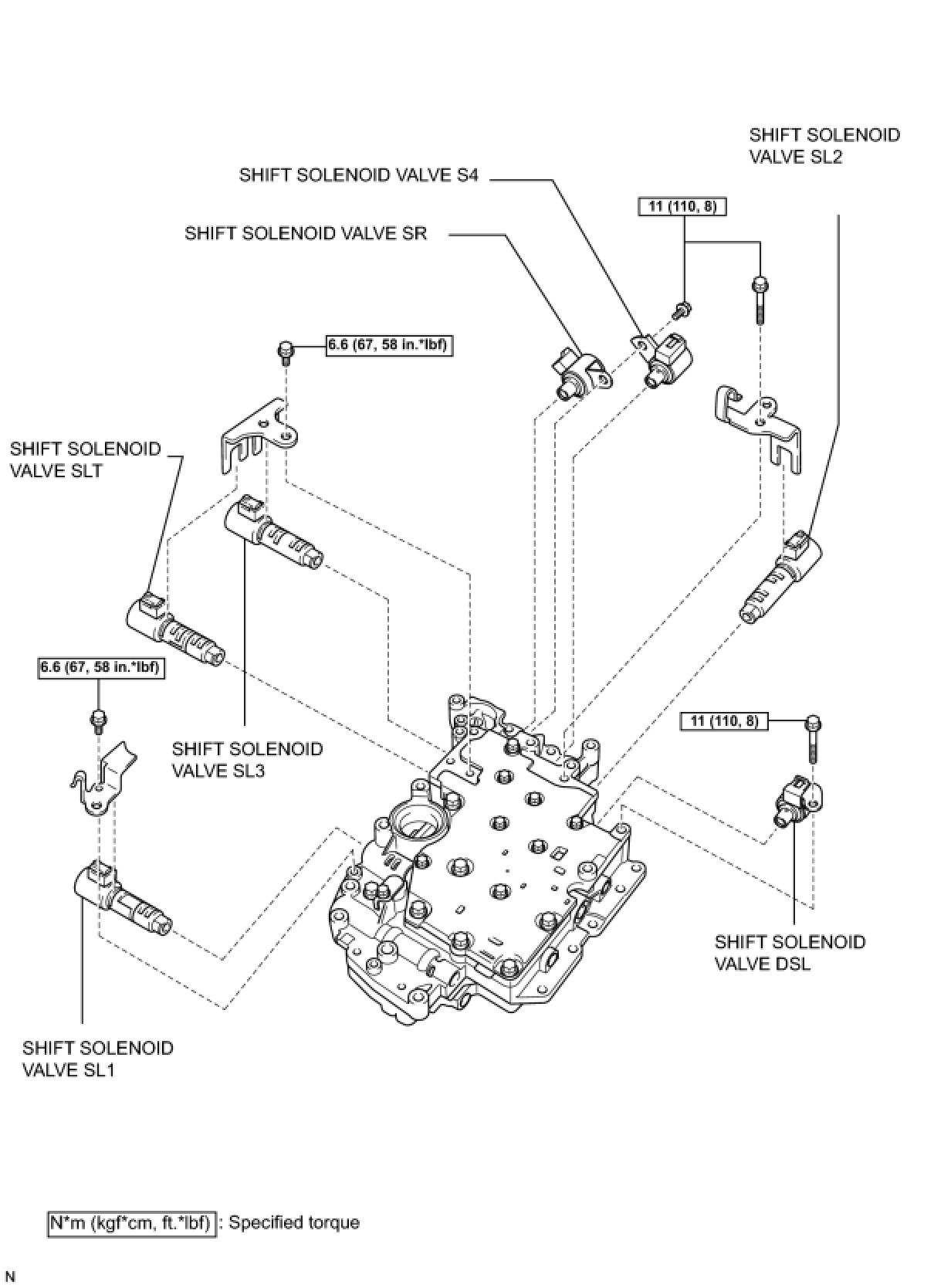

U151F AUTOMATIC TRANSAXLE: VALVE BODY ASSEMBLY: COMPONENTS
COMPONENTS
