Lexus Truck
>>
2009
>>
RX 350 FWD V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Description and Operation
Charging System: Description and Operation
2GR-FE CHARGING:
CHARGING SYSTEM

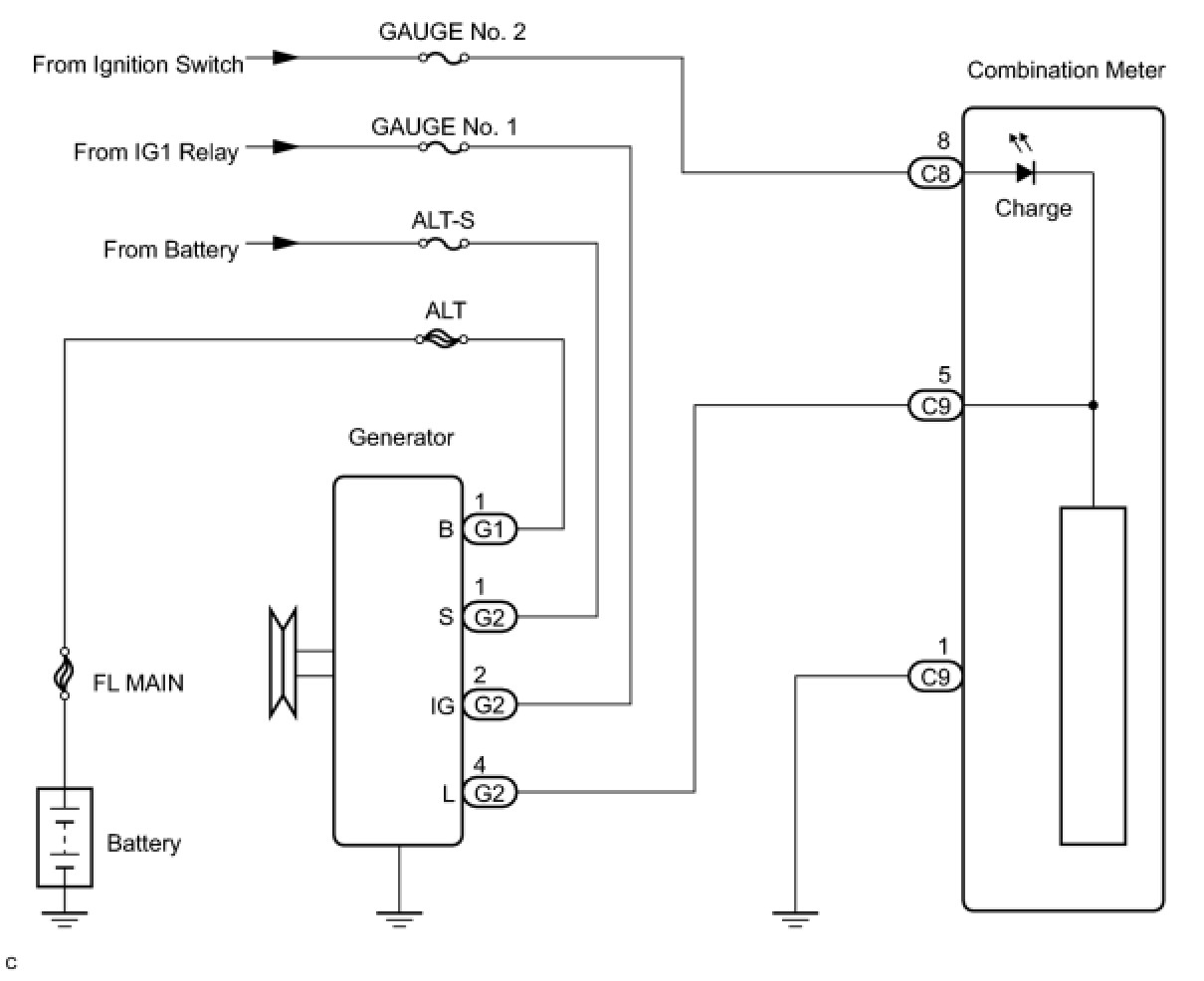

: SYSTEM DIAGRAM
SYSTEM DIAGRAM
