Lexus Truck
>>
2009
>>
RX 350 FWD V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Impact Sensor
>>
Service and Repair
>>
Rear Airbag Sensor
>>
Components
Components

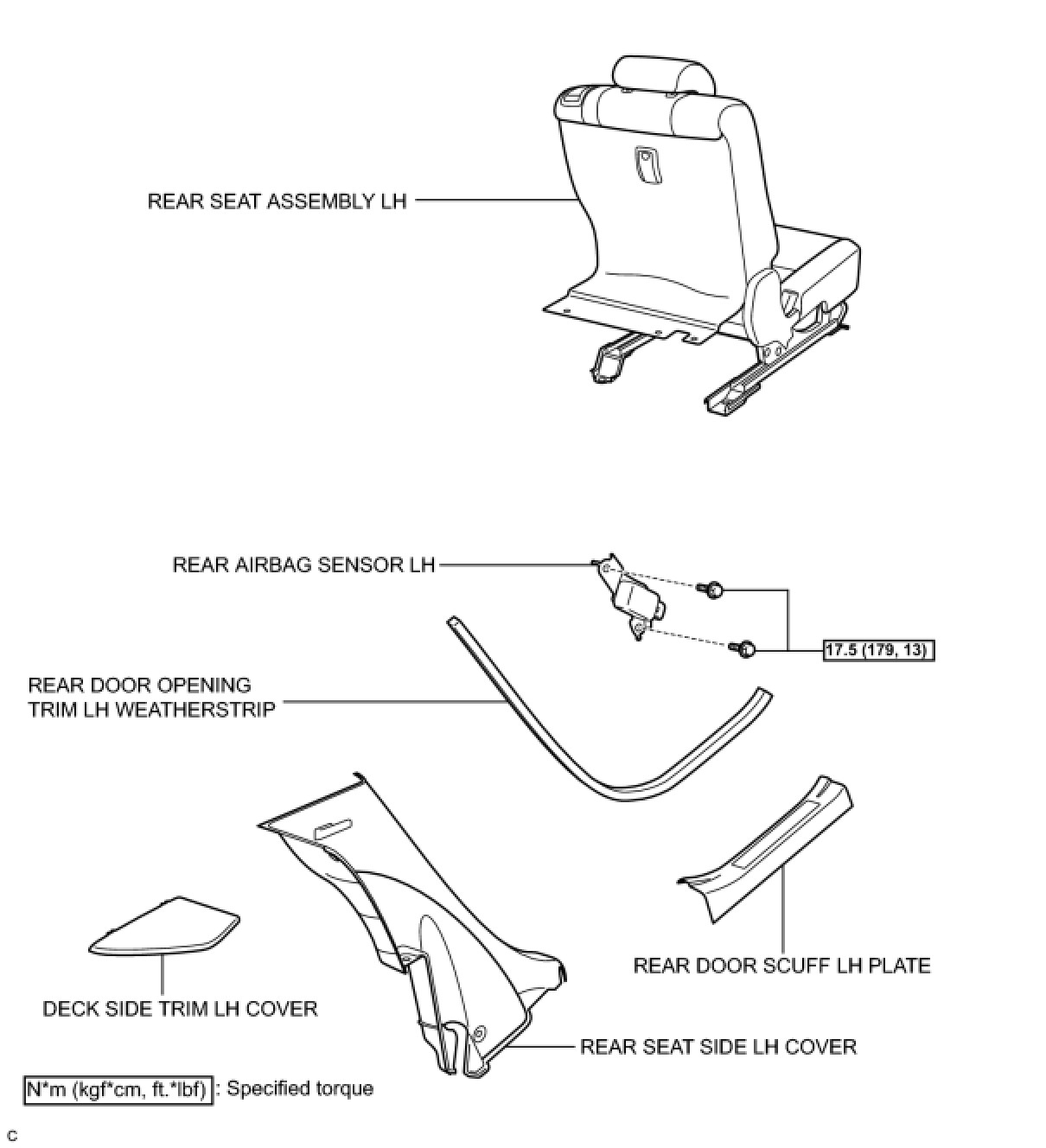

SUPPLEMENTAL RESTRAINT SYSTEM: REAR AIRBAG SENSOR: COMPONENTS
COMPONENTS
