2GR-FE EMISSION CONTROL: CANISTER: INSTALLATION

INSTALLATION

1. INSTALL CHARCOAL CANISTER ASSEMBLY





(a) Connect the charcoal canister assembly with the 2 nuts.
Torque: 36 Nm (367 kgf-cm, 27ft-lbf)





(b) Install the nut.
Torque: 36 Nm (367 kgf-cm, 27ft-lbf)

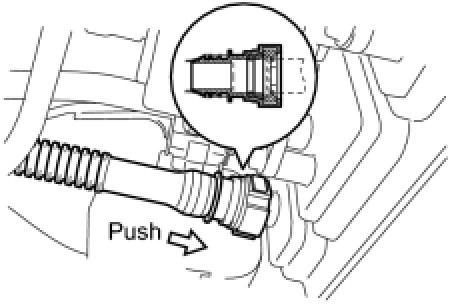

(c) Align the quick connector with the pipe, then push in the quick connector until the retainer makes a "click" sound to connect the charcoal canister fuel hose to the charcoal canister assembly.
- Check that there are no scratches or foreign objects around the connected part of the quick connector and pipe before this work.
- After connecting the charcoal canister fuel hose, confirm that it is securely connected by pulling the quick connector.

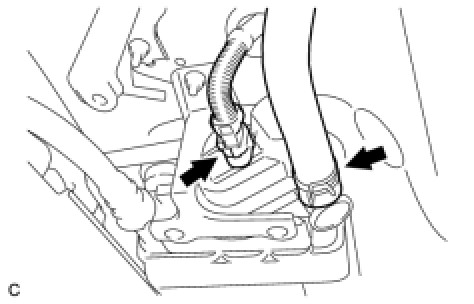

(d) Connect the hose.

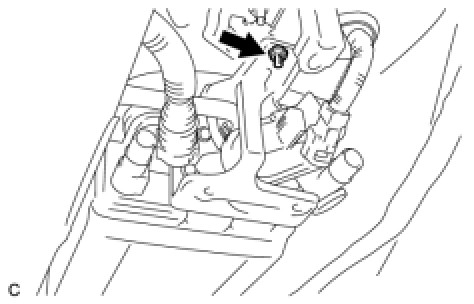

(e) Connect the hose and connector.
2. INSTALL NO. 3 FRONT FLOOR HEAT INSULATOR

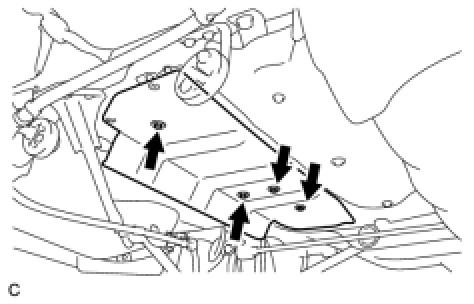

(a) Install the No. 3 front floor heat insulator with the 4 nuts.
Torque: 5.5 Nm (56 kgf-cm, 49in-lbf)
3. INSTALL EXHAUST CENTER PIPE ASSEMBLY
HINT:
Installation
