AIR CONDITIONING: BLOWER UNIT: REASSEMBLY

REASSEMBLY

1. INSTALL CLEAN AIR FILTER

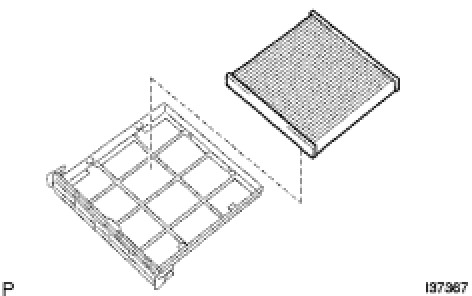

(a) Install the clean air filter.
(b) Engage the 2 claws to install the air filter sub-assembly.

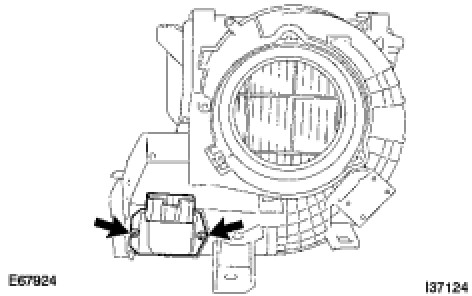

2. INSTALL BLOWER MOTOR CONTROL





(a) Install the blower motor control with the 2 screws.
3. INSTALL COOLING UNIT MOTOR WITH FAN SUB-ASSEMBLY





(a) Install the cooling unit motor with fan sub-assembly with the 3 screws.

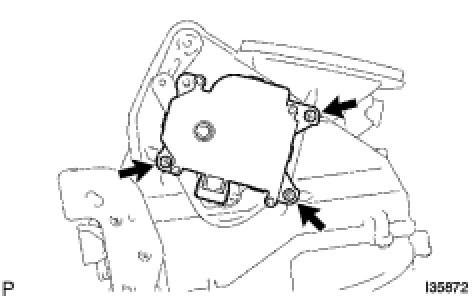

4. INSTALL AIR INLET SERVO MOTOR





(a) Install the air inlet servomotor with the 3 screws.
