Disassembly

BRAKE: BRAKE PEDAL: DISASSEMBLY

DISASSEMBLY

1. REMOVE BRAKE PEDAL PAD
(a) Remove the brake pedal pad from the brake pedal sub-assembly.
2. REMOVE STOP LIGHT SWITCH ASSEMBLY
(a) Loosen the stop light switch lock nut and remove the stop light switch assembly.

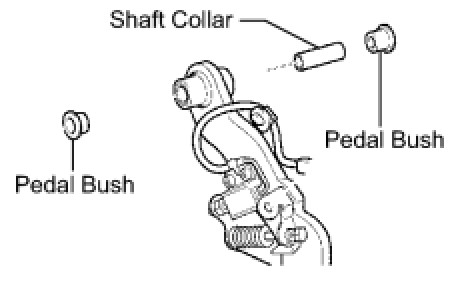

3. REMOVE BRAKE PEDAL BUSH





(a) Remove the 2 brake pedal bushes from the brake pedal sub-assembly.
4. REMOVE BRAKE PEDAL SHAFT COLLAR
(a) Remove the brake pedal shaft from the brake pedal sub-assembly.
5. REMOVE STOP LIGHT SWITCH CUSHION
(a) Remove the stop light switch cushion from the brake pedal sub-assembly.
