BRAKE CONTROL: REAR SPEED SENSOR (for 2WD): INSTALLATION

INSTALLATION

1. INSTALL SKID CONTROL SENSOR





(a) Clean the contacting surface of the rear axle hub & bearing assembly and a new skid control sensor.
NOTICE:
Make sure the sensor rotor is clean.

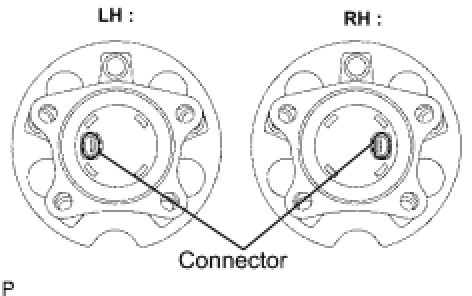

(b) Place the skid control sensor on the rear axle hub so that the connector makes the lowest position under the on vehicle condition.

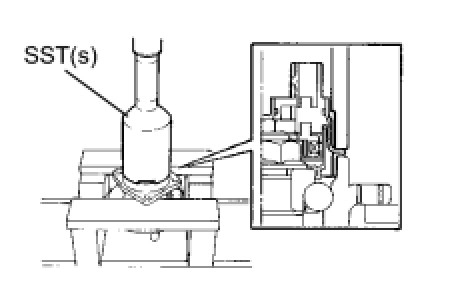

(c) Using SST(s) and a press, install the skid control sensor onto the hub & bearing assembly.
SST: 09214-76011
- Do not tap the skid control sensor directly with a hammer.
- Check that the skid control sensor detection part is clean.
- Press in the skid control sensor straight and slowly.

2. INSTALL REAR AXLE HUB & BEARING ASSEMBLY LH
3. INSPECT BEARING BACKLASH Rear Axle Hub and Bearing
4. INSPECT AXLE HUB DEVIATION Rear Axle Hub and Bearing
5. INSTALL REAR DISC
(a) Aligning the matchmarks, install the rear disc.
HINT: When replacing the rear disc with new one, select the installation position where the rear disc has the minimum runout.

6. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY LH Installation
7. CONNECT SKID CONTROL SENSOR WIRE
(a) Connect the connector to the skid control sensor.
8. INSTALL FRONT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76ft-lbf)
9. INSPECT AND ADJUST REAR WHEEL ALIGNMENT
HINT:
Rear Wheel Alignment

10. CHECK ABS SPEED SENSOR SIGNAL
HINT:
Test Mode Procedure
