Lexus Truck
>>
2009
>>
RX 350 FWD V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Service and Repair
>>
Rear Seat Assembly (for LH Side)
>>
Components
Components

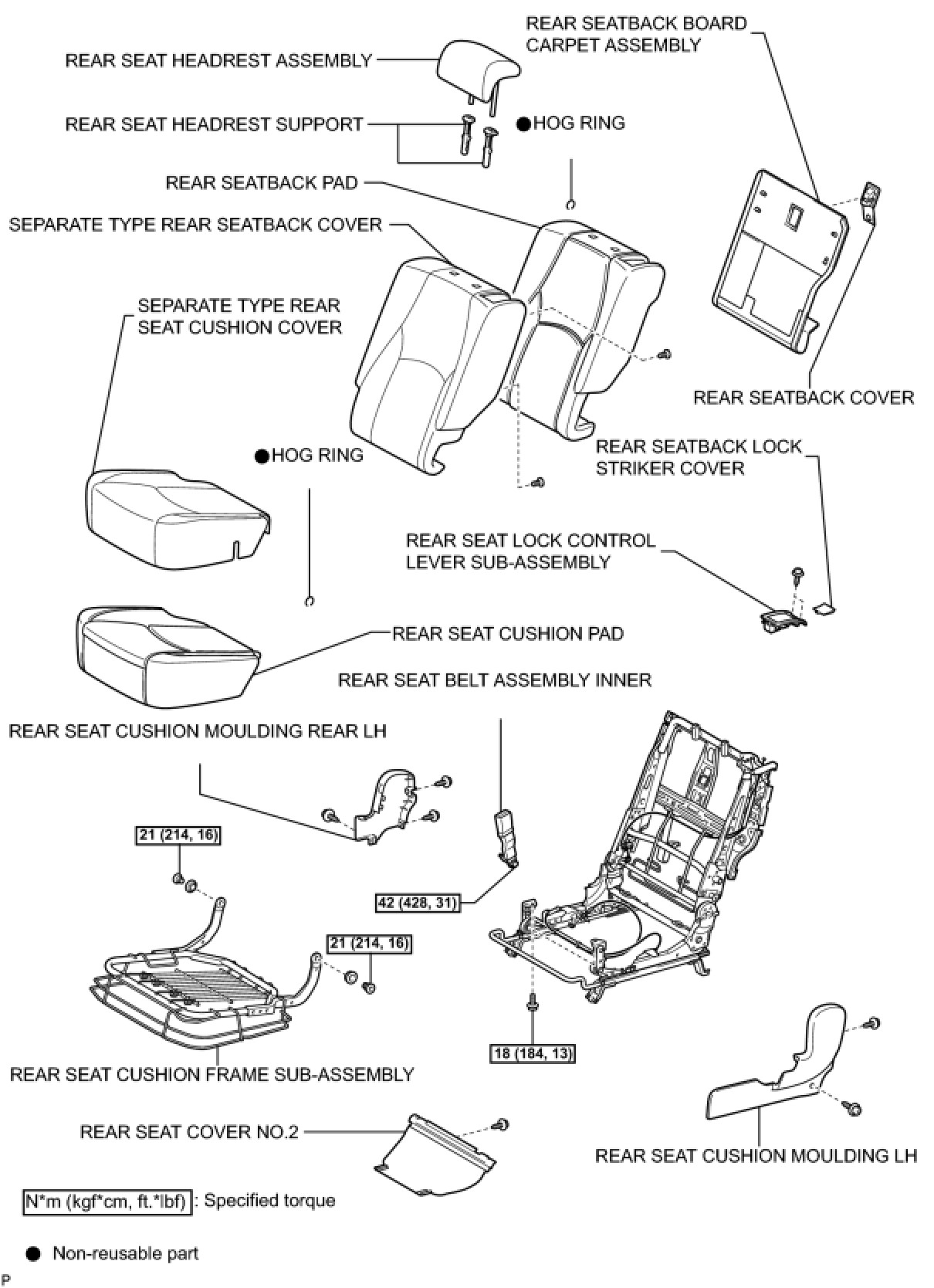

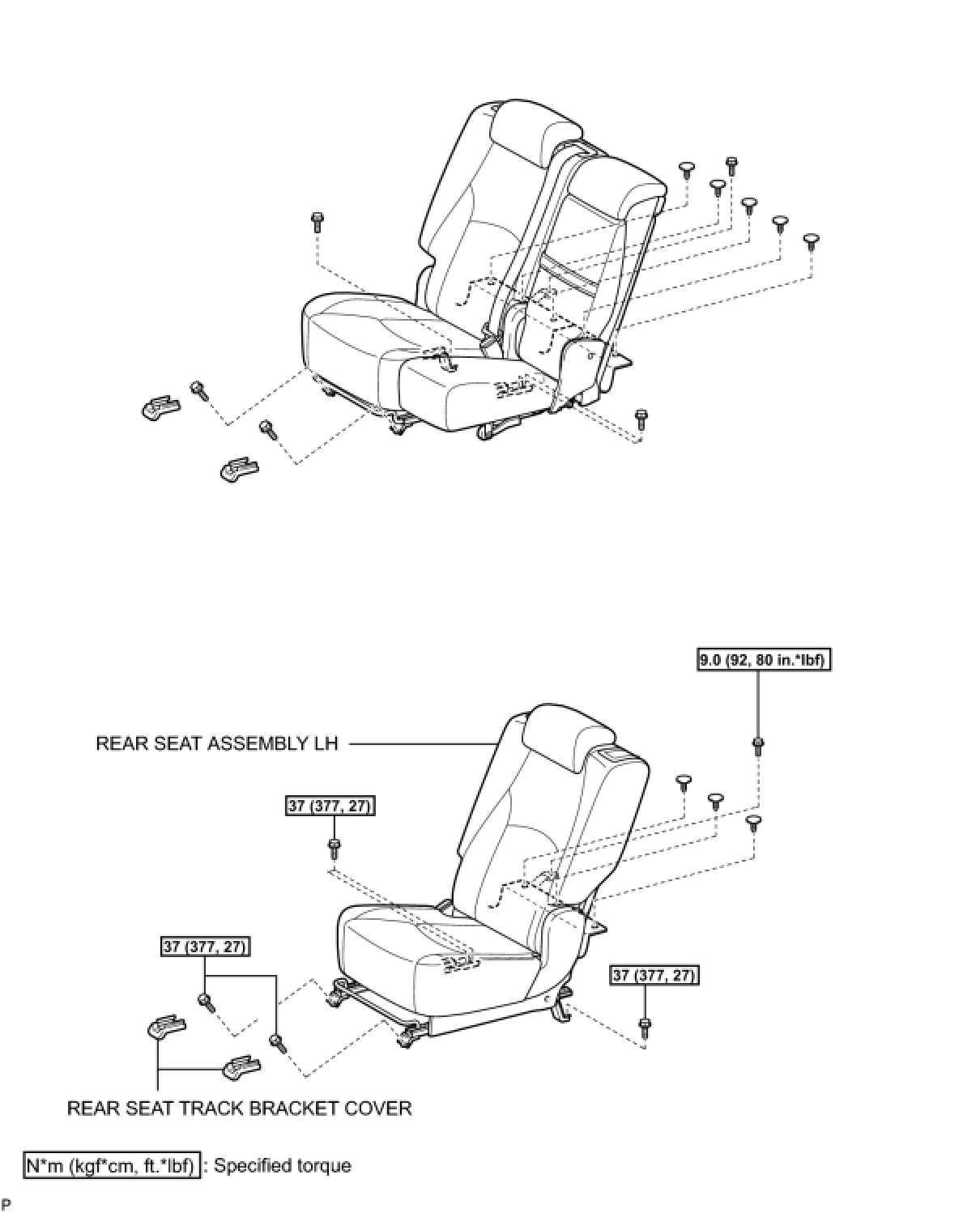

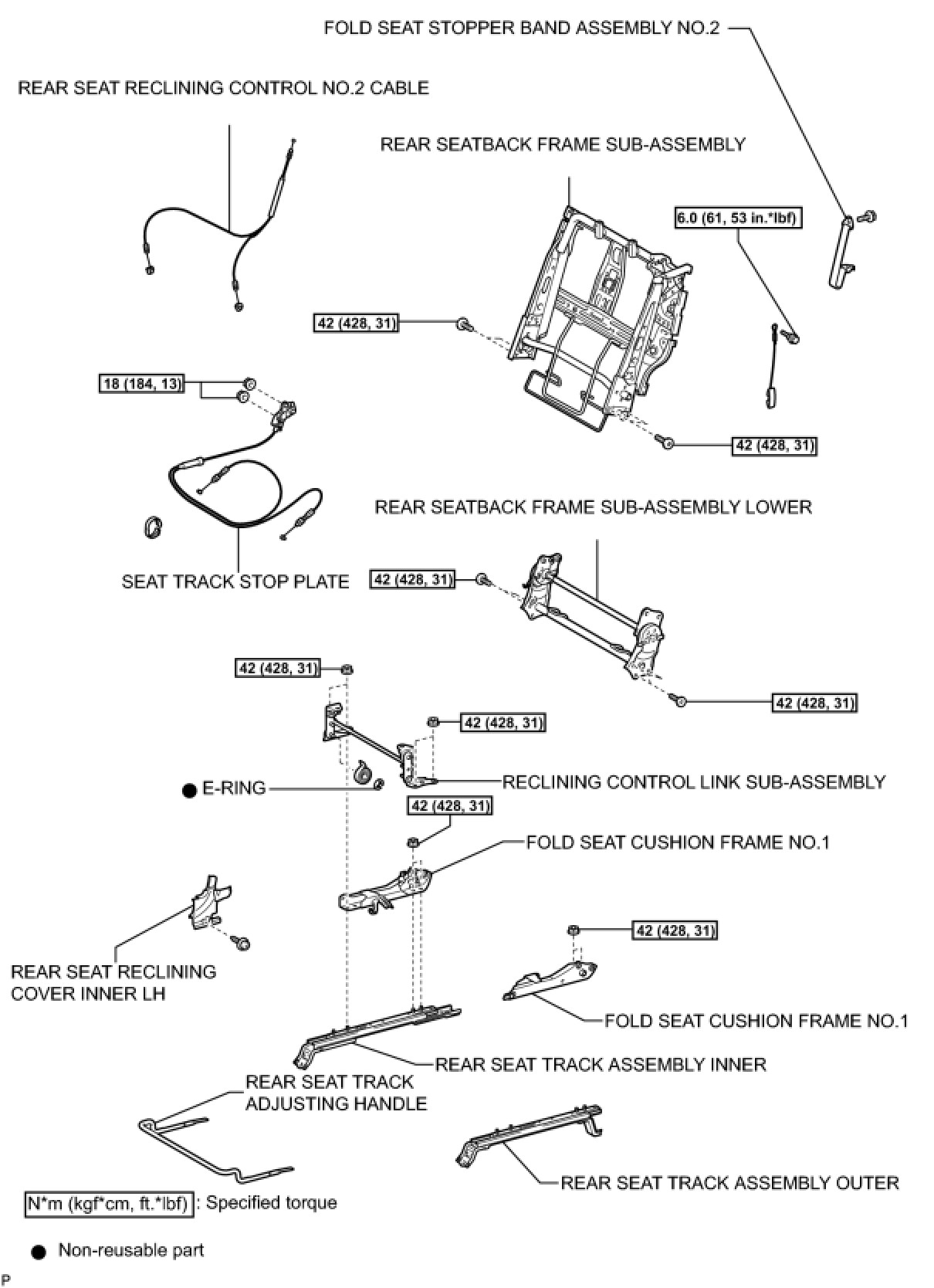

SEAT: REAR SEAT ASSEMBLY (for LH Side): COMPONENTS
COMPONENTS
