Power Mirror Control System (W/O Memory)
Power Mirror Control System (W/O Memory)

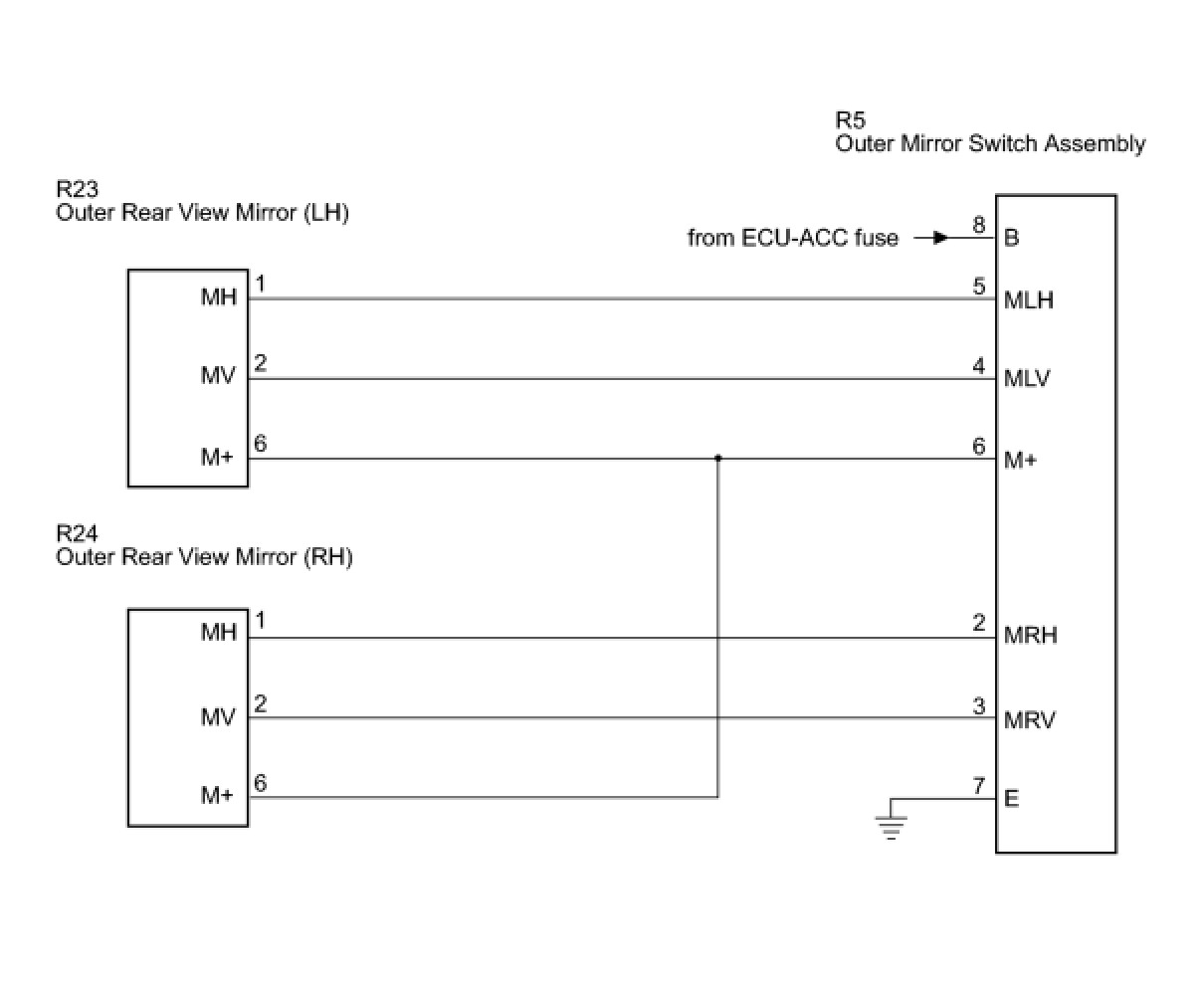

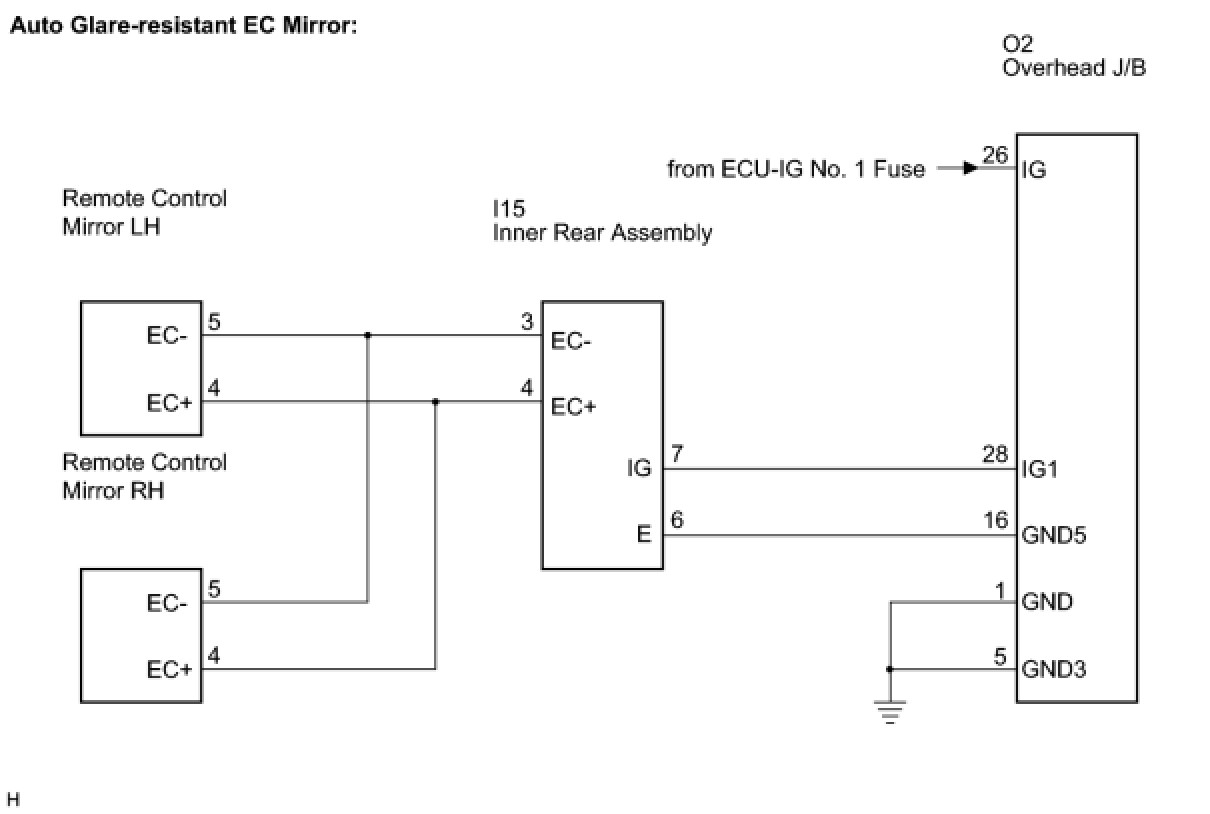

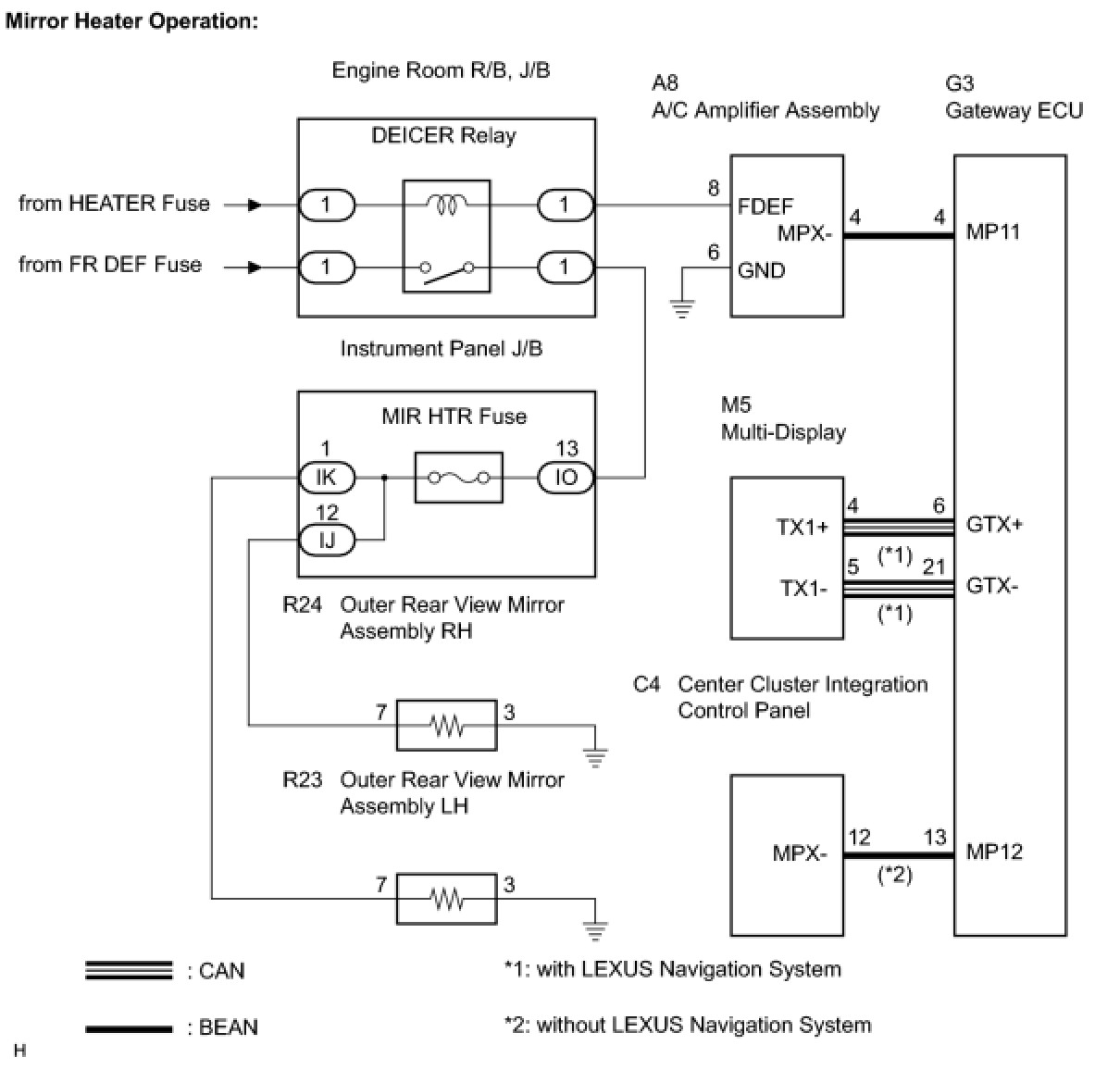

MIRROR: POWER MIRROR CONTROL SYSTEM (w/o Memory): SYSTEM DIAGRAM
SYSTEM DIAGRAM
