Power Mirror Control System (W/ Memory)
>>
System Diagram
System Diagram

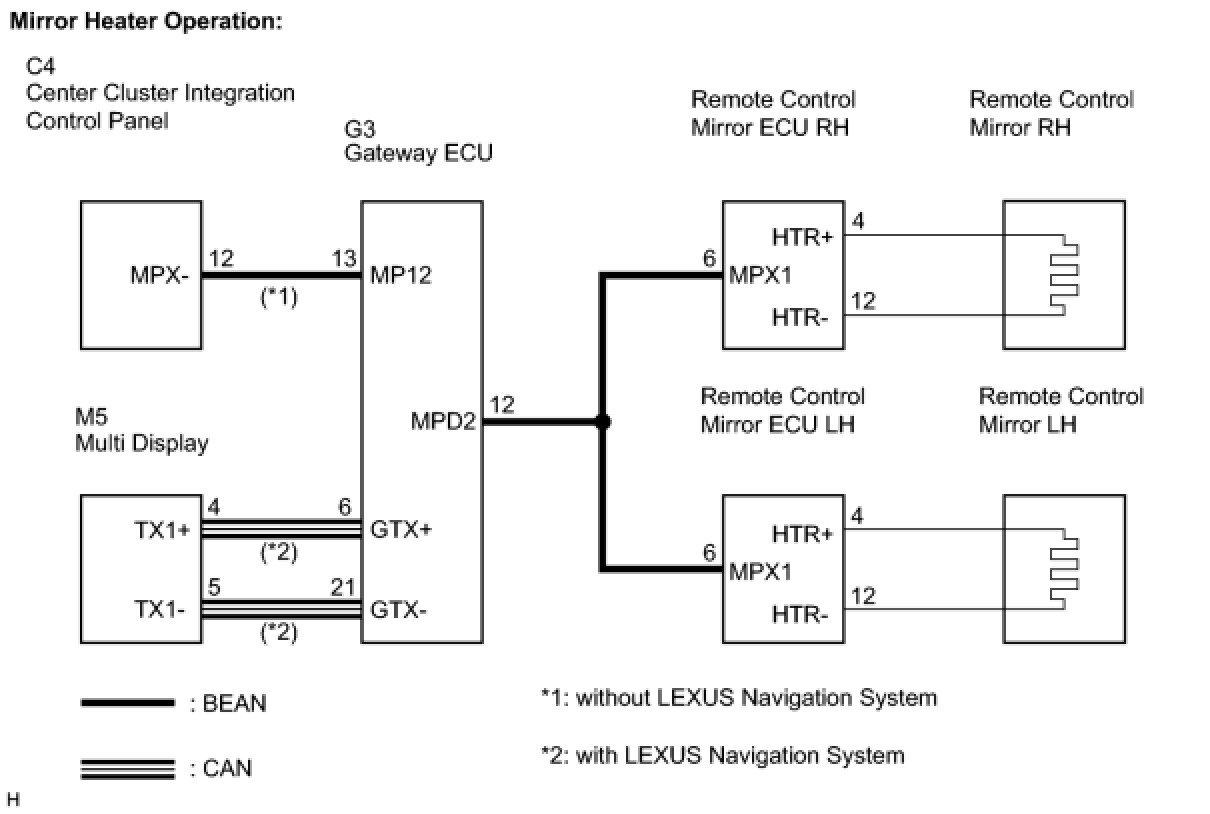

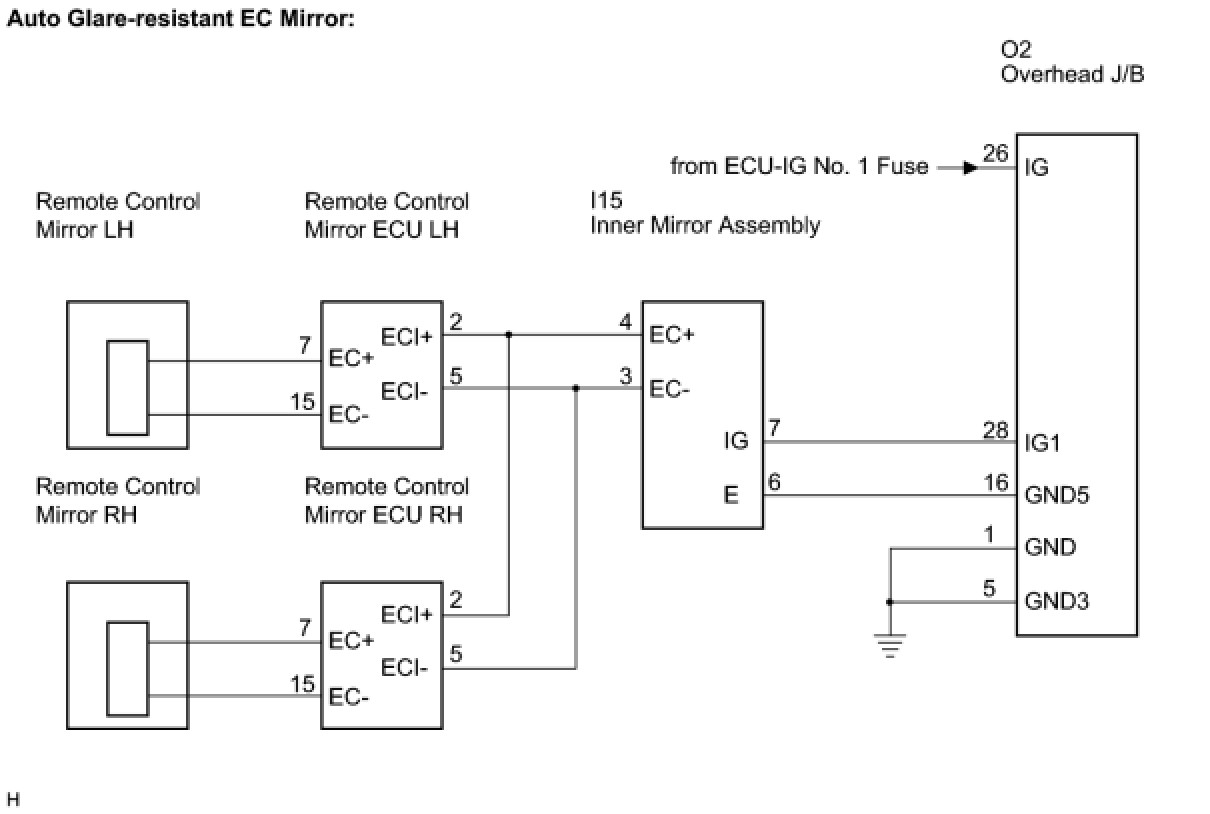

MIRROR: POWER MIRROR CONTROL SYSTEM (w/ Memory): SYSTEM DIAGRAM
SYSTEM DIAGRAM
