Installation

P310 HYBRID TRANSMISSION / TRANSAXLE: SHIFT LEVER POSITION SENSOR:

INSTALLATION

1. INSTALL PARK/NEUTRAL POSITION SWITCH
(a) Install the park/neutral position switch to the manual valve shaft.






(b) Temporarily install the 2 bolts.






(c) Place new lock plate and tighten the nut.
Torque: 6.9 Nm (70 kgf-cm, 61 in-lbf)
(d) Temporarily install the control shaft lever.






(e) Turn the lever counterclockwise until it stops, then turn it clockwise 2 notches.
(f) Remove the control shaft lever.






(g) Align the protruding part with the neutral basic line.
NOTE: There is play on the nut stopper side (protruding part). Align the center point of the range of the play with the neutral basic line.





(h) Tighten the 2 bolts in the order shown in the illustration.
Torque: 13 Nm (133 kgf-cm, 10 ft-lbf)

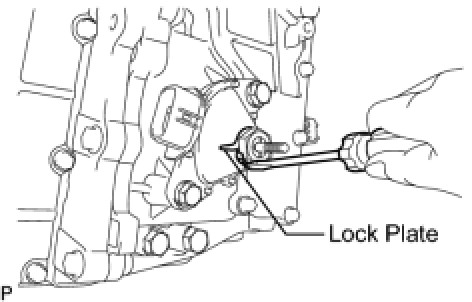

(i) Using a screwdriver, stake the nut with the lock plate.






(j) Install the control shaft lever, washer and nut.
Torque: 6.9 Nm (70 kgf-cm, 61 in-lbf)
2. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
(a) Move the shift lever to the N position.
(b) Install a new clip to the control bracket.






(c) Install the control cable to the control bracket.

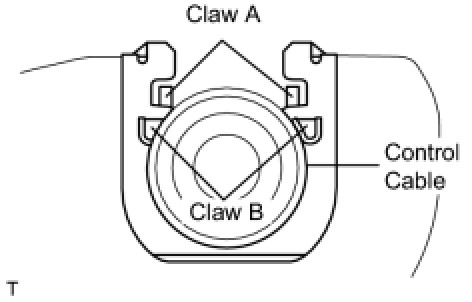

- Make sure that the A claws on the clip are securely fit into the bracket holes.
- Make sure that the cable is securely installed inside of the B claws of the clip.





(d) Connect the park/neutral position switch connector.

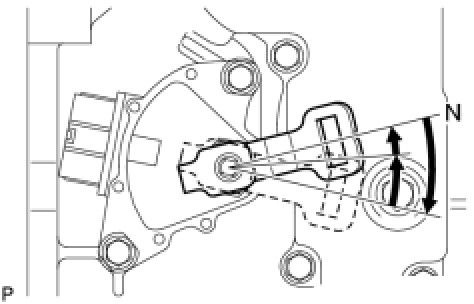

(e) Move the control shaft lever to the N position.






(f) Temporarily install the control cable to the control shaft lever with the nut.






(g) Lightly push up the control cable end.
NOTE: Do not push the control cable end excessively.

(h) Release your hand from the control cable end and then fully tighten the nut.
Torque: 15 Nm (150 kgf-cm, 11 ft-lbf)
3. INSTALL OIL COOLER TUBE SUB-ASSEMBLY (w/ Oil Cooler)






(a) Using SST and a wrench, tighten the 2 new oil cooler tubes.
SST: 09023-12701
Torque: 34 Nm (350 kgf-cm, 25 ft-lbf)






(b) Install the oil cooler tube to the control cable bracket with the bolt.
Torque: 8.2 Nm (84 kgf-cm, 73 in-lbf)
(c) Install the oil cooler hoses to the oil cooler tubes.
4. ADD AND INSPECT HYBRID TRANSAXLE FLUID (w/ Oil Cooler) Transaxle Fluid

5. INSPECT SHIFT LEVER POSITION Adjustments

6. ADJUST SHIFT LEVER POSITION Adjustments

7. INSPECT SHIFT LEVER OPERATION Adjustments

8. INSTALL ENGINE UNDER COVER NO.1 Installation

9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
