Lexus Truck
>>
2008
>>
RX 400h FWD V6-3.3L (3MZ-FE) Hybrid
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Continuously Variable Transmission/Transaxle
>>
Shift Linkage
>>
Shift Cable
>>
Service and Repair
>>
Components
Components

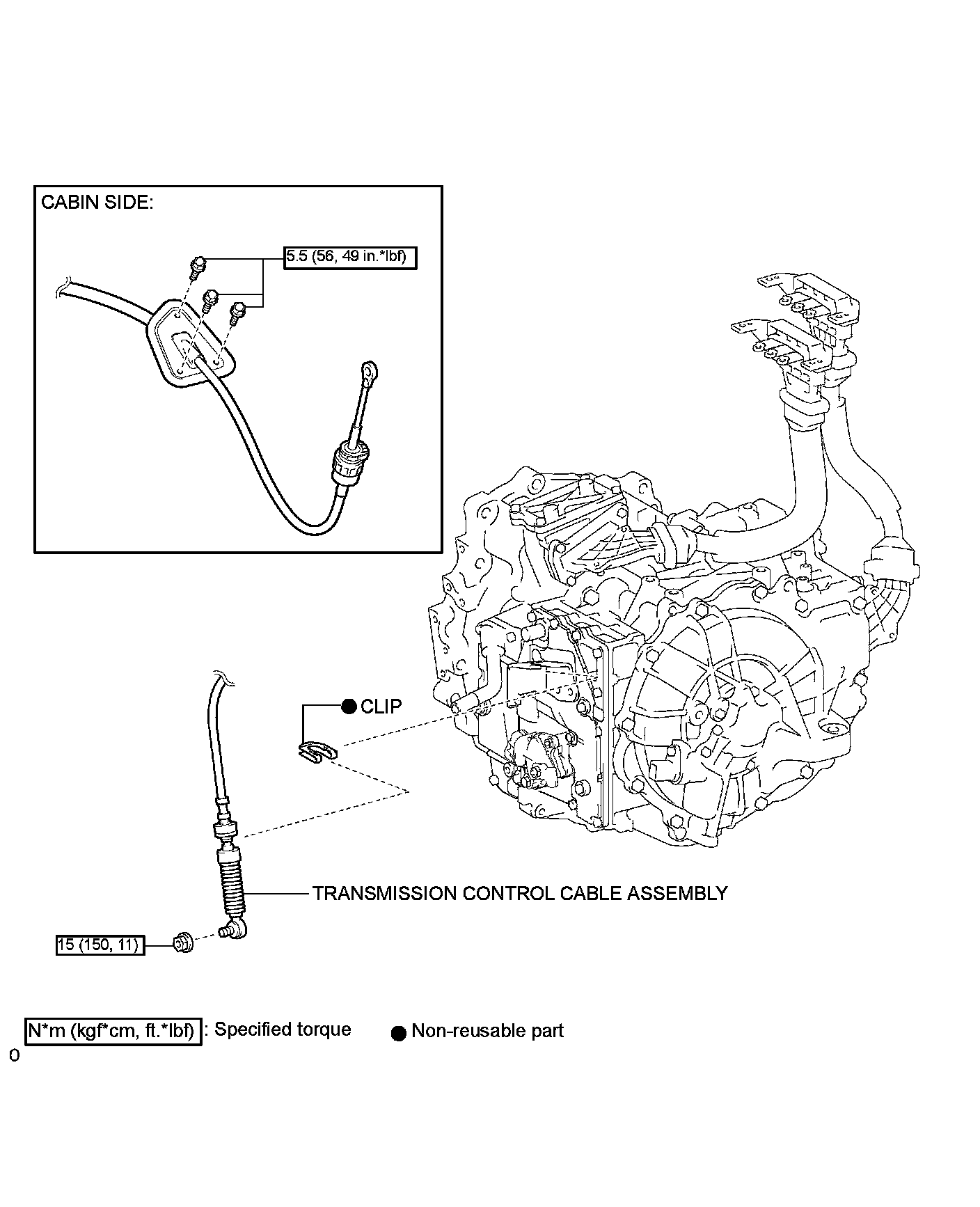

P310 HYBRID TRANSMISSION / TRANSAXLE: TRANSAXLE CONTROL CABLE ASSEMBLY:
COMPONENTS
