Q211 HYBRID TRANSMISSION / TRANSAXLE: HYBRID TRANSAXLE FLUID: REPLACEMENT

REPLACEMENT

1. DRAIN HYBRID TRANSAXLE FLUID

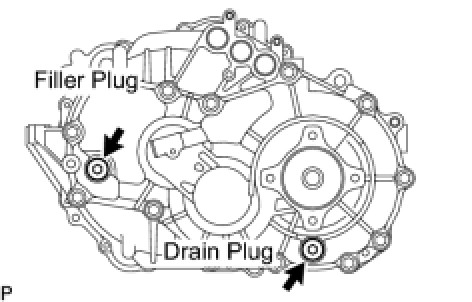

(a) Using a socket hexagon wrench 10 mm, remove the filler plug and gasket.
(b) Using a socket hexagon wrench 10 mm, remove the drain plug and gasket.
(c) Using a socket hexagon wrench 10 mm, install the drain plug and a new gasket.
Torque: 39 Nm (398 kgf-cm, 29 ft-lbf)
2. ADD AND INSPECT HYBRID TRANSAXLE FLUID
(a) Fill oil.

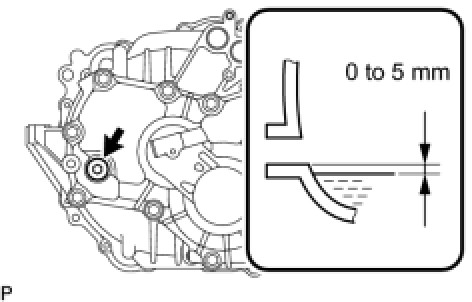

(b) Check that the oil surface is within 5 mm (0.20 in.) from the lowest position of the inner surface of the transaxle filler plug opening.
- Stop the vehicle on a flat road.
- Recheck the transaxle oil level after driving when exchanging oil.
- Insufficient or excessive amounts of transaxle oil may be the cause of some trouble.

(c) Check for leaks if the quantity of oil is low.
(d) Using a socket hexagon wrench 10 mm, install the filler plug and a new gasket.
Torque: 39 Nm (398 kgf-cm, 29 ft-lbf)
