Installation

P310 HYBRID TRANSMISSION / TRANSAXLE: OIL PUMP ASSEMBLY:

INSTALLATION

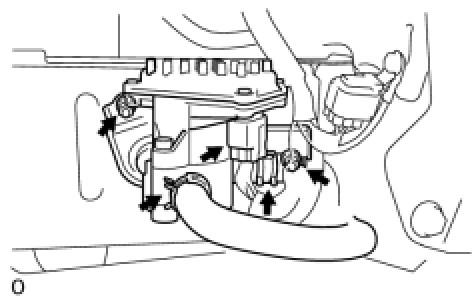

1. INSTALL OIL PUMP ASSEMBLY






(a) Install the oil pump assembly with the 2 nuts.
Torque: 7.0 Nm (71 kgf-cm, 62 in-lbf)
(b) Connect the 2 oil cooler hoses.
(c) Connect the oil cooler connector.
2. INSTALL FRONT BUMPER ASSEMBLY Installation

3. ADD AND INSPECT HYBRID TRANSAXLE FLUID Transaxle Fluid
