Connector Views

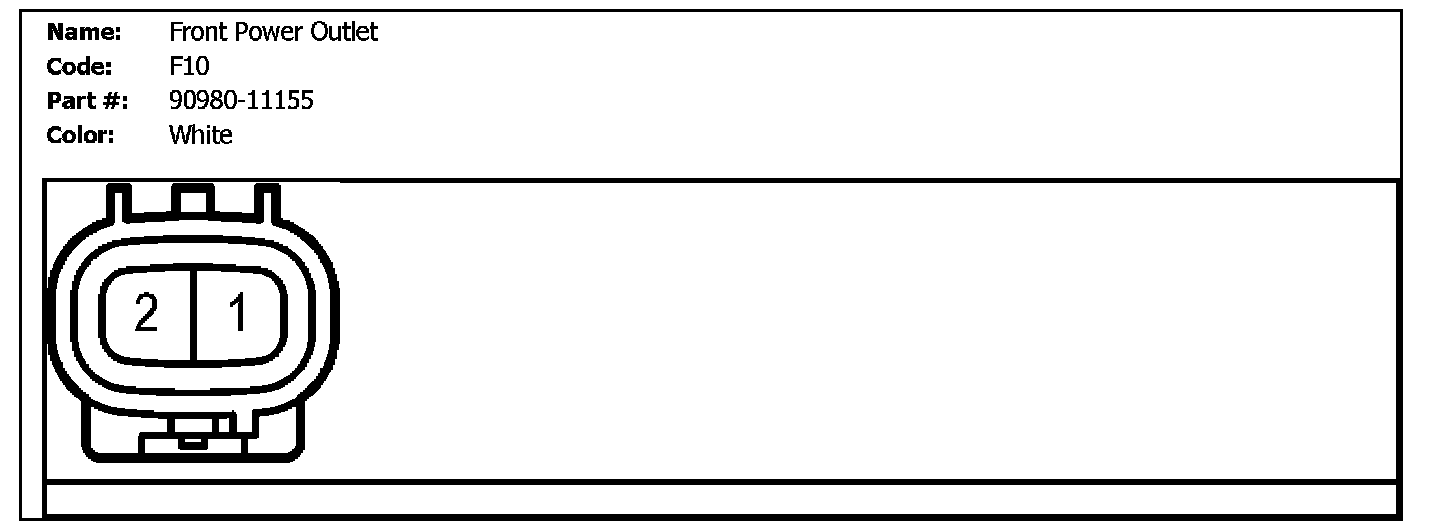

F10 (Front Power Outlet):

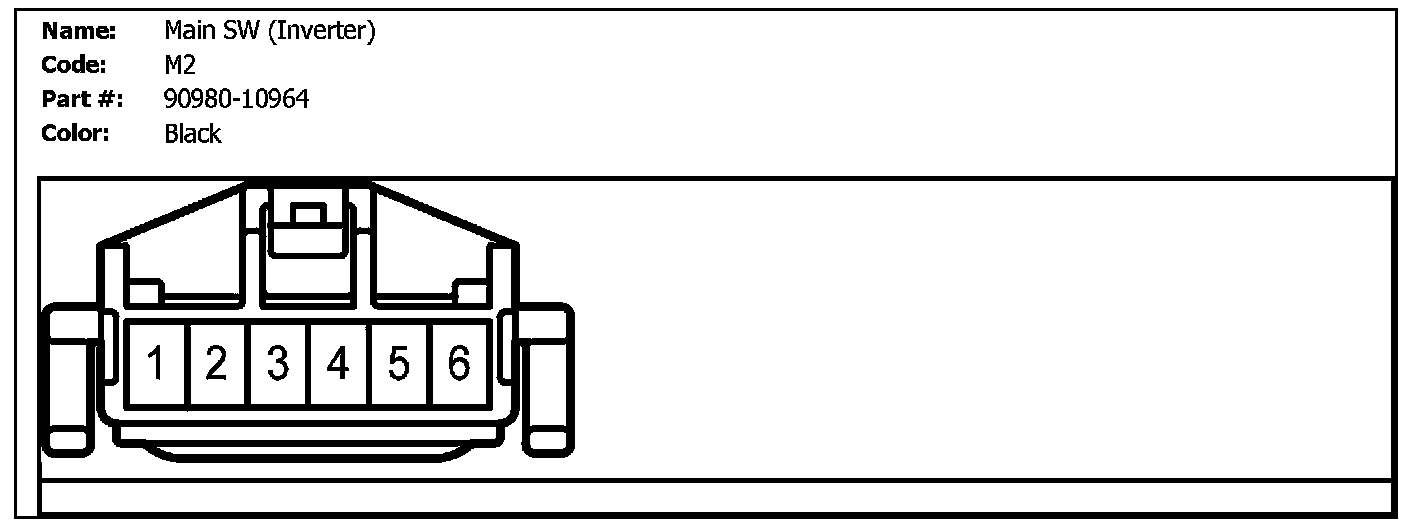

M2 (Main SW (Inverter)):

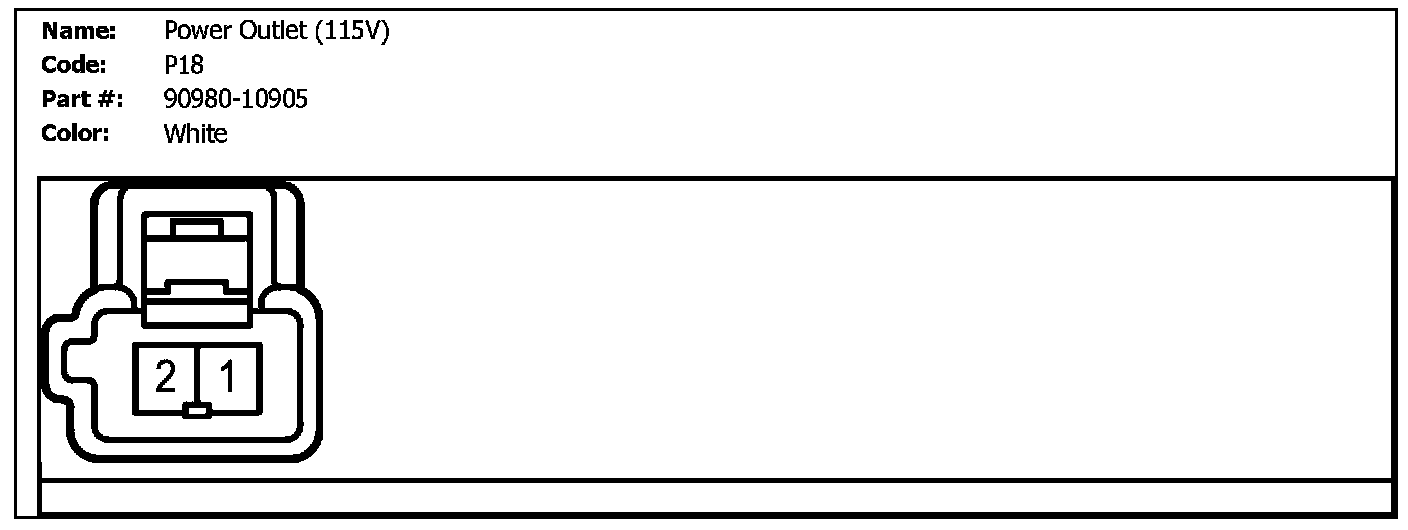

P18 (Power Outlet (115V)):

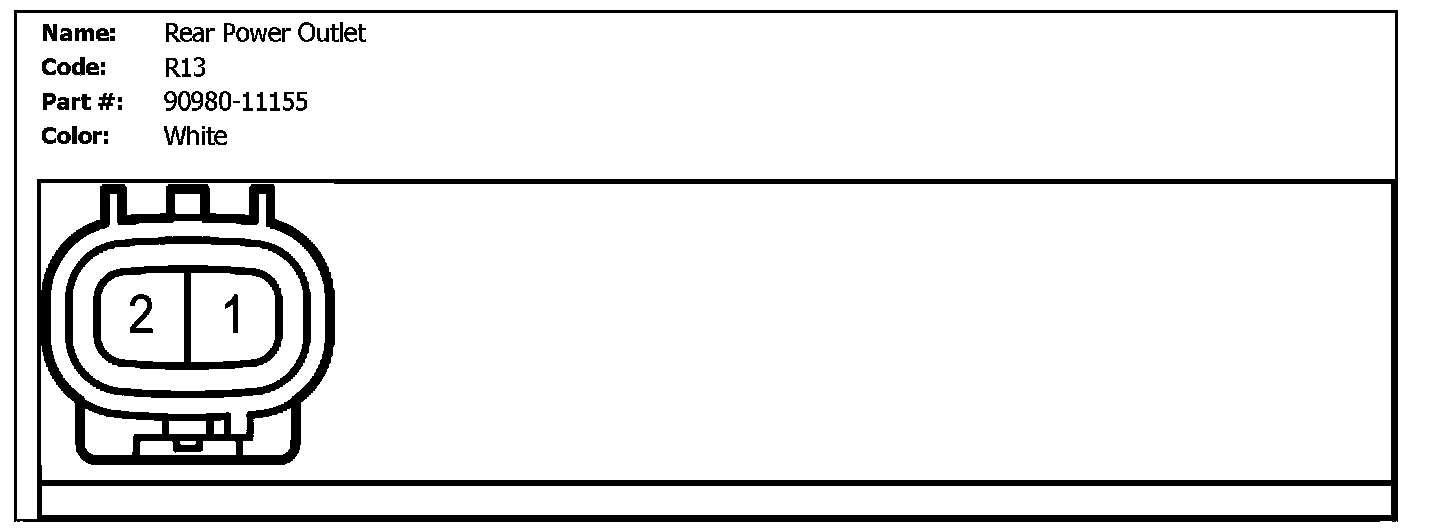

R13 (Rear Power Outlet):
