IGCT Relay

P310 HYBRID VEHICLE CONTROL: IGCT RELAY:

INSPECTION

1. INSPECT IGCT RELAY
(a) Check the resistance.

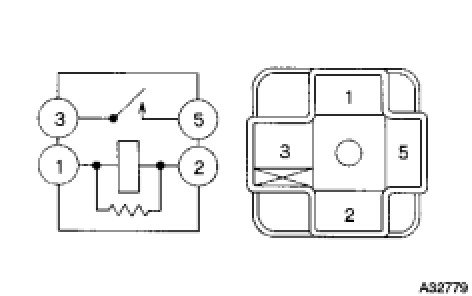

(1) Using an ohmmeter, measure the resistance between the terminals.

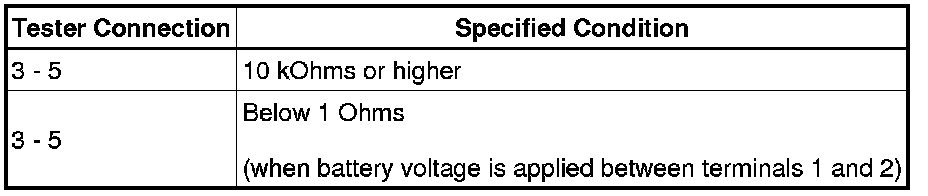

Standard resistance:






If the result is not as specified, replace the relay.
