Removal

P310 HYBRID BATTERY CONTROL: HV RELAY ASSEMBLY:

REMOVAL

1. PRECAUTION
Service Precautions
2. READ OUTPUT DTC Removal

3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
4. REMOVE SERVICE PLUG GRIP Removal

5. REMOVE REAR SEAT TRACK BRACKET COVER Removal

6. REMOVE REAR SEAT ASSEMBLY LH Removal

7. REMOVE REAR SEAT TRACK BRACKET COVER Removal

8. REMOVE REAR SEAT ASSEMBLY RH Removal

9. REMOVE AIR INTAKE COVER Removal

10. REMOVE AIR INTAKE COVER CENTER Removal

11. SEPARATE FLOOR CARPET ASSEMBLY FRONT Removal

12. REMOVE REAR CENTER SEAT INNER BELT Removal

13. REMOVE BATTERY CARRIER BRACKET Removal

14. REMOVE BATTERY CARRIER DUCT Removal

15. REMOVE HV BATTERY SERVICE HOLE COVER Removal

16. REMOVE BATTERY COVER SUB-ASSEMBLY Removal

17. REMOVE HYBRID VEHICLE RELAY ASSEMBLY
NOTICE:
- Wear insulated gloves and protective glasses.
- Insulate the removed terminals with insulating tape.

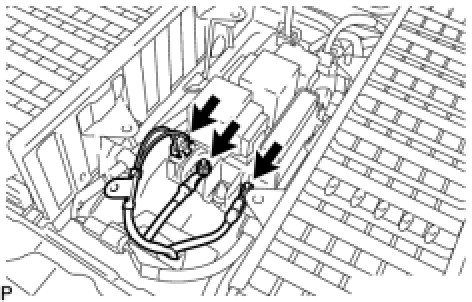

(a) Disconnect the No.3 wire frame connector from the HV relay assembly.
(b) Remove the 2 nuts, then disconnect the No.3 wire frame from the HV relay assembly.

(d) Disconnect the 2 connectors from the HV relay assembly.

(e) Remove the 3 nuts and HV relay assembly.
