Home >> Lexus Truck >> 2008 >> RX 400h FWD V6-3.3L (3MZ-FE) Hybrid >> Repair and Diagnosis >> Hybrid Drive Systems >> Power Control System >> System Main Relay, Hybrid Drive >> Locations >> Inverter Relay

Inverter Relay

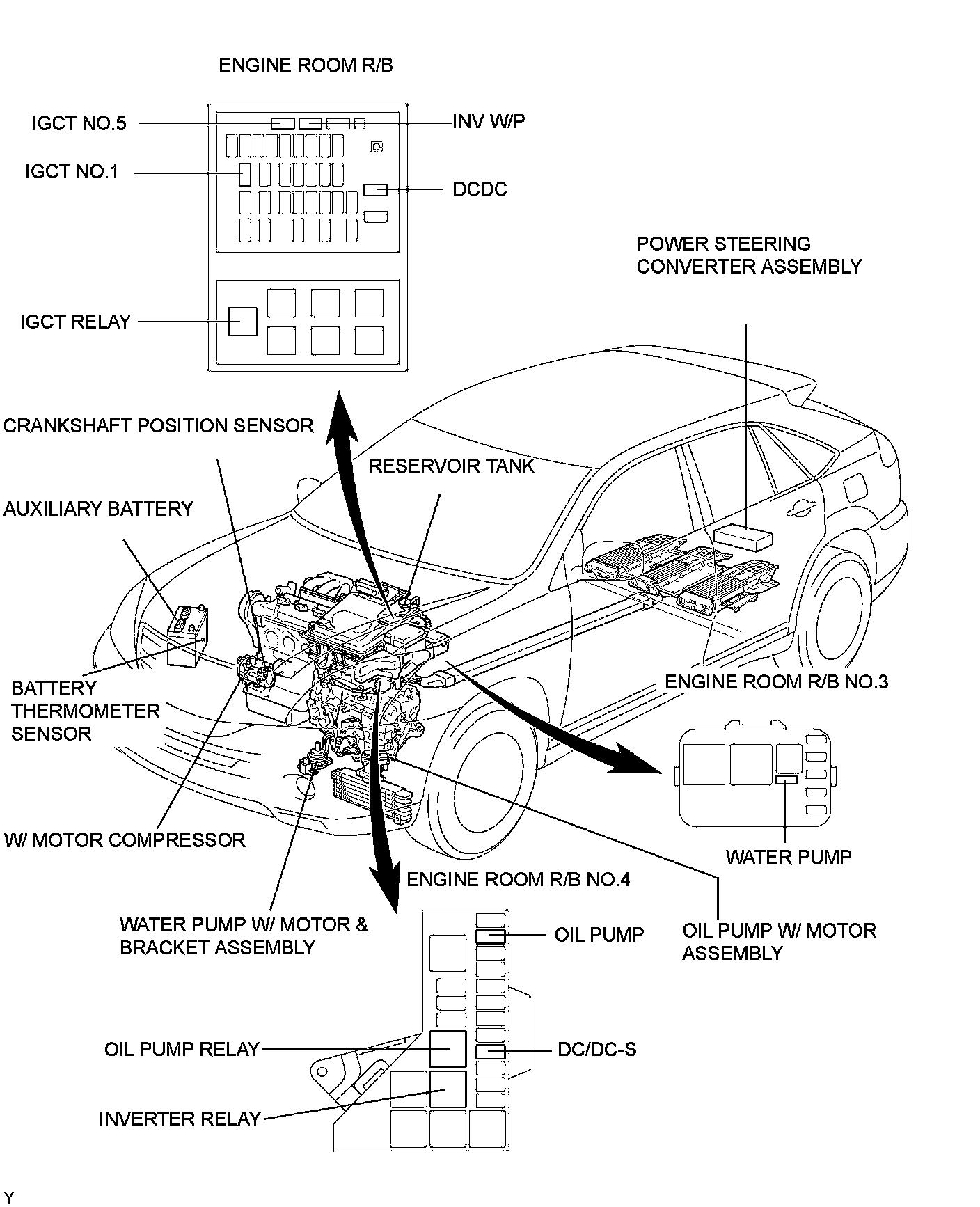

P310 HYBRID VEHICLE CONTROL: HYBRID CONTROL SYSTEM:

PARTS LOCATION
