Removal

P310 HYBRID VEHICLE CONTROL: REAR CIRCUIT BREAKER SENSOR:

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE DECK BOARD SUB-ASSEMBLY Removal

3. REMOVE DECK FLOOR BOX REAR Removal

4. REMOVE REAR FLOOR FINISH PLATE Removal

5. REMOVE DECK FLOOR BOX FRONT Removal

6. REMOVE DECK BOARD SUB-ASSEMBLY NO.2 Removal

7. REMOVE DECK BOARD SUB-ASSEMBLY NO.3 Removal

8. REMOVE DECK SIDE TRIM BOX RH
9. REMOVE DECK SIDE TRIM BOX LH Removal

10. REMOVE REAR CIRCUIT BREAKER SENSOR
(a) Remove the rear circuit breaker sensor (LH).

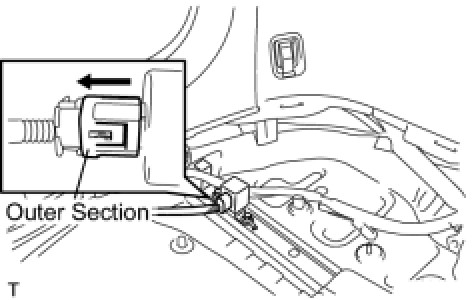

(1) Move the outer section to the wire harness side as illustrated, then disconnect the rear circuit breaker sensor (LH).

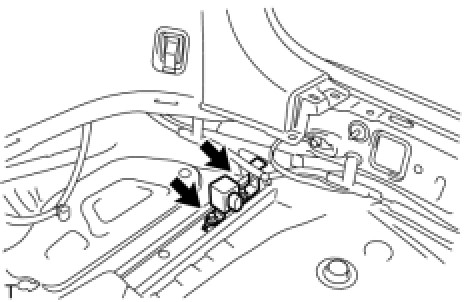

(2) Remove the 2 bolts and rear circuit breaker sensor (LH).
(b) Remove the rear circuit breaker sensor (RH).

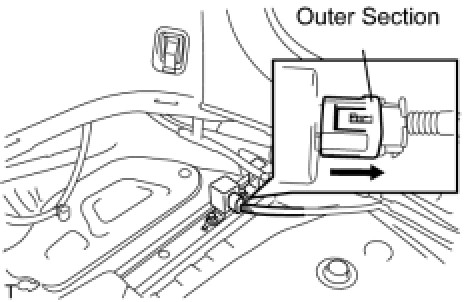

(1) Move the outer section to the wire harness side as illustrated, then disconnect the rear circuit breaker sensor (RH).

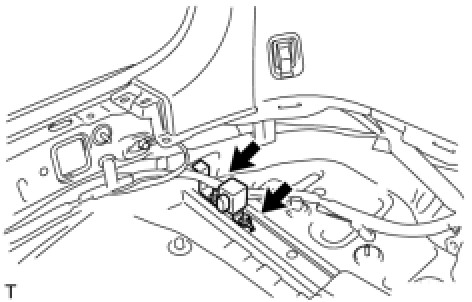

(2) Remove the 2 bolts and rear circuit breaker sensor (RH).
