Disassembly

AIR CONDITIONING: CONDENSER:

DISASSEMBLY

1. REMOVE COOLER DRYER

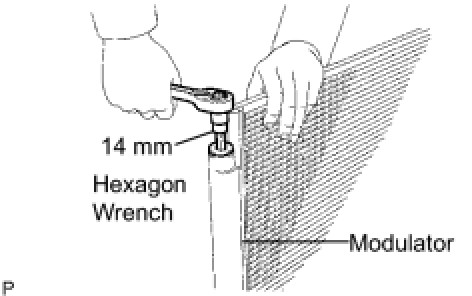

(a) Using a hexagon wrench 14 mm, remove the cap and filter from the modulator.

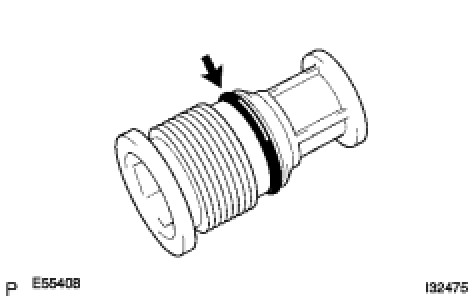

(b) Remove the O-ring from the cap.

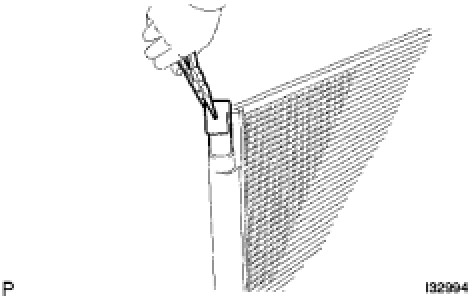

(c) Using needle nose pliers, remove the cooler dryer.
