Installation

BRAKE CONTROL: SKID CONTROL SENSOR (for 2WD):

INSTALLATION

1. INSTALL SKID CONTROL SENSOR






(a) Clean the contact surface of the axle hub and a new skid control sensor.
NOTE: Prevent foreign matter from attaching to the sensor rotor.

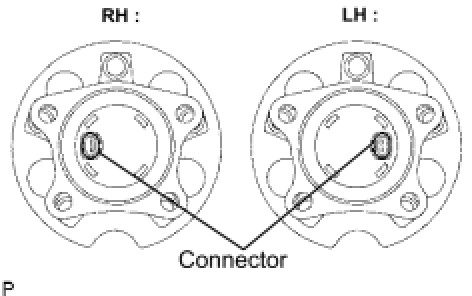

(b) Place the skid control sensor on the axle hub so that the connector is positioned as shown in the illustration.






(c) Using SST and press, install the skid control sensor to the axle hub.
SST: 09214-76011
- Keep the sensor away from magnets.
- Do not use a hammer on the skid control sensor.
- Check that there is no foreign matter such as iron chips on the detecting portion of the skid control sensor.
- Slowly press the skid control sensor straight.

2. INSTALL REAR AXLE HUB AND BEARING ASSEMBLY Installation

3. INSTALL REAR DISC Reassembly

4. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY Installation

5. CONNECT SKID CONTROL SENSOR WIRE

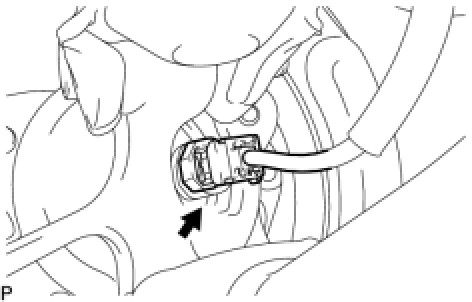

(a) Connect the connector to the skid control sensor.
6. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft-lbf)
7. INSPECT AND ADJUST REAR WHEEL ALIGNMENT Rear
8. CHECK SPEED SENSOR SIGNAL Diagnosis System
