Installation

BRAKE CONTROL: FRONT SPEED SENSOR:

INSTALLATION

1. INSTALL FRONT SPEED SENSOR






(a) Install the front speed sensor with the bolt.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)
NOTE: Prevent foreign matter from attaching to the sensor tip.

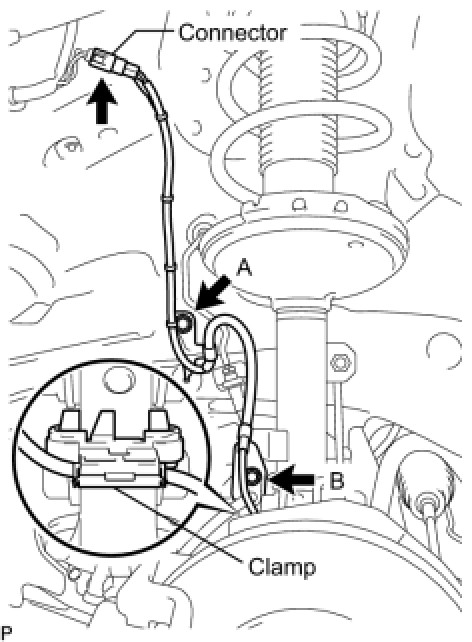

(b) Install the front speed sensor with the 2 bolts and the clamp.
Bolt A - Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf)
Bolt B - Torque: 19 Nm (194 kgf-cm, 14 ft-lbf)
NOTE: Do not twist the wire harness for the front speed sensor when installing the speed sensor.

(c) Connect the front speed sensor connector.
2. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY
(a) Install the front fender splash shield sub-assembly with the bolts, screws, and clips.
3. INSTALL FRONT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft-lbf)
4. CHECK SPEED SENSOR SIGNAL
Diagnosis System
