Removal

BRAKE CONTROL: STEERING ANGLE SENSOR:

REMOVAL

1. PRECAUTION
Service Precautions
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working Service Precautions.
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

3. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
4. REMOVE STEERING WHEEL NO.2 COVER LOWER Removal

5. REMOVE STEERING WHEEL NO.3 COVER LOWER Removal

6. REMOVE STEERING PAD Removal

7. REMOVE STEERING WHEEL ASSEMBLY Removal

8. REMOVE STEERING COLUMN COVER (for Manual Tilt) Removal

9. REMOVE STEERING COLUMN COVER (for Power Tilt and Power Telescopic) Removal

10. REMOVE SPIRAL CABLE SUB-ASSEMBLY WITH STEERING ANGLE SENSOR Removal

11. REMOVE STEERING ANGLE SENSOR

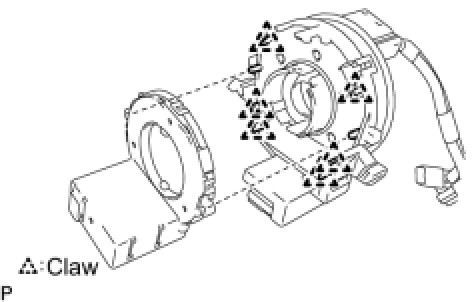

(a) Disengage the 6 claws and remove the steering angle sensor from the spiral cable sub-assembly.
