Installation

BRAKE CONTROL: STEERING ANGLE SENSOR:

INSTALLATION

1. INSTALL STEERING ANGLE SENSOR

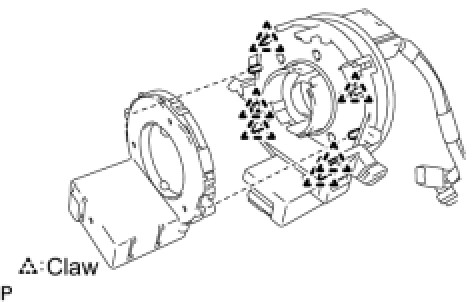

(a) Install the steering angle sensor to the spiral cable sub-assembly.
- Engage the claws securely.
- Do not damage the claws.

2. INSTALL SPIRAL CABLE SUB-ASSEMBLY WITH STEERING ANGLE SENSOR Installation

3. POINT FRONT WHEELS FACING STRAIGHT AHEAD
4. INSTALL STEERING COLUMN COVER (for Manual Tilt) Installation

5. INSTALL STEERING COLUMN COVER (for Power Tilt and Power Telescopic) Installation

6. CENTER SPIRAL CABLE Installation

7. INSTALL STEERING WHEEL ASSEMBLY Installation

8. INSTALL STEERING PAD Installation

9. INSTALL STEERING WHEEL NO.2 COVER LOWER Installation

10. INSTALL STEERING WHEEL NO.3 COVER LOWER Installation

11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

12. INSPECT SRS WARNING LIGHT Diagnosis System
