Removal

BRAKE CONTROL: BRAKE CONTROL POWER SUPPLY:

REMOVAL

1. REMOVE DECK BOARD SUB-ASSEMBLY Removal

2. REMOVE DECK FLOOR BOX FRONT Removal

3. REMOVE DECK FLOOR BOX REAR Removal

4. REMOVE DECK NO.2 BOARD SUB-ASSEMBLY Removal

5. REMOVE DECK NO.3 BOARD SUB-ASSEMBLY Removal

6. REMOVE REAR FLOOR FINISH PLATE Removal

7. REMOVE DECK SIDE TRIM BOX RH
8. REMOVE DECK SIDE TRIM BOX LH Removal

9. REMOVE DECK BOARD NO.1 CHECK
(a) Remove the 4 nuts and deck board No.1 check.
10. REMOVE BRAKE CONTROL POWER SUPPLY ASSEMBLY

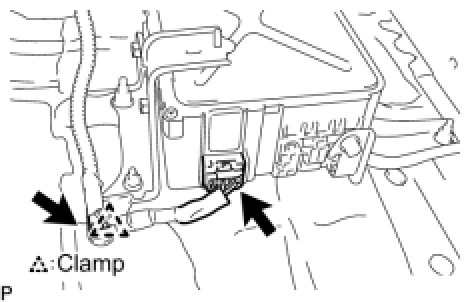

(a) Disconnect the brake control power supply assembly connector and separate the clamp.

(b) Remove the 3 nuts and the brake control power supply assembly.
