Braking Sensor/Switch: Testing and Inspection

BRAKE CONTROL: BRAKE PEDAL STROKE SENSOR:

INSPECTION

1. INSPECT BRAKE PEDAL STROKE SENSOR ASSEMBLY
(a) Inspect the brake pedal stroke sensor assembly. If any of the following occurs, replace with a new brake pedal stroke sensor assembly:
- The surface of the brake pedal stroke sensor assembly is cracked, dented, or chipped off.
- The connector is scratched, cracked, or damaged.
- The brake pedal stroke sensor assembly has been dropped.

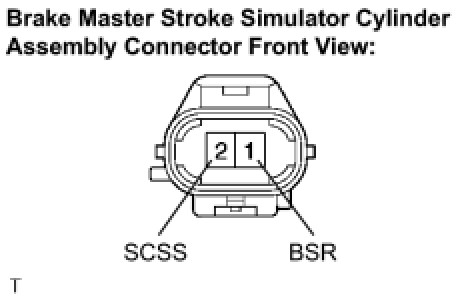

(b) Measure the resistance according to the value(s) in the table below.
Resistance:
