ABS Main Relay: Testing and Inspection

BRAKE CONTROL: ABS MAIN RELAY:

INSPECTION

1. INSPECT ABS MAIN RELAY (ABS NO.1 RELAY, ABS NO.2 RELAY)

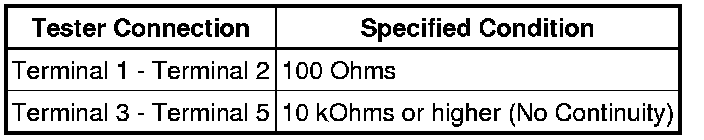

(a) Measure the resistance according to the value(s) in the table below.
Resistance:

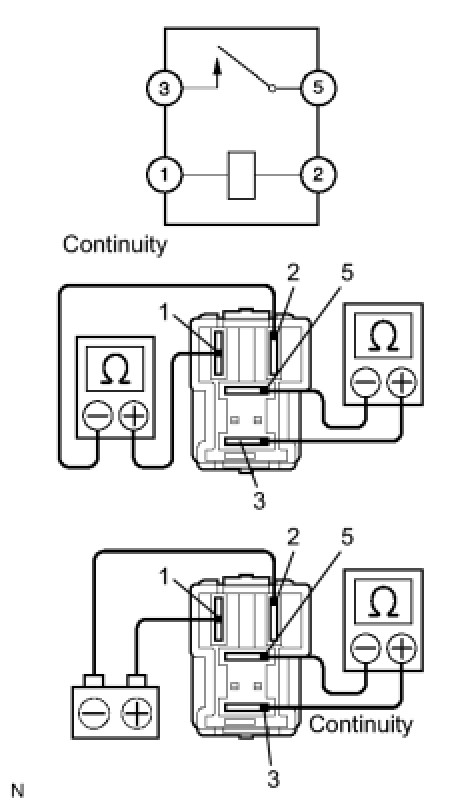

(b) Apply battery voltage between terminals 1 and 2.
(c) Measure the resistance according to the value(s) in the table below.
Resistance:
