Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Lexus Truck
>>
2008
>>
RX 350 FWD V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Service and Repair
>>
Removal and Replacement
>>
Components
Components

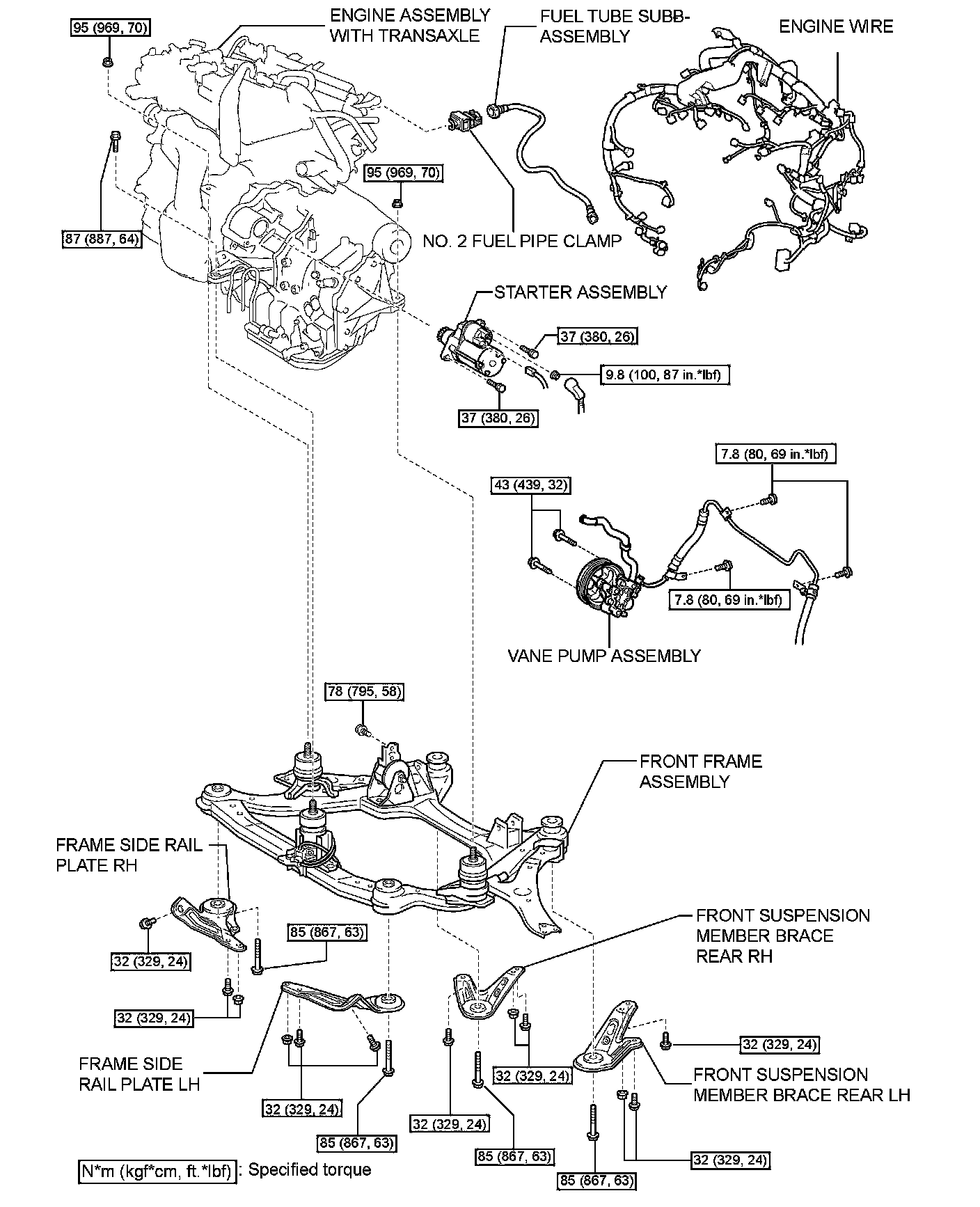

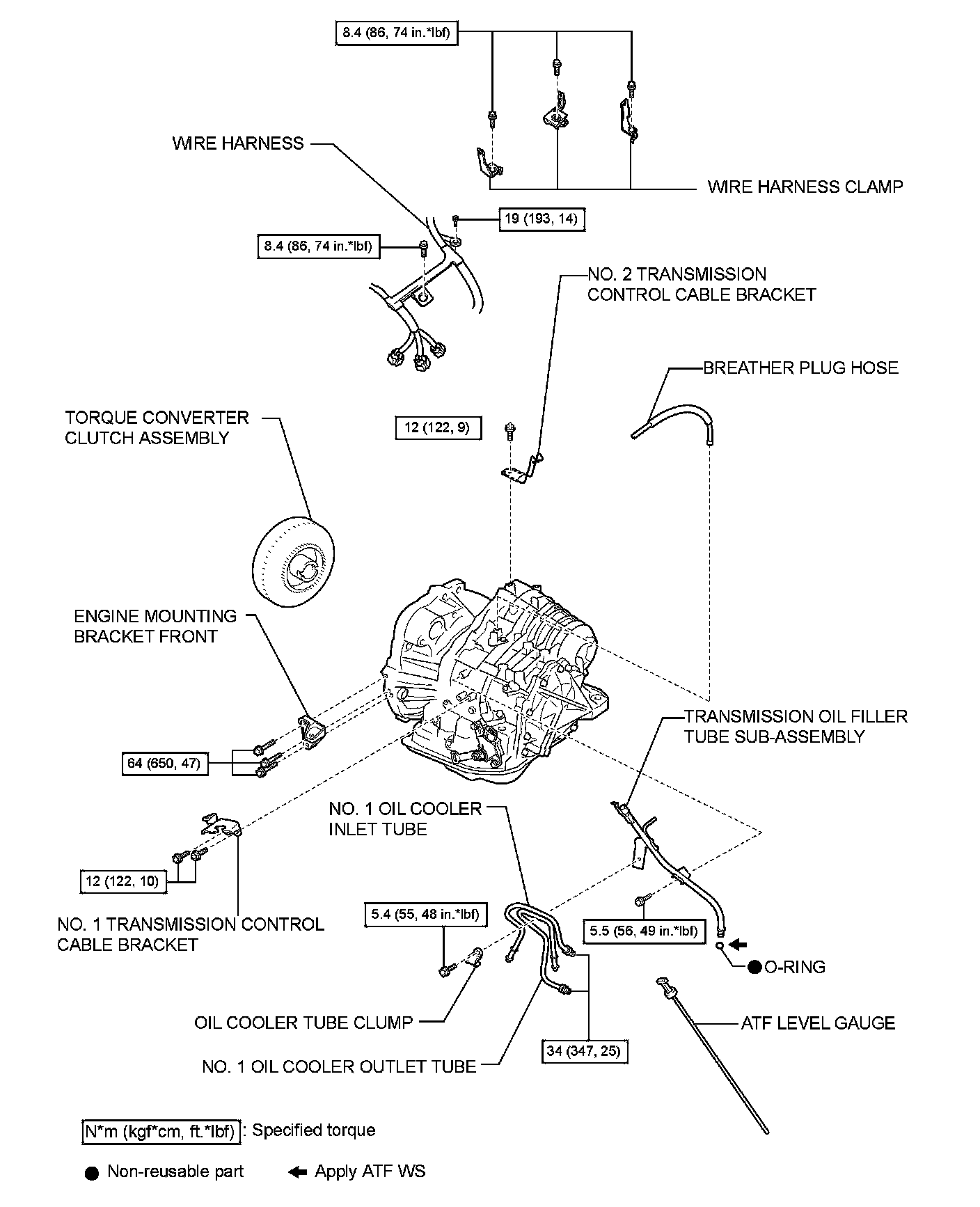

U151E AUTOMATIC TRANSAXLE ASSEMBLY: COMPONENTS
COMPONENTS
