Disassembly

AIR CONDITIONING: BLOWER UNIT: DISASSEMBLY

DISASSEMBLY

1. REMOVE AIR INLET SERVO MOTOR






(a) Remove the 3 screws and air inlet servomotor.
2. REMOVE COOLING UNIT MOTOR WITH FAN SUB-ASSEMBLY






(a) Remove the 3 screws and cooling unit motor with fan sub-assembly.
3. REMOVE BLOWER MOTOR CONTROL






(a) Remove the 2 screws and blower motor control.

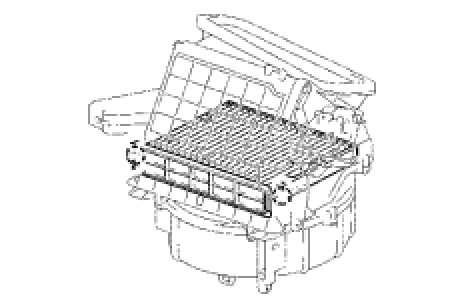

4. REMOVE CLEAN AIR FILTER






(a) Release the 2 claws and remove the air filter sub-assembly.






(b) Remove the air refiner element from the air filter cover plate.
