Removal

BRAKE: BRAKE PEDAL: REMOVAL

REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE LH Removal

2. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER Removal

3. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY Removal

4. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Removal

5. REMOVE COMBINATION METER ASSEMBLY Removal

6. REMOVE BRAKE PEDAL RETURN SPRING
(a) Remove the brake pedal return spring.

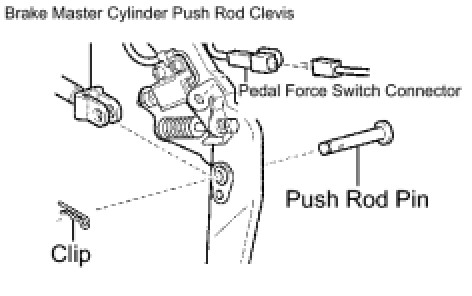

7. REMOVE PUSH ROD PIN






(a) Remove the clip and the push rod pin.
(b) Disconnect the stop light switch connector.
(c) Disconnect the pedal force switch connector and release the clip of the pedal force switch.

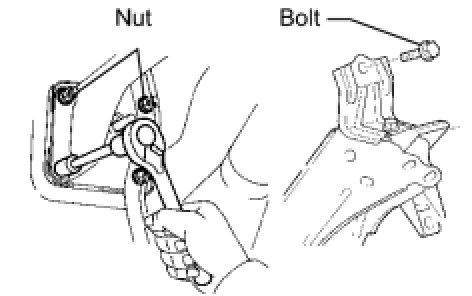

8. REMOVE BRAKE PEDAL SUPPORT ASSEMBLY






(a) Remove the bolt, the 4 nuts and the brake pedal support assembly.
9. REMOVE BRAKE PEDAL SUB-ASSEMBLY
(a) Remove the nut, the brake pedal shaft and the brake pedal sub-assembly from the brake pedal support sub-assembly.
