BRAKE CONTROL: FRONT SPEED SENSOR: INSTALLATION

INSTALLATION

1. INSTALL FRONT SPEED SENSOR

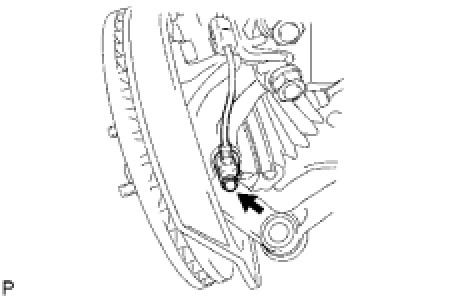

(a) Install the speed sensor front with the bolt.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)
NOTE: Prevent foreign matter from attaching to the sensor tip.

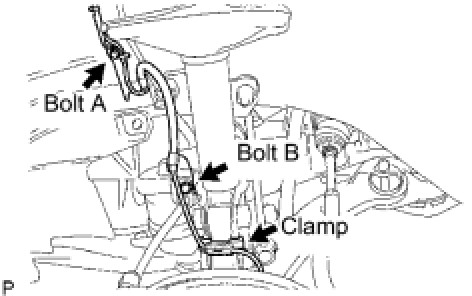

(b) Install the speed sensor front with the 2 bolts and the clamp.
Bolt A - Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf)
Bolt B - Torque: 29 Nm (296 kgf-cm, 21 ft-lbf)
NOTE: Do not twist the sensor wire when installing the sensor.

(c) Connect the speed sensor connector.
2. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH Installation

3. INSTALL FRONT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft-lbf)
4. CHECK ABS SPEED SENSOR SIGNAL Test Mode Procedure
