Installation

WIPER / WASHER: WIPER SWITCH: INSTALLATION

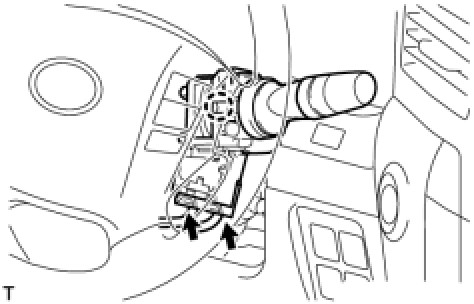

1. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY






(a) Attach the claw to install the windshield wiper switch assembly.
(b) Connect the 2 connectors.
2. INSTALL UPPER STEERING COLUMN COVER On-Vehicle Inspection

3. INSTALL LOWER STEERING COLUMN COVER On-Vehicle Inspection
