Installation

WINDOW / GLASS: QUARTER WINDOW GLASS: INSTALLATION
HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.
- A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

1. INSTALL QUARTER WINDOW ASSEMBLY LH





(a) Using a brush or sponge, apply primer M to the exposed part of the vehicle body.
NOTICE:
- Allow the primer coating to dry for 3 minutes or more.
- Throw away any leftover primer.
- Do not apply too much primer.

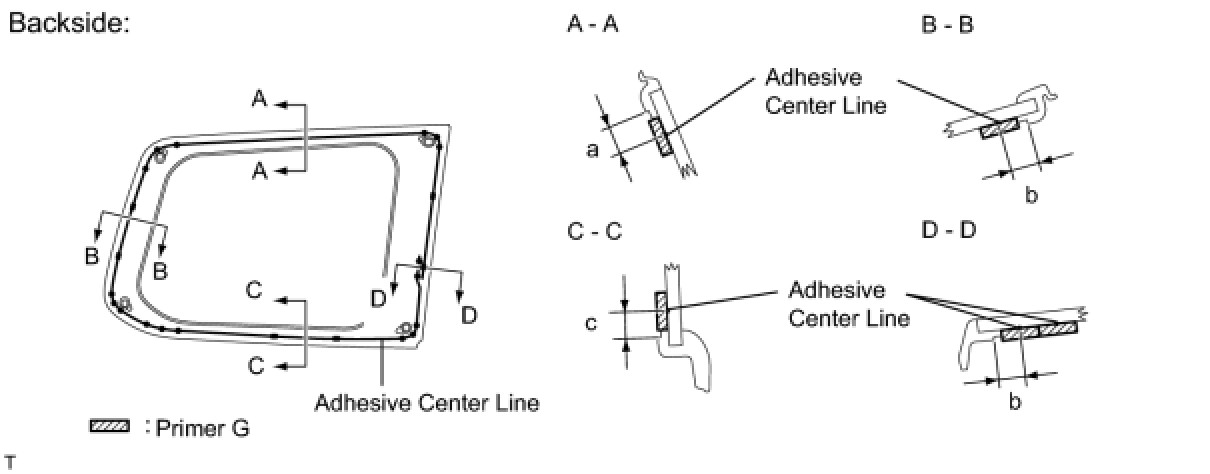

(b) Using a brush or sponge, apply Primer G to the contact surface of the glass.

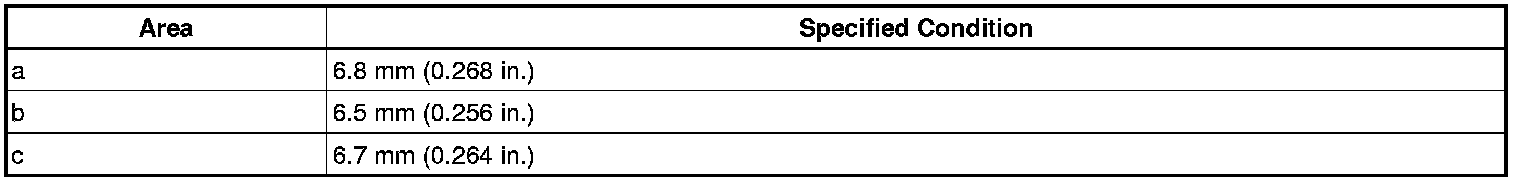

Standard:





HINT:
If primer is applied to an area that is not specified, wipe off the primer with non-residue solvent before it dries.
NOTICE:
- Allow the primer to dry for 3 minutes or more.
- Throw away any leftover primer.
- Do not apply too much primer.

(c) Apply adhesive to the quarter window glass.
Adhesive:
Toyota Genuine Windshield Glass Adhesive or equivalent
(1) Cut off the tip of the cartridge nozzle as shown in the illustration.

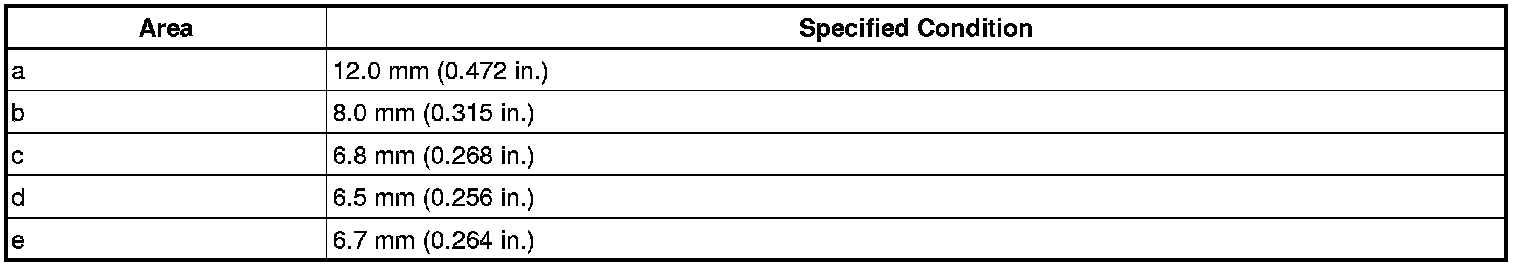

Standard:





HINT:
After cutting off the tip, use all adhesive within the time written in the table below.

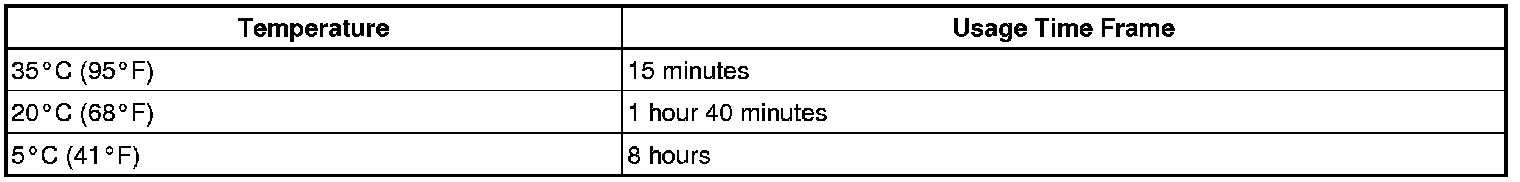

Usage Time Frame:





(2) Load the sealer gun with the cartridge.

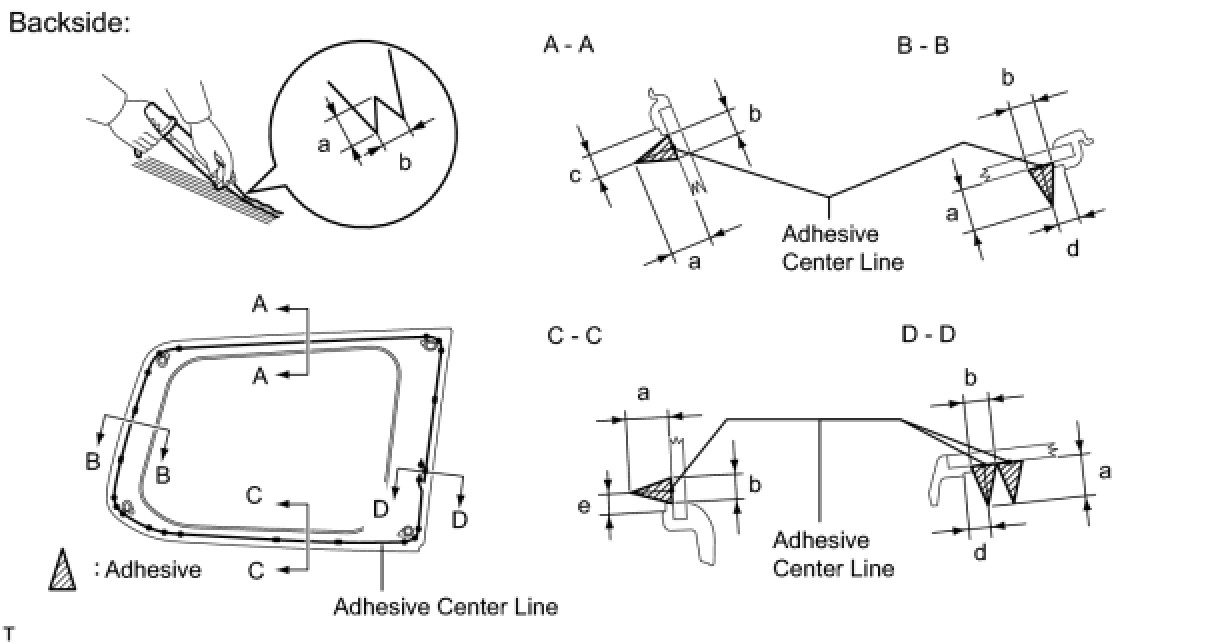

(3) Apply adhesive to the quarter window glass as shown in the illustration.
(d) Install the quarter window glass to the vehicle body.
(1) Hold the quarter window glass in place securely with protective tape or equivalent until the adhesive hardens.
NOTICE:
- Allow the primer coating to dry for 3 minutes or more.
- Check the clearance between the body and glass.
(2) Lightly press the front surface of the glass to ensure a close fit.





(3) Using a scraper, remove any excess or protruding adhesive.
HINT:
Apply adhesive onto the glass rim.
NOTICE:
Do not drive the vehicle within the time written in the table below.

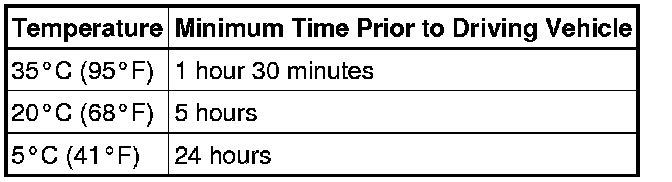

Minimum Time:






(e) LH Side:
Connect the connector.
(f) RH Side:
Connect the 2 connectors.
2. CHECK FOR LEAK AND REPAIR
(a) Conduct a leak test after the adhesive has completely hardened.
(b) Seal any leaks with auto glass sealer.
3. INSTALL ROOF HEADLINING ASSEMBLY
(a) Install the roof headlining Installation.
