Installation

JF2A TRANSFER / 4WD / AWD: CENTER DIFFERENTIAL LOCK SWITCH: INSTALLATION

1. INSTALL CENTER DIFFERENTIAL LOCK SWITCH

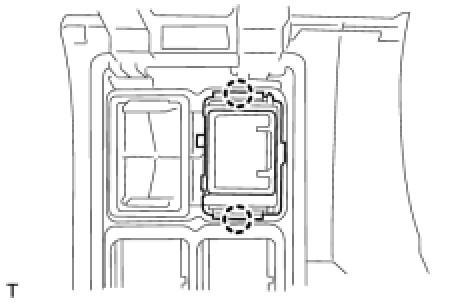

(a) Attach the 2 claws to install the switch.
2. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL Installation

3. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

4. INSTALL NO. 1 SWITCH HOLE BASE Installation

5. INSTALL INSTRUMENT SIDE PANEL LH Installation

6. INSTALL INNER NO. 1 INSTRUMENT PANEL BRACKET COVER LH Installation

7. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH Installation
