Home >> Lexus Truck >> 2008 >> LX 570 V8-5.7L (3UR-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Differential Carrier >> Service and Repair >> Removal and Replacement >> Front Differential Carrier Assembly >> Components

Components

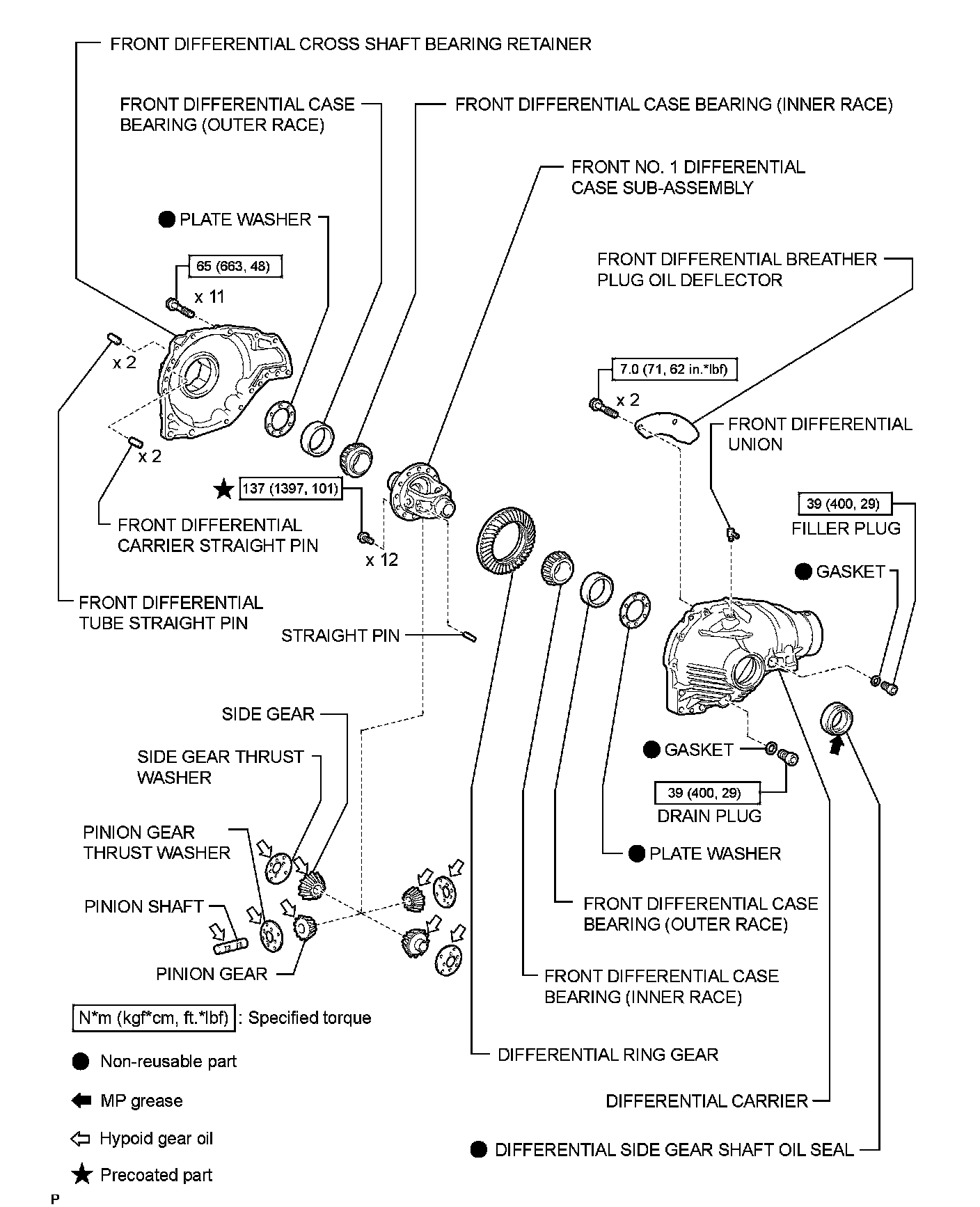

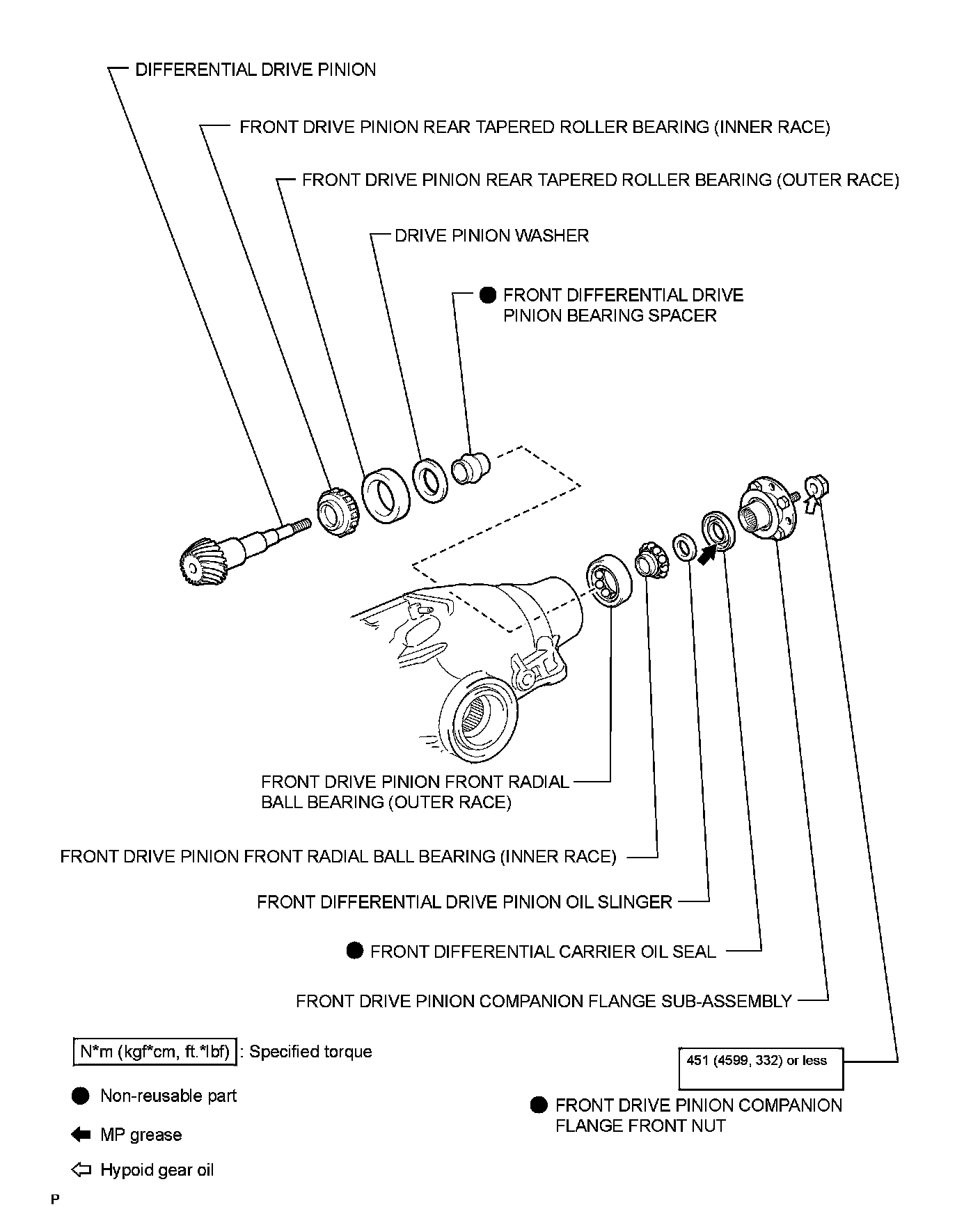

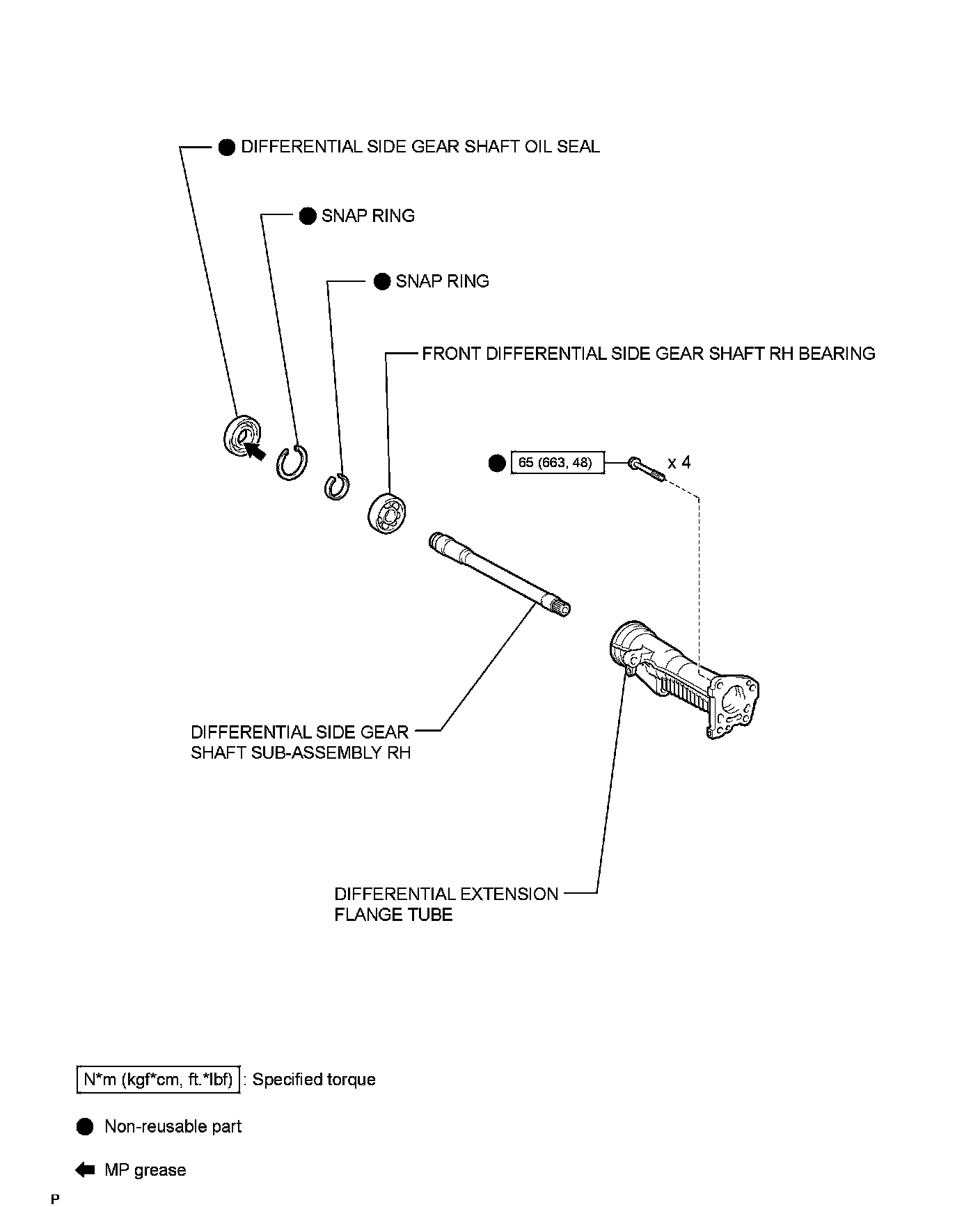

AXLE AND DIFFERENTIAL: FRONT DIFFERENTIAL CARRIER ASSEMBLY: COMPONENTS
