Valve Body: Testing and Inspection

AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: VALVE BODY ASSEMBLY: INSPECTION

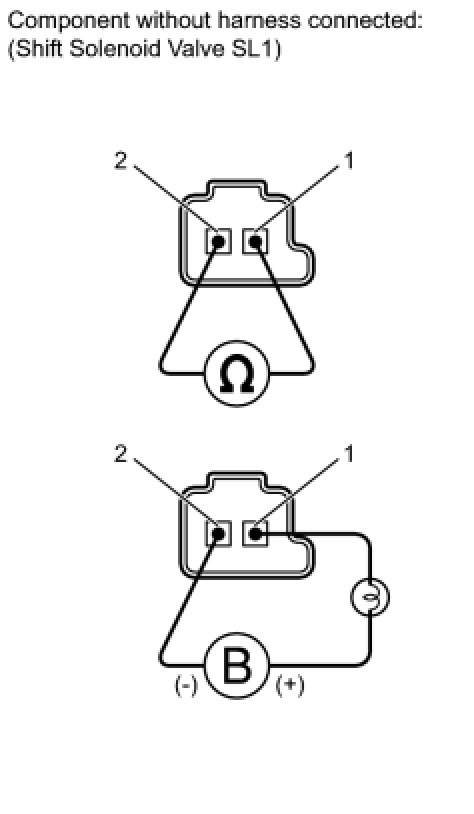

1. INSPECT SHIFT SOLENOID VALVE SL1
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:

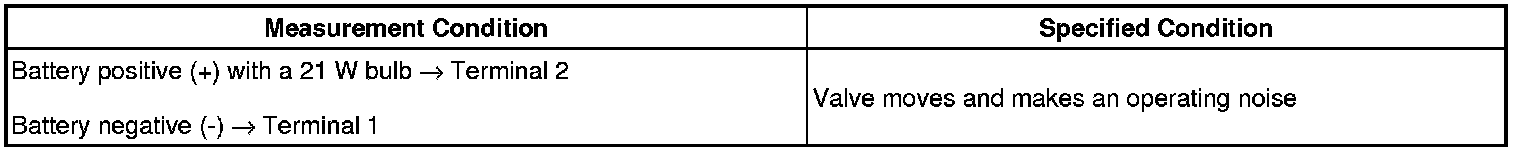

(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.
OK:





If the result is not as specified, replace the solenoid valve.






2. INSPECT SHIFT SOLENOID VALVE S1
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:

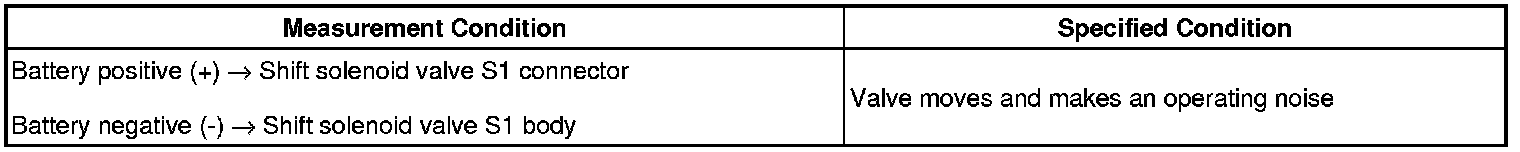

(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.
OK:





If the result is not as specified, replace the solenoid valve.






3. INSPECT SHIFT SOLENOID VALVE S2
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:

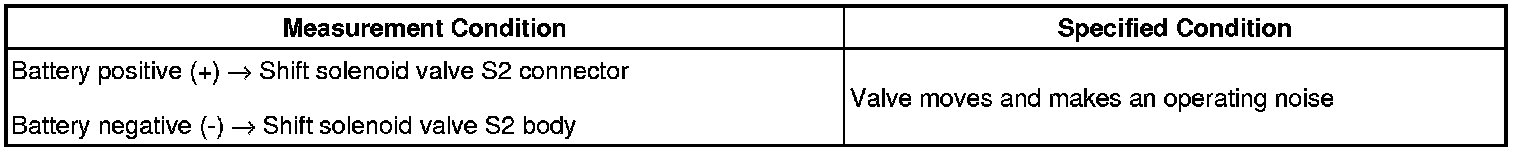

(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.
OK:





If the result is not as specified, replace the solenoid valve.






4. INSPECT SHIFT SOLENOID VALVE S3
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.
OK:





If the result is not as specified, replace the solenoid valve.






5. INSPECT SHIFT SOLENOID VALVE S4
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.
OK:





If the result is not as specified, replace the solenoid valve.

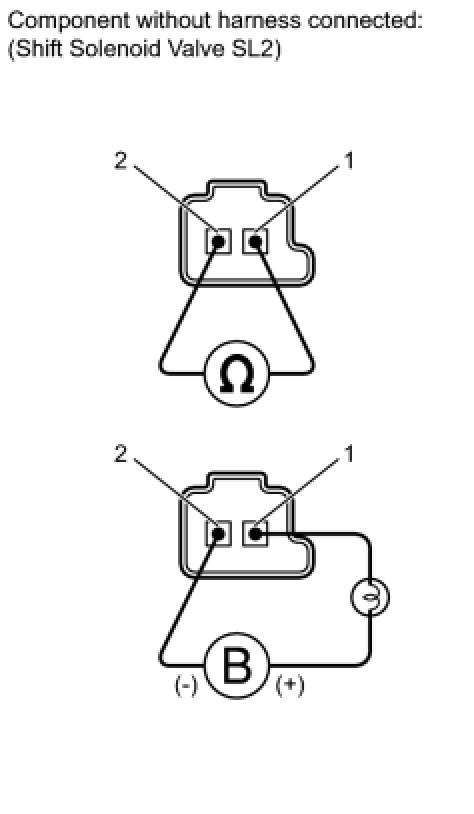

6. INSPECT SHIFT SOLENOID VALVE SL2
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.
OK:





If the result is not as specified, replace the solenoid valve.

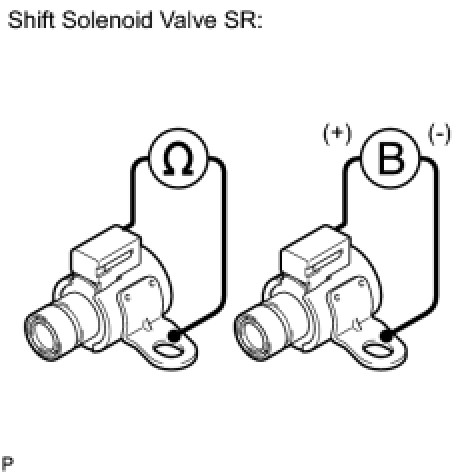

7. INSPECT SHIFT SOLENOID VALVE SR
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:

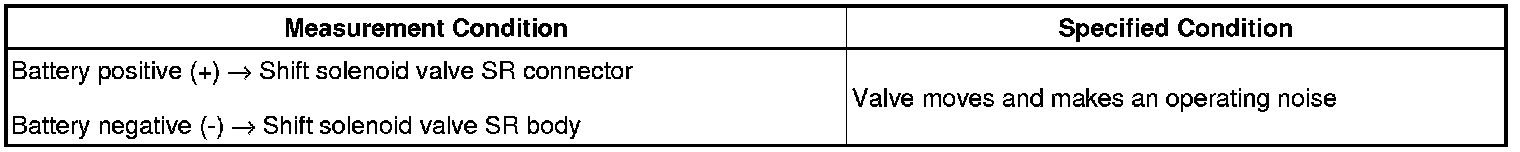

(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.
OK:





If the result is not as specified, replace the solenoid valve.






8. INSPECT SHIFT SOLENOID VALVE SLT
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.
OK:





If the result is not as specified, replace the solenoid valve.

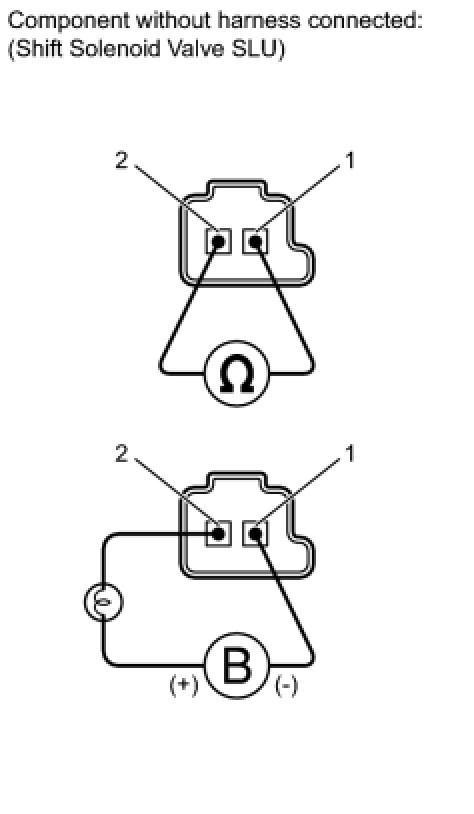

9. INSPECT SHIFT SOLENOID VALVE SLU
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:

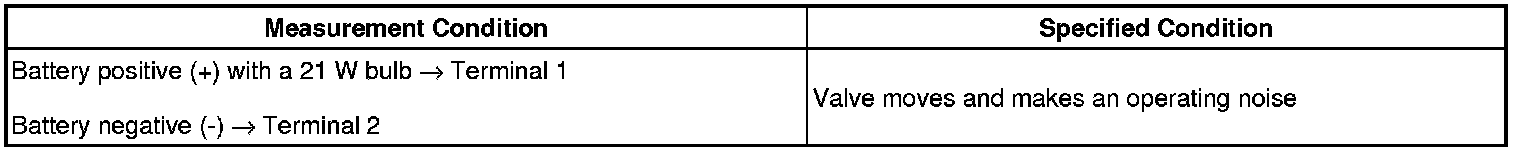

(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.
OK:





If the result is not as specified, replace the solenoid valve.
